ASTM N10276 RF Weld Neck Flange 3" 300# High Performance Alloy Steel Flanges

Large Image : ASTM N10276 RF Weld Neck Flange 3" 300# High Performance Alloy Steel Flanges

Product Details:

Place of Origin:	SHANGHAI CHINA
Brand Name:	TOBO
Certification:	ISO/TUV/SGS
Model Number:	Alloy Steel Flanges

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCs
Price:	negotiable
Packaging Details:	Wooden case or as request
Delivery Time:	15-30 workdays
Payment Terms:	T/T, Western Union
Supply Ability:	10Ton/Month

Contact Now

ASTM N10276 RF Weld Neck Flange 3" 300# High Performance Alloy Steel Flanges

Description

Product Name:	Alloy Steel Flanges	Connectiontype:	Welded Or Threaded
Materials:	NO 6625	Width:	3mm-2500mm Or As Required
Thickness:	Customized	Usage:	Oil Gas Sewage Transport
Surface Treatment:	Heat Treatment,Galvanized,customize	Standard Or Nonstandard:	ASME 16.5
Face Type:	RF, FF, RTJ	Type:	Welding Neck
Shape:	Round	Port:	Shanghai, Ningbo, Etc.
Standard:	ASME/ANSI B16.5	Head Code:	Round
Types:	WN Flange	Pressure:	150#~2500#
Highlight:	ASTM N10276 weld neck flange , 3 inch 300# alloy steel flange , high performance RF flange

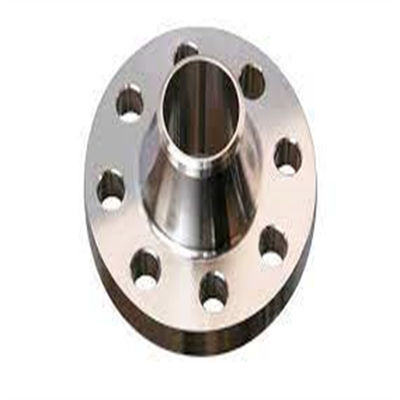

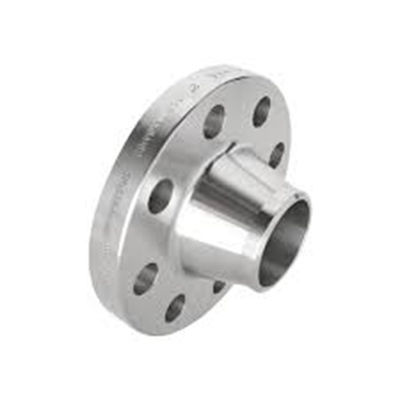

ASTM N10276 RF Weld Neck Flange 3" 300# High Performance Alloy Steel Flanges

Product Description

These high performance weld neck flanges are made from ASTM N10276 nickel‑based alloy steel, featuring excellent corrosion resistance, high temperature stability and superior mechanical properties. Designed with RF raised face and Class 300 pressure rating, the 3‑inch flanges ensure tight sealing, high pressure resistance and long service life in harsh industrial environments. They are widely used in corrosive piping systems where reliability and durability are critical.

Key Parameters

Material: ASTM N10276 Alloy Steel
Type: WN Weld Neck Flange
Face Type: RF Raised Face
Size: 3 Inch
Pressure Class: 300#
Standard: ASME B16.5
Surface: Passivation, anti‑rust coating
Features: High performance, corrosion resistant, high strength, leak‑proof
Application: Chemical, petrochemical, offshore, marine and high‑corrosion piping systems

Application

Widely applied in chemical processing, refineries, offshore platforms, desalination plants, pharmaceutical and environmental engineering piping systems. Suitable for pipelines conveying acids, alkalis, chloride media and other corrosive fluids.

Product Advantages

Premium ASTM N10276 alloy provides excellent resistance to oxidation, pitting and stress corrosion
Weld neck structure reduces stress concentration and improves pipeline integrity
RF raised face design ensures reliable sealing under pressure and vibration
Class 300 pressure rating for stable performance in medium‑to‑high pressure systems
Precision machining ensures accurate dimensions and easy installation
Long service life in extreme working conditions

Installation & Use

Check flange surface, sealing face and bore for defects before installation; clean welding ends thoroughly; align with matching pipe and perform professional welding; tighten bolts evenly and symmetrically; conduct hydrostatic pressure test after installation.

Precautions

Store in dry, ventilated and non‑corrosive environment; avoid collision and scratch during transportation and handling; use within rated temperature and pressure; adopt special welding technology for nickel‑based alloy materials.

Delivery

Ship within 7–15 working days after order confirmation; shipped by sea, air or express; logistics tracking number provided.

Payment Terms

T/T, L/C, Western Union, PayPal; 30% deposit, balance before shipment.

Packing

Anti‑rust film, foam protection and plywood wooden case packing; shockproof, moisture‑proof and durable for long‑distance transportation.

Product Description

Product Name	Carbon steel / Stainless steel / Alloy Flanges
Standard	ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type	WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer) Special Flange: According to the drawing Picture
Materials	Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L Stainles steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H Duplex Steel: ASTM A182 F51, F53, F55 Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91 Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....
Dimension	(150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300
Marking	Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement
Test	Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment
Brand	TOBO
Certificates	API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Advantages	1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 3. 15 years' QC team service & sales management API& ASTM trained engineers. 4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.)

ASTM N10276 RF Weld Neck Flange 3" 300# High Performance Alloy Steel Flanges 0

ASTM N10276 RF Weld Neck Flange 3" 300# High Performance Alloy Steel Flanges 1

ASTM N10276 RF Weld Neck Flange 3" 300# High Performance Alloy Steel Flanges 2

FAQ

Are you a manufacturer?
Yes, we are a professional flange and pipe fittings manufacturer.
Can you provide MTC?
Yes, full material test certificates are available.
Do you accept custom sizes?
Yes, custom sizes, classes and face types are supported.
