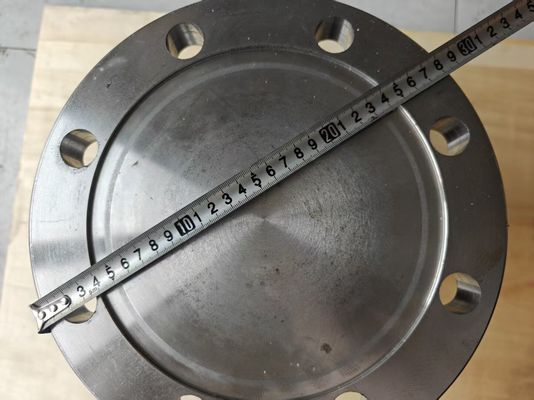

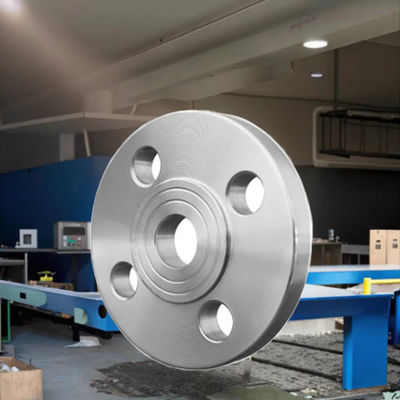

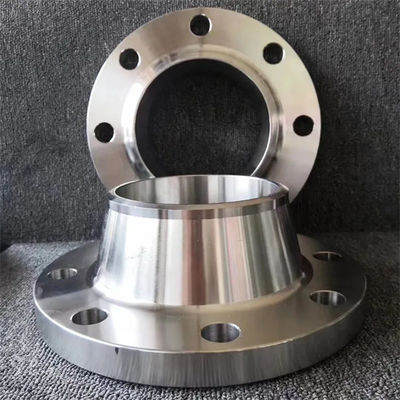

High Safety Margin Alloy Steel Flanges ANSI B16.5 DN80 Class 150
1. Product Description
An Alloy Steel Flange is a piping component made from alloy steel used to connect pipes, valves, pumps, pressure vessels, and other equipment to form a complete piping system. It creates a detachable, sealed, and pressure-bearing connection point by securing two flange faces with bolts and a gasket between them. Its core value lies in its ability to withstand high temperatures, high pressure, and extreme operating conditions, making it a critical foundation component in heavy industries like power generation, petrochemicals, and oil & gas.
2. Key Product Parameters
Material Grade: ASTM A182 F11 (1.25Cr-0.5Mo), F22 (2.25Cr-1.0Mo), F91 (9Cr-1.0Mo-V), A350 LF2 (for low-temperature service), etc.
Pressure Class:
ASME Standard: Class 150, 300, 600, 900, 1500, 2500.
EN/GB Standard: PN6, PN10, PN16, PN25, PN40, PN64, PN100.
Nominal Diameter:
ASME Standard: NPS 1/2" to 24" (ASME B16.5), 26" to 60" (ASME B16.47).
EN/GB Standard: DN15 to DN600 and above.
Facing Type: Raised Face (RF), Flat Face (FF), Ring-Type Joint (RTJ), Male-and-Female (M/F), Tongue-and-Groove (T/G).
Manufacturing Standard: ASME B16.5, ASME B16.47, EN 1092-1, GB/T 9112~9124, etc.
Connection Type: Weld Neck (WN), Slip-On (SO), Socket Weld (SW), Threaded (Thd), Blind (BL), etc.
3. Product Advantages
Exceptional Mechanical Properties: Alloying elements (like Chromium, Molybdenum, Vanadium) provide higher strength, toughness, and creep resistance.
Excellent High-Temperature Pressure Resistance: Maintains high strength at elevated temperatures, resisting deformation or rupture.
Superior Corrosion & Oxidation Resistance: Especially suitable for services with corrosive media or high-temperature oxidation.
Long Service Life: With correct selection and installation, it can operate stably for decades, reducing the total cost of ownership.
High Safety & Reliability: Manufactured and inspected in strict compliance with international standards, ensuring system safety under extreme conditions.
High Safety Margin Alloy Steel Flanges ANSI B16.5 DN80 Class 150
|
item
|
value
|
|
place of origin
|
China
|
|
|
Shanghai
|
|
brand name
|
TOBO
|
|
model number
|
Incoloy800
|
|
Name
|
METAL
|
|
Material
|
Alloy Steel A234 Grade WP 1
|
|
Type
|
WN
|
|
Color
|
Nature
|
|
Shape
|
Round Shape
|
|
MOQ
|
1 Piece
|
|
Size
|
Customized
|
|
Pressure
|
300# 1500#
|
|
Product name
|
]Alloy Steel Flange
|
|
Surface
|
Customer
|
1,Are you trading company or manufacturer ?
We are manufacturer ,You can see the Alibaba certification.
2, How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4, What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
