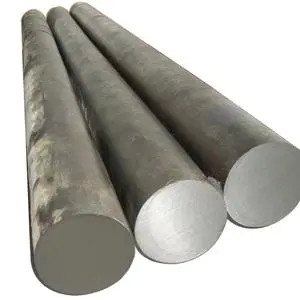

Steel Round Bar 15-5PH Corrosion-Resistant Forged Precipitation Hardening Steel Bars SAE AMS 5659S-2016
Product Decription
Specification:
15-5PH is a martensitic precipitation-hardened stainless steel developed on the basis of 17-4PH. Compared with 17-4PH, the grade reduces the content of chromium and copper and increases the content of nickel.
Therefore, after heat treatment, the formation probability of ferrite can be effectively reduced and the aggregation caused by excessive dispersion strengthening phase can be reduced.
In addition to high strength, the outstanding advantages of this steel are high transverse toughness and good deformation properties.
This grade is mainly used in 300°C below the requirements of high strength, good toughness, but also requires good corrosion resistance of the service environment, such as high-strength forgings, high-pressure system valve parts, aircraft engine parts and fasteners.
OD: 10-500mm
Length: as customer's requirements
| 15-5PH Chemical element content (%) |
| Ingredient |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Cu |
Mo |
More |
| Min |
- |
- |
- |
- |
- |
14 |
3.5 |
2.5 |
- |
Nb:5C~0.45 |
| Max |
0.07 |
1 |
1 |
0.03 |
0.015 |
15.5 |
5.5 |
4.5 |
0.5 |
| 15-5PH Mechanical properties |
| Heat treatment |
Tensile strength |
Yield point |
Elongation / elongation |
Shrinkage |
| σb |
σs |
δ |
ψ |
| Mpa |
Mpa |
% |
% |
| H900 |
≥1310 |
≥1172 |
≥10 |
≥35 |
| H925 |
≥1172 |
≥1069 |
≥10 |
≥38 |
| H1025 |
≥1069 |
≥1000 |
≥12 |
≥45 |
| H1075 |
≥1000 |
≥862 |
≥13 |
≥45 |
| H1100 |
≥965 |
≥793 |
≥14 |
≥45 |
| H1150 |
≥931 |
≥724 |
≥16 |
≥50 |
Fetures:
1) All products are made of high-quality imported raw materials.
2) Our products are certified by ISO9001:2008 authentication quality systems.
3) Excellent high temperature strength and work-hardening
Delivery&packing
Package: In wooded cases , bundles, pallets or according to clients' requirements
Delivery time: stock-10 days after confirming order, detail delivery date should be decided according to production season and order quantity. Generally in 15-35 workdays.
Port: Tianjin port, Shanghai port and the other main ports in China.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-15 days if the goods are in stock. or it is 15-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
