Product Details:
|
| Product Name: | Spectacle Blind Flange | Product Name: | Paddle Blank |
|---|---|---|---|
| Material: | ASTM A815 UNS S32520 | Application: | Petrochemicals |
| Packing: | Wooden Case | Technics: | Froged |
| Usage: | Flow Control | Certificate: | MTC |

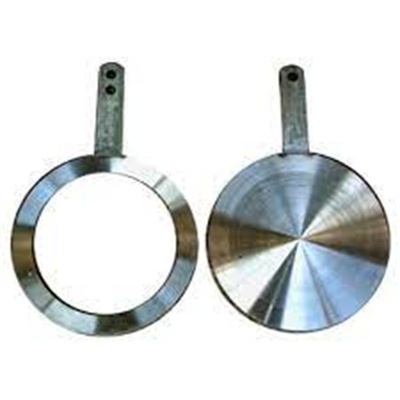

Duplex Stainless Steel Multi-Purpose Forged Flange Paddle Blank ASTM A815 UNS S32520 CL150
| Product Name | Carbon steel / Stainless steel / Alloy Flanges |
| Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Type | WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer) Special Flange: According to the drawing Picture |
| Materials |
Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70.... |
| Dimension | (150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300 |
| Marking | Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment |
| Brand | TOBO |
| Certificates | API, ISO, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Advantages |
1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.) |
|
Product Name |
Spectacle Blind Flange |
|
Standard |
ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, 7S-15, 7S-43, 605, EN1092 |
|
Type |
Spectacle Blind Flange Special Flange: According to the drawing Picture |
|
Materials |
Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675, Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Stainless steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8
Copper Alloy:ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718
Inconel Alloy Steel:ASTMAB564, NO8800/Alloy800, NO8810/Alloy800H, NO8811/Alloy 800HT
Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70.... |
|
Dimension |
(150#,300#,600#): DN15-DN1500 |
|
Marking |
Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement |
|
Test |
Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement |
|
Brand |
TOBO |
|
Certificates |
3.1. (Any third party certificate should be clarified before order) |
