Product Details:
|
| Brand: | Metal | Size: | Customized |
|---|---|---|---|
| Product Name: | Alloy Steel Flanges | Standard: | EN1092-1 |
| Head Code: | Round | Surface: | Paint Spraying |
| Technics: | Casting | OD: | 15mm-6000mm |

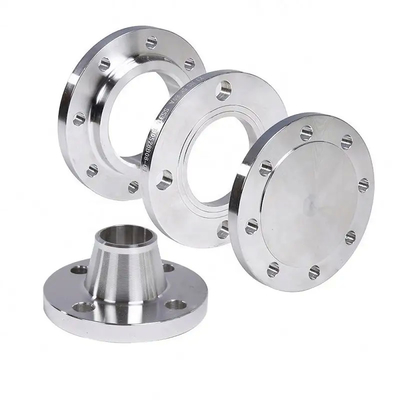

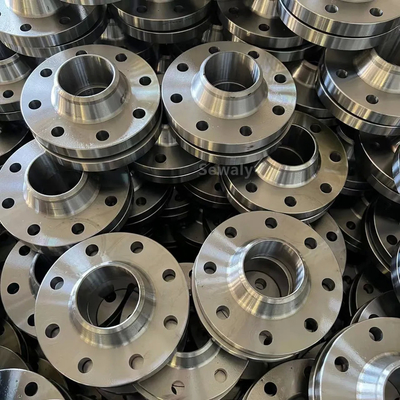

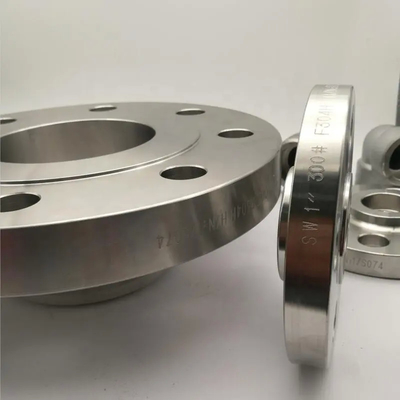

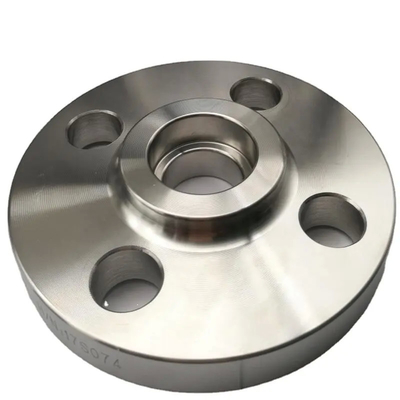

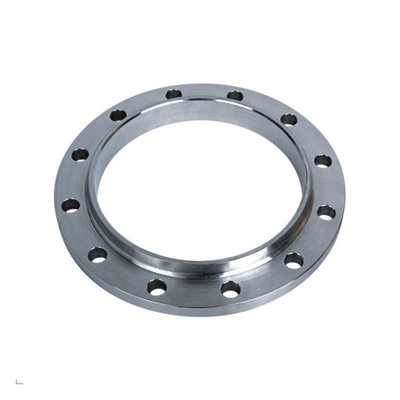

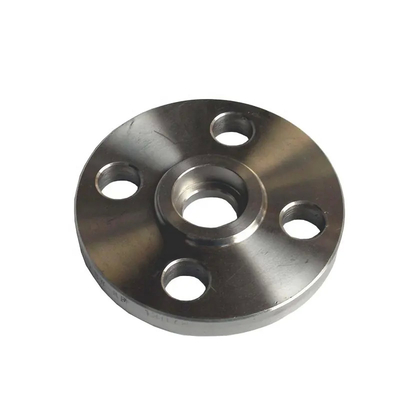

EN1092-1 Alloy Steel Flanges A182 F11 RF FF WN Flange 1 DN15 SCH40S 2500#
| Type | Weld neck flange, slip on flange, blind flange, tube sheet, threaded flange, |
| Socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange. | |
| OD | 15mm-6000mm |
| Pressure | 150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc. |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, |
| SCH80, SCH160, XXS and etc. | |
| Material | Stainless steel:A182F304/304L, A182 F316/316L, A182F321, A182F310S, |
| A182F347H,A182F316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, | |
| 254Mo and etc. | |
| Carbon steel:A105, A350LF2, Q235, St37, St45.8, A42CP, E24 , A515 Gr60, A515 Gr 70 | |
| Duplex stainless steel:UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , | |
| UNS32760, 1.4462,1.4410,1.4501 and etc. | |
| Pipeline steel:A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc. | |
| Nickel alloy:inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, | |
| C22, C-276, Monel400, Alloy20 etc. | |
| Cr-Mo alloy:A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc. | |
| Application | Petrochemical industry;avation and aerospace industry;pharmaceutical industry; |
| gas exhaust;power plant;ship building;water treatment,etc. | |
| Advantages | ready stock,faster delivery time;available in all sizes,customized;high quality |
Stainless steel, also known as inox or corrosion-resistant steel (CRES), is an alloy of iron that is resistant to rusting and corrosion. It contains at least 10.5% chromium and usually nickel, and may also contain other elements, such as carbon, to obtain the desired properties. Stainless steel's resistance to corrosion results from the chromium, which forms a passive film that can protect the material and self-heal in the presence of oxygen.
The alloy's properties, such as luster and resistance to corrosion, are useful in many applications. Stainless steel can be rolled into sheets, plates, bars, wire, and tubing. These can be used in cookware, cutlery, surgical instruments, major appliances, vehicles, construction material in large buildings, industrial equipment, and storage tanks and tankers for chemicals and food products.
The biological cleanability of stainless steel is superior to both aluminium and copper, and comparable to glass. Its cleanability, strength, and corrosion resistance have prompted the use of stainless steel in pharmaceutical and food processing plants.
Different types of stainless steel are labeled with an AISI three-digit number. The ISO 15510 standard lists the chemical compositions of stainless steels of the specifications in existing ISO, ASTM, EN, JIS, and GB standards in a useful interchange table.
A. 20 + years of production experience at your service.
B. The fastest delivery
C. The lowest price
D. Most comprehensive standards and materials for your choice.
E. 100% export.
F. Our products export to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
Packaging Details: Pallet/Wooden Case or as per your Specification
Delivery Detail: Shipped in 30 days after payment
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
