Product Details:
|
| Material: | Alloy Steel | Size: | Customized |
|---|---|---|---|
| Connection: | Welding | Head Code: | Round |
| Technics: | Casting | OD: | 15mm-6000mm |
| Type: | Weld Neck Flange | Type Weld Neck Flange, Slip On Flange, Blind Flange, Tube Sheet, Threaded Flange, Socket Weld Flange: | ANSI B16.5 |

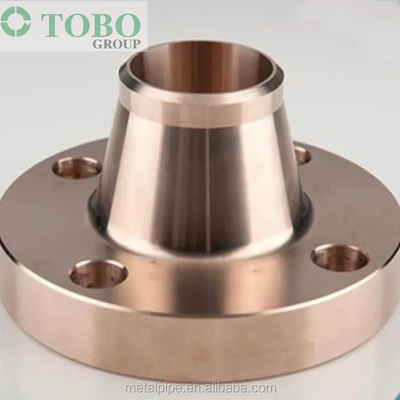

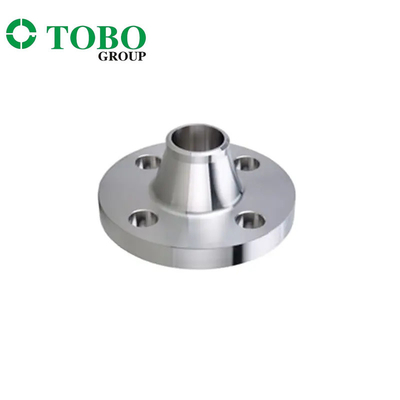

Alloy Steel Flanges A182 F11 RF FF WN Flange DN15 SCH 80 Class 2500 ASME B16.5
| Type | Weld neck flange, slip on flange, blind flange, tube sheet, threaded flange, |
| Socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange. | |
| OD | 15mm-6000mm |
| Pressure | 150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc. |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, |
| SCH80, SCH160, XXS and etc. | |
| Material | Stainless steel:A182F304/304L, A182 F316/316L, A182F321, A182F310S, |
| A182F347H,A182F316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, | |
| 254Mo and etc. | |
| Carbon steel:A105, A350LF2, Q235, St37, St45.8, A42CP, E24 , A515 Gr60, A515 Gr 70 | |
| Duplex stainless steel:UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , | |
| UNS32760, 1.4462,1.4410,1.4501 and etc. | |
| Pipeline steel:A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc. | |
| Nickel alloy:inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, | |
| C22, C-276, Monel400, Alloy20 etc. | |
| Cr-Mo alloy:A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc. | |
| Application | Petrochemical industry;avation and aerospace industry;pharmaceutical industry; |
| gas exhaust;power plant;ship building;water treatment,etc. | |
| Advantages | ready stock,faster delivery time;available in all sizes,customized;high quality |
ASME/ANSI/DIN/GOST/BS EN RF/FF/RJ 150#-2500# Carbon Steel /Stainless Steel /Alloy Steel Forged WN/SO/Threaded/Plate/Socket/Blind Flange
1.Material:
Carbon steel A105/Rst37.2/C22.8/Q235 Stainless steel 304/304L,316/316L,321,ect.
2.Size:1/2"-48"
3.Pressure:150lbs-2500lbs PN0.6-PN16.0
4.Facing:RF/RJ/ FF
5.Standard:ANSI(ASME)16.5 16.47/DIN/JIS/UNI/...
6.Flanges of welding neck, socket welding, threaded, blind, slip on, lap joint are in accordance with ANSI 16.5 from 1/2" to 24" and classes 150 to 2500 (complete range).
7. Production process : raw material--cutting--heating--forging--heat treatment--maching--inspection.-washing-ex-working.
8. Certificate :ISO9001-2008
9. Used for : linepipe, heat exchanger, petroleum,chemical,power,gas,water,shipbuilding,construction,etc.
10.Blind, slip on, welding neck flanges are from 6 Bar to 40 Bar in accordance with DIN.
11.Flanges from 1/2" to 48" and up to 450 lbs are in accordance with BS10 Table D & Table E, BS Table F & Table H, BS Table J & Table K.
12.Flanges from 2kg to 210 kg are in accordance with JIS.
13.Flanges according to API 605/ASME B16.5/ASME B16.47
14.Depending on special purposes, flanges can be manufactured in different shapes and sizes
15. Excellent and high quality control.
1. 20 + years of production experience at your service.
2. The fastest delivery
3. The lowest price
4. Most comprehensive standards and materials for your choice.
5. 100% export.
6. Our products export to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
Packaging Details: Pallet/Wooden Case or as per your Specification
Delivery Detail: Shipped in 30 days after payment
