316L 304 Seamless Stainless Steel Pipe 300 Series Austenitic Stainless Steel Pipe Seamless Stainless Steel Tube

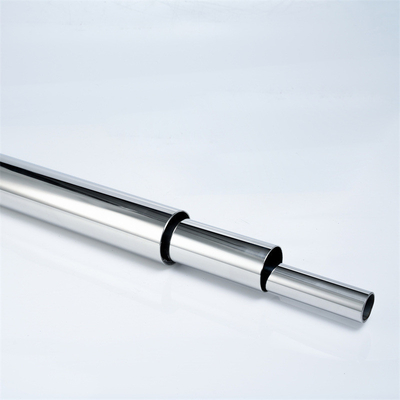

Large Image : 316L 304 Seamless Stainless Steel Pipe 300 Series Austenitic Stainless Steel Pipe Seamless Stainless Steel Tube

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	ISO/PED/TUV/SGS/LR/BV

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Depending on quantity
Packaging Details:	Standard export sea-worthy packing
Delivery Time:	25-30 days depending on quantity
Payment Terms:	L/C, T/T, Western Union,
Supply Ability:	300000pcs per month

Contact Now

316L 304 Seamless Stainless Steel Pipe 300 Series Austenitic Stainless Steel Pipe Seamless Stainless Steel Tube

Description

Standard:	JIS	Application:	Pharmaceutical And Chemical Fluid Equipment
Processing Service:	Bending, Welding, Decoiling, Punching, Cutting, Mouldin	Material:	SUS304/316L
Another Name:	Stainless Steel Pipes	Model Number:	1/2"-12"
Invoicing:	By Actual Weight	Suitable For:	Pharmaceutical And Chemical Fluid Equipment
High Light:	316L Seamless Stainless Steel Pipe , 300 Series Austenitic Stainless Steel Pipe , Pharmaceutical Seamless Stainless Steel Tube

316L 304 seamless stainless steel pipe 300 Series Austenitic Stainless Steel Pipe Seamless stainless steel tube

Product Description

Sanitary Tubing for Food, Beverage & Dairy Process Lines Tp316L Stainless Steel Seamless Pipe

Description & Name: AISI316L SUS316L Tp316L Stainless Steel Seamless Pipe

Standard:

ASTM A213, A269, A312, A511, A789, A790, A376, EN 10216-5, EN 10297,DIN 17456, DIN 17458,JISG3459, JIS GS3463, GS3467, JIS G3448,

GOST 9940, GOST 9941,

Material:TP316/316L/316H, 304/304L/304H, 321/321H, 317/317L, 347/347H, 309S, 310S, 2205, 2507, 904L (1.4301, 1.4306, 1.4948,

1.4401, 1.4404, 1.4571, 1.4541, 1.4833, 1.4878, 1.4550, 1.4462, 1.4438, 1.4845)

Nominal Dia: 1/2 "to 32" NB for seamless pipe

Schedules: 5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS

All dimensions are in accordance with ANSI B36.19 and ANSI B36.10

Size Range for tubing: OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)

Length:

30 m(Max) or as your requirement

Process:

Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube

Finish: Annealed & pickled, bright annealing, polished

Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end

Packing: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides

of tubes and suitably protected for sea-worthly delivery or as requested.

Inspection and Test Procedure
1	100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2	100% Dimension & Visual Examination
3	Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4	100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5	Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6	Straightness Test (optional)
7	Roughness Test (optional)
8	ntergranular Corrosion Test(optional)
9	Impact Test (optional)
10	Grain Size Determinations (optional)
	NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.

Size (Tube OD)	Part Number		Dimensions
Size (Tube OD)	304	316L	Wall Thickness	ID	Gauge
1/2"	A270P-304050	A270P-316050	0.065	0.370	16
3/4"	A270P-304075	A270P-316075	0.065	0.620	16
1"	A270P-304100	A270P-316100	0.065	0.870	16
1-1/2"	A270P-304150	A270P-316150	0.065	1.37	16
2	A270P-304200	A270P-316200	0.065	1.87	16
2-1/2"	A270P-304250	A270P-316250	0.065	2.37	16
3	A270P-304300	A270P-316300	0.065	2.87	16
4	A270P-304400	A270P-316400	0.083	3.834	14

Number of Tube Sticks Per Case
Size (Tube OD)	Piece Count	Total Footage
1"	15	300"
1-1/2"	15	300"
2"	15	300"
2-1/2"	15	300"
3"	10	200"
4"	5	100"

Additional Tube Specifications
Size (Tube OD)	Dimensions		Weight per Foot (lbs)	Burst Pressure (PSI)
Size (Tube OD)	Wall Thickness	Gauge	Weight per Foot (lbs)	Burst Pressure (PSI)
1/2"	0.065	16	0.30	10,833
3/4"	0.065	16	0.48	8,666
1"	0.065	16	0.66	9,750
1-1/2"	0.065	16	1.00	6,503
2"	0.065	16	1.35	4,875
2-1/2"	0.065	16	1.70	3,900
3"	0.065	16	2.05	3,248
4"	0.083	14	3.50	2,730
6"	0.109	14	5.29	1,820

Tube Tolerances
Part Number	O.D.	Wall	OD Tolerance	Wall Tolerance	Ovality Tolerance	Box Qty.	ASTM Standards
Part Number	O.D.	Wall	OD Tolerance	Wall Tolerance	Ovality Tolerance	Box Qty.	ASTM Standards
00507	0.5	0.065	+.002/-.008	+/-.008	*	300	A213/A270
00757	0.75	0.065	+.002/-.008	+/-.008	*	300	A213/A270
01007	1	0.065	+.002/-.008	+/-.008	*	300	A249/A269/A270
01507	1.5	0.065	+.002/-.008	+/-.008	*	300	A249/A269/A270
02007	2	0.065	+.002/-.011	+/-.008	*	300	A249/A269/A270
02507	2.5	0.065	+.002/-.011	+/-.008	*	300	A249/A269/A270
03007	3	0.065	+.003/-.012	+/-.008	*	200	A249/A269/A270
04007	4	0.083	+.003/-.015	+/-.010	*	100	A249/A269/A270
06007	6	0.109	+.030/-.030	+/-.010	*	20	A249/A269/A270

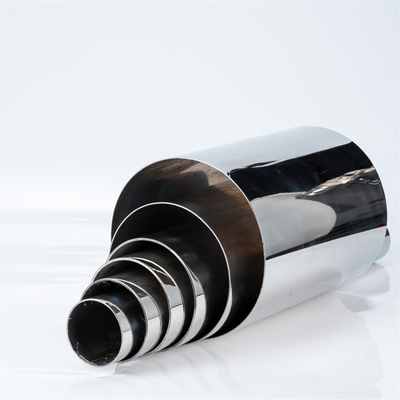

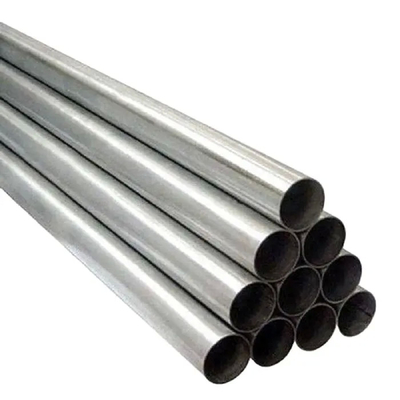

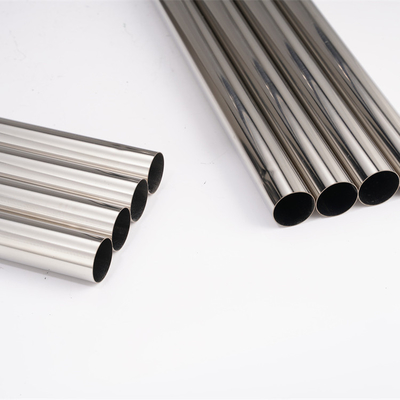

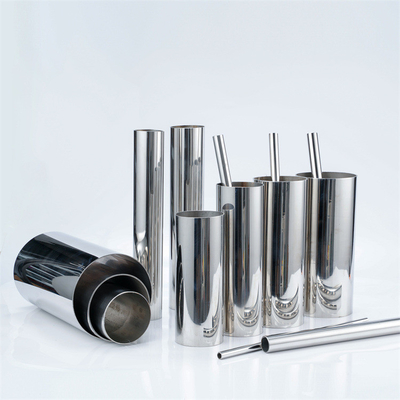

Details Images

Shape	Round, square, rectangular
Material	201,202,303, 303Cu,304,304L,316,316L,310S,316Ti,321,430,904L,ETC
Production Standards	ASTM A270, ASTM A269, ASTM A249, ASTM A778, ASTM A789, DIN 11850, EN 10357, EN 10217-7 and so on.
Usage	Food processing industry, boiler, heat exchanger bundle, condenser, evaporator, chemical industry, oil and gas industry and so on.
Size	Normal size: Outer diameter = 12.7-600mm; Thickness = 0.8-20 mm; Length = 6 -12m. Or as customer' s request.
Our Service	Free samples and OEM service are offered.

ASTM A213 Ferrite and austenitic alloy stainless steel pipe for boilers and heat exchangers steel pipe

Chemical Composition about stainless steel

ASTM A213 Ferrite and austenitic alloy stainless steel pipe for boilers and heat exchangers steel pipe

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please

contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.

A:  We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?

A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
