Product Details:
|
| Place Of Origin:: | China | Brand Name:: | TOBO |
|---|---|---|---|
| Model Number:: | FLG | Standard:: | ANSI, ASTM DIN EN BS JIS GOST Etc. |
| Surface Treatment:: | Cnc Machined | Process:: | Forged |
| Type:: | Weld Neck, Slip On, Blind, Threaded, Socket Weld, So On | Pressure:: | 150#-2500# |
| High Light: | 3" Welding Neck Flange,300 Lb Alloy Steel Flanges,Phonograph Striped Alloy Steel Flanges |
||
| Material | Carbon Steel | ASTM A105, LF2, CL1 / CL2 |
| 16MN,20# | ||
| Stainless Steel | ASTM A182, F304 / 304L, F316 / 316L,A182F317/317L,A182F310,F321,F347,316Ti | |
| Alloy Steel | ASTM A182 A182 F12,F11,F22,F5,F9,F91,F51,F53,F55,F60,F44,F304H,F316H,F317H,F321H,F347H,INCONEL 600,625,825,etc. | |
| Standard | ANSI B16.5 | Class 150 Flanges-Class 2500 Flanges |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar 63Bar | |
| JIS | 5K Flanges-30K Flanges | |
| EN1092-1 | 6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar | |

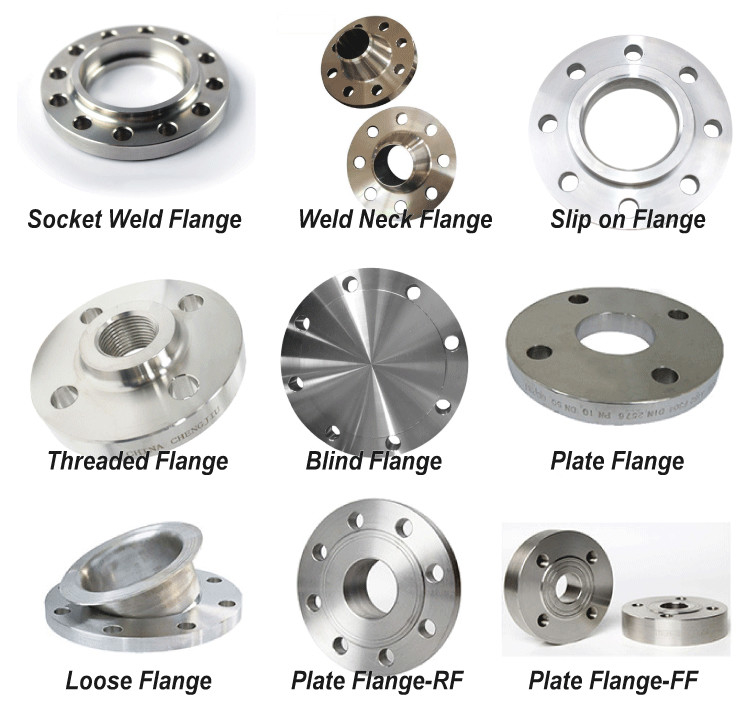

| Type | 1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket Welding Flange 8. Thread Flange 9. Screwed Flange 10. Lap Joint Flange. etc. | |
| Connection Type | Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc | |
| Size | 1/2"-100",SCH5S-SCH160S,XS,XXS,STD | |
| Heat Treatment | Normalizing, Annealing, Quenching Tempering | |
| Applications | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. | |
Special logistics packaging Suitable carton size Shock bubble film
Professional placement Professional shock Complete package
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
