Product Details:
|
| Product Name: | Duplex Stainless Steel Flange | Size: | 1'' |
|---|---|---|---|
| Standard: | ASME B16.5 | Pressure: | 300# |
| Type: | SW | Material Grade: | SM0254 |
| Surface Treatment: | Oil | ||
| High Light: | CL150 Alloy Steel Flange,Connection Alloy Steel Flange,ASTM A182 Threaded Flange |
||

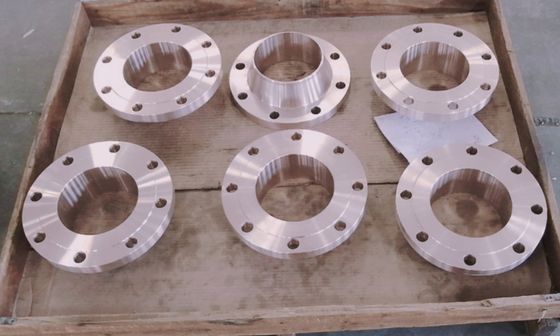

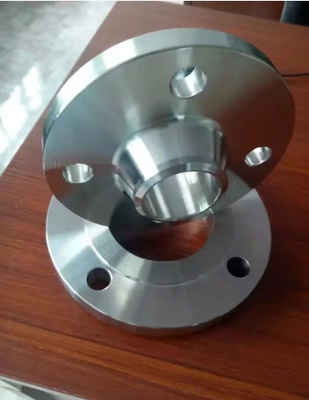

Duplex Stainless Steel Flange Socket Welding RF 300# 1" SM0254 SCH5 For Connection
Specifications
1.Duplex Stainless steel flange
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia
Socket welding flange refers to the flange that is inserted into the flange ring step at the end of the pipe and
welded at the end and outside of the pipe. There are two types: with and without neck. The neck tube flange
has good rigidity, small welding deformation and good sealing, and can be used for occasions with pressure
of 1.0~10.0MPa. The B-type flange for the container is also a socket welding flange, which is used in occasions
with high sealing requirements. When designing, socket welding flanges can be checked according to integral flanges.
| Material | Carbon Steel | ASTM A105, LF2, CL1 / CL2 |
| 16MN,20# | ||
| Stainless Steel | ASTM A182, F304 / 304L, F316 / 316L,A182F317/317L,A182F310,F321,F347,316Ti | |
| Alloy Steel | ASTM A182 A182 F12,F11,F22,F5,F9,F91,F51,F53,F55,F60,F44,F304H,F316H,F317H,F321H,F347H,INCONEL 600,625,825,etc. | |
| Standard | ANSI B16.5 | Class 150 Flanges-Class 2500 Flanges |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar 63Bar | |
| JIS | 5K Flanges-30K Flanges | |
| EN1092-1 | 6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar | |
| Type | 1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket Welding Flange 8. Thread Flange 9. Screwed Flange 10. Lap Joint Flange. etc. | |
| Connection Type | Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc | |
| Size | 1/2"-100",SCH5S-SCH160S,XS,XXS,STD | |
| Heat Treatment | Normalizing, Annealing, Quenching Tempering | |
| Applications | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. | |
