Seamless SS Pipe Heat Exchanger ASTM A192 A213 WP304 3/4" X1.651mm X13400mm SMLS Bolier Tube

Seamless SS Pipe Heat Exchanger ASTM A192 A213 WP304 3/4" X1.651mm X13400mm SMLS Bolier Tube
Seamless SS Pipe Heat Exchanger ASTM A192 A213 WP304 3/4" X1.651mm X13400mm SMLS Bolier Tube Seamless SS Pipe Heat Exchanger ASTM A192 A213 WP304 3/4" X1.651mm X13400mm SMLS Bolier Tube

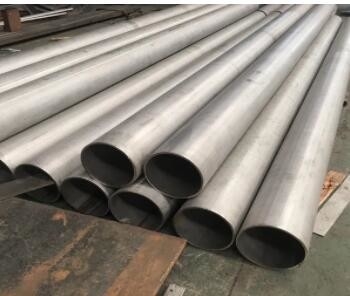

Large Image :  Seamless SS Pipe Heat Exchanger ASTM A192 A213 WP304 3/4" X1.651mm X13400mm SMLS Bolier Tube

Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: 304
Payment & Shipping Terms:
Minimum Order Quantity: 500KG
Price: Negotiation
Packaging Details: Regular shipping packaging or depends on customer's requirement
Delivery Time: 15 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Ton Per Month

Seamless SS Pipe Heat Exchanger ASTM A192 A213 WP304 3/4" X1.651mm X13400mm SMLS Bolier Tube

Description
Product Name: Nickel Alloy Steel Pipe Material: 304
Outer Diameter: 12'' Thickness: XS
Technic: Seamless Application: Petroleum/Power
High Light:

SMLS Boiler Pipe

,

Heat Exchanger Seamless SS Pipe

,

Nickel Alloy SMLS Tube

Seamless SS Pipe Heat Exchanger ASTM A192 A213 WP304 3/4" x1.651mm x13400mm SMLS Bolier Tube

Inconel 601 alloy has the following properties:

1. Excellent oxidation resistance at high temperature

2. Good carbonization resistance

3. Good anti-oxidation sulfur atmosphere

4. Excellent mechanical properties at room temperature and high temperature

5. Excellent stress corrosion cracking resistance due to the control of carbon content and grain size, with high creep fracture strength, so it is recommended to use the alloy in the field above 500℃.



Production Name Nickel Alloy Steel Pipes
Standard ASME/ANSI B16.9, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC.
Size 1/2’’~48’’(Seamless);16’’~72’’(Welded)
Wall thickness Sch5~Sch160XXS
Manufacturing process Push, Press, Forge, Cast, etc.
Nickel alloy steel Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;
Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;
Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;
NAS 254NM/NO8367; Monel 30C
Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952
Nimonic 263/NO7263
Nimonic 90/UNS NO7090;
Incoloy 907/GH907; Nitronic 60/Alloy 218/UNS S21800
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FOB Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.
The third party inspection: BV,SGS,LOIYD,TUV,and other party alloyed by clients.



Trade Name ASTM Pipe Pipe Fittings UNS Forging & Flanges
Monel@ 400 B165 B366 WPNC N04400 B564 N04400
Inconel@ 600 B167 B366 WPNCI N06600 B564 N06600
Inconel@ 625 B444 B366 WPNCMC N06625 B564 N06625
Incoloy@ 800 B163 B366 WPNIC N08800 B564 N08800
Incoloy@ 800H B407 B366 WPNIC10 N08810 B564 N08810
Incoloy@ 800HT B407 B366 WPNIC11 N08811 B564 N08811
Incoloy@ 825 B423 B366 WPNICMC N08825 B564 N08825
Hastelloy@ B2 B619/622 B366 WPHB-2 N10665 B564 N10665
Hastelloy@ C276 B619/622 B366 WPHC276 N10276 B564 N10276
Hastelloy@ C22 B619/622 B366 WPHC22 N06022 B564 N06022
Carpenter 20Cb-3@ B729 B366 WP20Cb N08820 B462 N08820
SANICRO 28@ B668   N08028



Chemical Properties



CHEMICAL ANALYSIS
C Carbon 0.05 max
Mn Manganese 0.50 max
S Sulfur 0.015 max
Fe Iron 0.50 max
Si Silicon 0.50 max
Ni(+Co) Nickel Colbalt 0.80 – 1.10
Cr Chromium 27.0/31.0
Cu Copper 27.0/31.0



Application



The alloy finds applications involving processing of nitric acid and nitric/hydrofluoric acid solutions. As such it is used in tail-gas reheaters in nitric acid production and in heating coils and tanks for nitric/hydrofluoric acid solutions used to pickle stainless steels, and for the reprocessing of nuclear fuels.
The alloy’s resistance to sulfur-containing gases makes it suitable for use in coal gasification units, burners and ducts for processing sulfuric acid.
The alloy is further used for steam generator tubes, baffles and tube sheets as well as for hardware in nuclear power generation.



WELDABILITY



The alloy shows excellent weldability, and may be joined to other dissimilar metals and alloys using the appropriate filler metals. For extreme corrosive conditions, advice should be taken regarding the appropriate filler metal to be used.



Our advangtage



1) Raw material use 100% material steel

2) Good service

3) Competive price

4) Fast delivery

5)High quality products



Packaging & Shipping



Packaging: In wooded cases , pallets or according to clients' requirements
Shipping: Tianjin port, Shanghai port and the other main ports in China
