Product Details:
|
| Material: | ASTM/UNS N02200 | Marking: | Supply Logo + Standard + Size(mm) + HEAT NO +or As Your Requirement |
|---|---|---|---|
| Certificates: | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL And Etc. | Alloy Or Not: | Alloy |
| Technique: | Hot Rolled | Thickness: | 2 - 120 Mm |
| Surface Treatment: | Galvanized | Section Shape: | Round |
| High Light: | 24" Alloy Seamless Pipe,N02200 Nickel Alloy Pipes,Alloy Steel Erw Line Pipe |
||

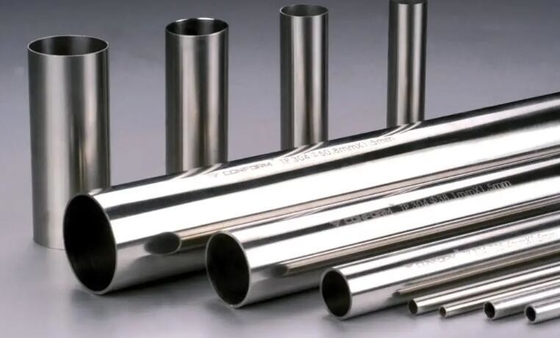

Alloy Steel Pipe ASTM/UNS N02200 Outer Diameter 24" Wall Thickness Sch-5s
| Product Name | Alloy Steel Pipe ASTM/UNS N02200 Outer Diameter 24" Wall Thickness Sch-5s |
| Materials |
Stainless steel:ASTM A312 / SA 312 /ASTM A312 TP314 ASTM/ASMES/A182F304 | F304L |F304H | F316 | F316L | F321 | F321H | F347|316Ti | 309S |310S | href="https://www.bhpipe.com/405-Stainless-Steel-Tube-Pipe-Tubing.htm" 405 |409|410 | 410S | 416 | 420 | 430 | 630 | 660 | 254SMO | 253MA | 353MA Nickel Alloy: ASTM/ASME S/B366 UNS N08020 | N04400| N06600 | N06625 | N08800 | N08810 | N08825 | N10276 | N10665 | N10675 | Incoloy 800 Duplex Steel: ASTM A182 F51 | F53 | F55, S32101 | S32205 | S31803 | S32304 Carbon steel: API 5L... |
| Marking | Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment |
| Certificates | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Applications |
Typical application areas for 1.4835:
|
| Advantages |
|
What is a Seamless Pipe?
Seamless pipes are derived from solid steel that is in sheet or bar form and is formed into a solid round shape known as “billets” which are then heated and cast over a form such as a piercing rod to create a hollow tube or shell. These kinds of pipes are known for their ability to withstand pressure more efficiently in comparison to other methods of pipe manufacturing processes, as well as being fast and cost-effective. Seamless pipes are generally used in gas lines, as well as pipes that carry liquidseamless pipes are derived from solid steel that is in sheet or bar form and is formed into UNS
Alloy200 is a solution strengthened, commercially pure forging material with good mechanical properties over a wide temperature range and excellent resistance to many corrosive agents, especially hydroxides. Alloy200 is modified to control carbon (0.02 max.) so that it will not be embrittled by intergranular precipitates in many processes at temperatures from 600 ° f to 1400 ° F. Generally, the element limits of nickel200 and nickel201 are combined into a double certified chemical to obtain a single alloy nickel200 / 201 with the required alloy properties.
Manufactured by nickel200
All hot and cold working practices can be used when forming alloy200. The hot working temperature shall be between 1200 ° F and 2250 ° F, and the heavy forming shall be carried out at a temperature above 1600 ° F. Annealing shall be carried out between 1300 ° F and 1600 ° F. The annealing temperature and time should be carefully selected during annealing, which can greatly affect the mechanical properties and structure of the material.
