Product Details:
|
| Product: | Raised Face Weld Neck Flange. | Materials: | N07718 |
|---|---|---|---|
| Pressure: | ANSI Class 150,300,600,1500,2500, DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160 | Usage: | Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects Etc. |
| Packing: | No Fumigate Or Fumigate Plywood/Wood Pallet Or Case | Surface Treat: | Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot Dipped Galvanized. |

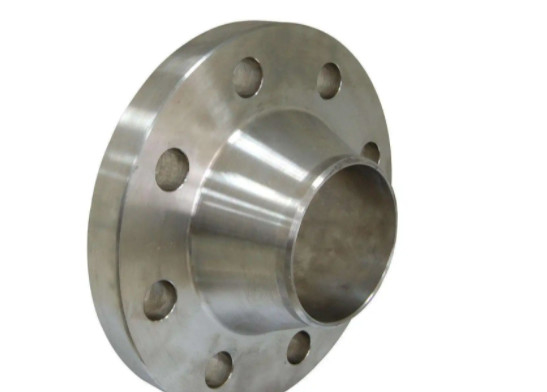

Welding Neck Flange Nickel Alloy Metal Customized B564 N07718 10 " 900LB
| Flange Type | Welding Neck Flange Nickel Alloy Metal Customized B564 N07718 10 " 900LB |
| Standard | ASTM/UNS |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Alloy |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Flange

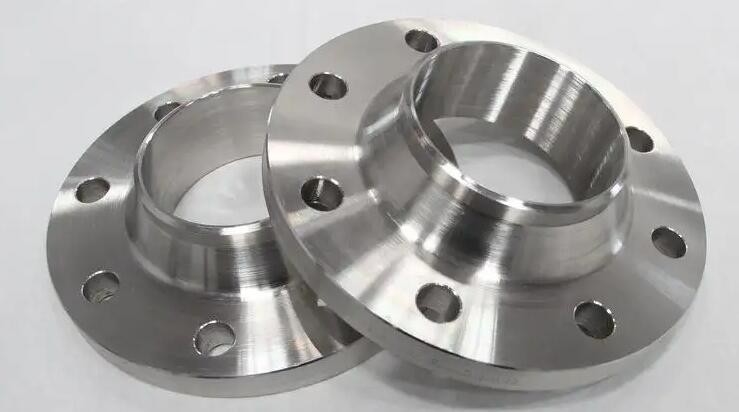

Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.
About Alloy 718
N07718 is a nickel chromium molybdenum alloy designed to resist various severe corrosive environments, pitting and crevice corrosion. This nickel steel alloy also has very high yield, tensile and creep fracture properties at high temperature. The service temperature of this nickel alloy ranges from low temperature to 1200 ° f for long-term use A notable feature of the n07718 composition is the addition of niobium to allow age hardening, which allows annealing and welding without spontaneous hardening during heating and cooling. The addition of niobium acts with molybdenum to harden the matrix of the alloy and provide high strength without strengthening heat treatment. Other popular nickel chromium alloys are age hardened by adding aluminum and titanium. This nickel steel alloy is easy to manufacture and can be welded under annealing or precipitation (aging) hardening conditions. This superalloy is used in various industries, such as aerospace, chemical processing, marine engineering, pollution control equipment and nuclear reactors.
N07718 application
1. Chemical treatment
2. Aerospace
3. Liquid fuel rocket engine components
4. Pollution control equipment
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
