Product Details:
|
| Material: | ASTM/UNS N04400 | Standard: | DIN,ANSI,BS,ASTM,BSP |
|---|---|---|---|
| Pressure: | Class150/300/600/9001500/2500 | Surface Treatment: | Galvanized |
| Packing: | Palletsor As The Customers Requirements | Process: | Forged |

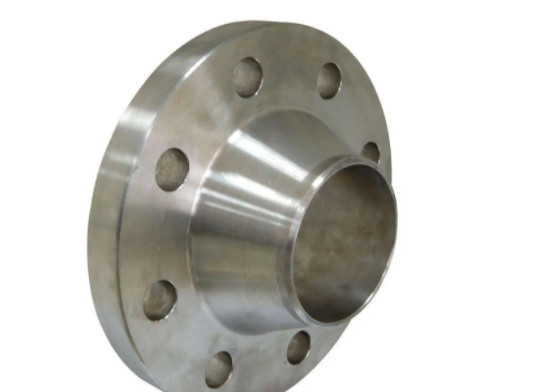

ASTM/UNS N02200 Alloy Steel Forged Pipe Fitting Butt Welding Neck Flange 16”900 LB
| Product name | ASTM/UNS N02200 Alloy Steel Forged Pipe Fitting Butt Welding Neck Flange 16”900 LB |
| Standard | ANSI, ASME, DIN, BS, JIS, GB, ISO etc |
| Material |
310S,310,309,309S,316,316L,316Ti,317,317L,321,321H,347,347H,304,304L,302, 301,201,202,405,410,420,430,904L etc |
| Type |
Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange,etc |
| Connection type | Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female,Large tongue groove, Small tongue groove etc |
| Size | 1'' and 1/2'' ~ 120'' (DN40-DN3000) |
| MOQ | 1 piece |
| Price term | EXW factory, FOB, C&F and CIF |
| Payment term | T/T, L/C, West Union, Money Gram and etc |
| Export to | USA,Canada,Australia,Singapore,Indonesia,Hongkong,Oman,Vietnam etc |
| Package | Standard export wooden case or as you requested |
| Application | It is usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc |
Background:
The butt welding flange is not easy to deform, has good sealing and is widely used. It has corresponding rigid and elastic requirements and reasonable butt welding thinning transition. The distance between the weld junction and the joint surface is large, and the joint surface is free from welding temperature deformation. It adopts a relatively complex horn shape structure, which is suitable for pipelines with large fluctuations in pressure or temperature or pipelines with high temperature, high pressure and low temperature, It is generally used for the connection of pipes and valves with PN greater than 2.5MPa; It is also used for pipelines conveying expensive, flammable and explosive media.
Marking and Use
In pipeline engineering, flange is mainly used for pipeline connection A flange shall be installed for all kinds of pipes to be connected. Threaded flanges can be used for low-pressure pipes, and welded flanges can be used for pressure above 4kg Add a gasket between the two flanges and fasten them with bolts Flanges with different pressures have different thicknesses and use different bolts When pumps and valves are connected with pipes, parts of these equipment are also made into corresponding flange shapes, also known as flange connection The connecting parts that are bolted on two planes and closed at the same time are generally called "flange", such as the connection of ventilation pipe. This kind of parts can be called "flange parts" However, this connection is only a part of the equipment, such as the connection between flange and water pump, so it is not good to call the water pump "flange parts" Relatively small, such as valves, can be called "flange parts"
