ASME/ANSI B16.9 Alloy 400 ASTM/UNS N04400 Slip-On Welding Plate Flange 14" Class900

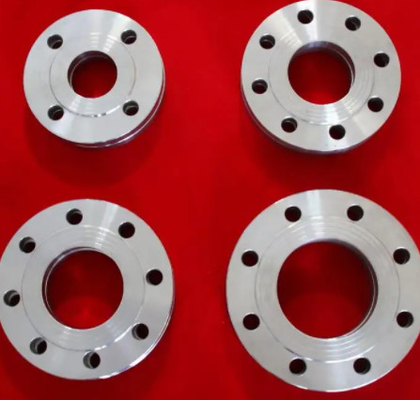

Large Image : ASME/ANSI B16.9 Alloy 400 ASTM/UNS N04400 Slip-On Welding Plate Flange 14" Class900

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	ASTM/UNS N04400

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export carton
Delivery Time:	15-30 working days depending on quantity
Payment Terms:	T/T, Western Union
Supply Ability:	1000 set/month

Contact Now

ASME/ANSI B16.9 Alloy 400 ASTM/UNS N04400 Slip-On Welding Plate Flange 14" Class900

Description

Product:	Slip-On Welding Plate Flange 14" Class900	Materials:	Nickel Alloy Metal
Pressure:	ANSI Class 150,300,600,1500,2500, DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160	Standard:	ASME/ANSI B16.9
Size:	14 Inch	Usage:	Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects Etc.
Packing:	No Fumigate Or Fumigate Plywood/Wood Pallet Or Case	Surface Treat:	Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot Dipped Galvanized.

ASME/ANSI B16.9 Alloy 400 ASTM/UNS N04400 Slip-On Welding Plate Flange 14" Class900

Flange Type	ASME/ANSI B16.9 Alloy 400 ASTM/UNS N04400 Slip-On Welding Plate Flange 14" Class900
Standard	ASTM/UNS
Size	1/2’’~60’’
Pressure Rate	150lb to 2500lb
Manufacturing process	Push, Press, Forge, Cast, etc.
Material	Alloy
Carbon steel	ASTM A 105
Allloy steel flange	ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8
Stainless Steel flange	ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H
Nickel Alloys Flanges	Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys Flange	Copper, Brass & Gunmetal
Manufacture Standard	ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10
Package	Wooden cases, pallets, nylon bags or according to the customers' requirements

Flange

A flange is a protruded ridge, lip or rim, either external or internal, that serves to increase strength (as the flange of an iron beam such as an I-beam or a T-beam); for easy attachment/transfer of contact force with another object (as the flange on the end of a pipe, steam cylinder, etc., or on the lens mount of a camera); or for stabilizing and guiding the movements of a machine or its parts (as the inside flange of a rail car or tram wheel, which keep the wheels from running off the rails). The term "flange" is also used for a kind of tool used to form flanges.

Sealing principle of flat welding flange: the two sealing surfaces of the bolt squeeze the flange gasket and form a seal, but this also leads to the destruction of the seal. In order to keep the seal, it is necessary to maintain a huge bolt force. Therefore, the bolt should be made larger. The larger bolt needs to match the larger nut, which means that the bolt with larger diameter is needed to create conditions for tightening the nut. However, the larger the diameter of the bolt, the applicable flange will become bent. The only way is to increase the wall thickness of the flange part. The entire unit will require enormous size and weight, which becomes a special problem in the offshore environment, because in this case, weight is always the main problem that people must pay attention to. Moreover, fundamentally speaking, the flat welding flange is an ineffective seal. It needs to use 50% of the bolt load for extruding the gasket, while the load for maintaining the pressure is only 50%

Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: How long is the delivery ?

A: 15-30 working days

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

If you want to get more information of the products, send me e-mail or by skype, whatsapp etc.

If any questions,you can call me mobile phone at any times:0086-15710108231

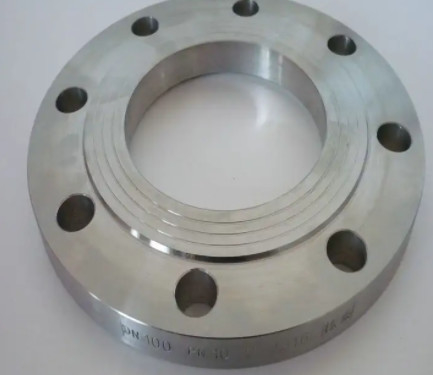

ASME/ANSI B16.9 Alloy 400 ASTM/UNS N04400 Slip-On Welding Plate Flange 14" Class900 1
