SOF Slip - On Flange Machining Nickel Alloy ASTM / UNSN N04400 14" 1500#

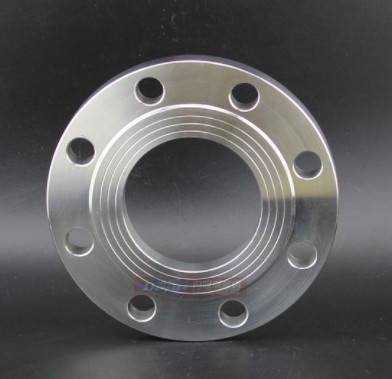

Large Image : SOF Slip - On Flange Machining Nickel Alloy ASTM / UNSN N04400 14" 1500#

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	N04400

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Depending on quantity
Packaging Details:	Standard export sea-worthy packing
Delivery Time:	15-30 working days depending on quantity
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	3,0000pcs per month

Contact Now

SOF Slip - On Flange Machining Nickel Alloy ASTM / UNSN N04400 14" 1500#

Description

Name:	Slip-On Flange	Inspection:	Mechinical Property Inspection
Process:	Forging+machining+heating Treatment	Surface Treatment:	Heat Treatment,Galvanized
Standard:	DIN,ANSI,ISO,ASME,JIS	Pressure:	Class150-2500/ PN6-PN100
Highlight:	Nickel Alloy Slip On Flange , UNSN Slip On Flange , N04400 Slip On Flange

SOF Slip-On Flange Machining Nickel Alloy ASTM/UNSN N04400 14" 1500#

Flange Type	SOF Slip-On Flange Machining Nickel Alloy ASTM/UNSN N04400 14" 1500#
Standard	ASTM/UNS
Size	1/2’’~60’’
Pressure Rate	150lb to 2500lb
Manufacturing process	Push, Press, Forge, Cast, etc.
Material	Alloy
Carbon steel	ASTM A 105
Allloy steel flange	ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8
Stainless Steel flange	ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H
Nickel Alloys Flanges	Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys Flange	Copper, Brass & Gunmetal
Manufacture Standard	ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10
Package	Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ	1pcs
Delivery time	10-100 days depending on quantity
Payment terms	T/T or Western Union or LC
Shipment	FCA Tianjin/Shanghai, CFR, CIF, etc
Application	Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks	Other materials and drawings are available.

Introduction

Slip on flange, also called SO flange. It's a kind of flange slides over the pipe with internal design is slightly larger than the pipe. Since the inner diameter of the flange is slightly larger than the outer diameter of the pipe, the SO flange can be directly connected to equipment or pipe by fillet weld at the top and bottom of the flange.

SOF Slip - On Flange Machining Nickel Alloy ASTM / UNSN N04400 14" 1500# 0

What Does Alloy 400 Mean?

Alloy 400 is a solid solution alloy that can be hardened only by cold working. It exhibits great strength over a wide temperature range and shows excellent corrosion resistance.

What is the thickness of alloy 400ar?

Alloy 400AR is stocked in thicknesses from .1875" through 3.00". Available thicknesses for Alloy 400: Alloy 400 (UNS N04400) is a ductile nickel-copper alloy with resistance to a variety of corrosive conditions.
