LJ Lapped Joint Flange Alloy ASTM / UNSN Nickel 200 10" 600#

LJ Lapped Joint Flange Alloy ASTM / UNSN Nickel 200 10" 600#
LJ Lapped Joint Flange Alloy ASTM / UNSN Nickel 200 10" 600# LJ Lapped Joint Flange Alloy ASTM / UNSN Nickel 200 10" 600#

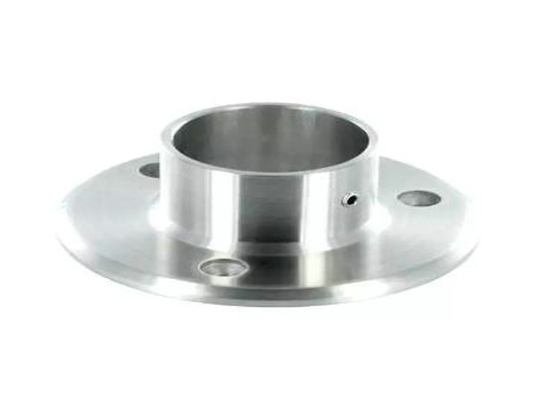

Large Image :  LJ Lapped Joint Flange Alloy ASTM / UNSN Nickel 200 10" 600#

Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Nickel 200
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Depending on quantity
Packaging Details: Standard export sea-worthy packing
Delivery Time: 15-30 working days depending on quantity
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3,0000pcs per month
Contact Now

LJ Lapped Joint Flange Alloy ASTM / UNSN Nickel 200 10" 600#

Description
Name: Lapped Joint Flange Packing: Palletsor As The Customers Requirements
Inspection: Mechinical Property Inspection Application: Petroleum,chemical
Process: Forging+machining+heating Treatment Surface Treatment: Heat Treatment,Galvanized
Standard: DIN,ANSI,ISO,ASME,JIS Pressure: PN2.5/6/10/16/25/40
Highlight:

LJ Lapped Joint Flange

,

ASTM Joint Flange

,

Nickel 200 Joint Flange

LJ Lapped Joint Flange Alloy ASTM/UNSN Nickel 200 10" 600#



Flange Type LJ Lapped Joint Flange Alloy ASTM/UNSN Nickel 200 10" 600#
Standard ASTM/UNS
Size 1/2’’~60’’
Pressure Rate 150lb to 2500lb
Manufacturing process Push, Press, Forge, Cast, etc.
Material Alloy
Carbon steel ASTM A 105

Allloy steel flange



ASTM A182 F5; F11;F22;F91;F51

ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8

Stainless Steel flange



ASTM A182 F304/304H/304L

ASTM A182 F316/316H/316L

ASTM A182 F321/321H

ASTM A182 F347/347H

Nickel Alloys Flanges



 Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys Flange



 Copper, Brass & Gunmetal
Manufacture Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FCA Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.



Introduction



A lap joint flange (loose flange) is a device which consist of two pieces,it looks like a weld neck flange together,and it is butt welded with the pipes,it also like a loose slip-on flange. Lap-Joint-Pipe-Flange

LJ Lapped Joint Flange Alloy ASTM / UNSN Nickel 200 10" 600# 0

Fabrication and Heat Treatment

Nickel 200 alloy can be shaped through all hot working and cold working practices. The alloy can be hot worked between 649°C (1200°F) and 1232°C (2250°F), with heavy forming carried out at temperatures above 871°C (1600°F). Annealing is performed at temperature between 704°C (1300°F) and 871°C (1600°F).



Other Designations

Other designations that are equivalent to nickel 200 alloy include the following:

  • ASME SB-160 - SB-163
  • DIN 17740
  • DIN 17750-17754
  • BS 3072-3076
  • ASTM B 160 - B 163
  • ASTM B 725
  • ASTM B 730





About Us

We are one of the Professional manufacturers Exporter Pipeline products in
China .Our company was established in 1998, the plant covers 550, 000 square meters
and a construction area of 6,8,000square meters, existing 260 workers and 45
technicians.

We have five branch factories which can supply the best quality pipes, tubes, fittings
flanges and related accessories. Now, it owns a number of advanced pipe
production equipments, metal, forging, machining, cold forming, hot extrusion, such as
heat treatment process, producing 60, 000 tons of pipe fittings. Company with a variety of
detection devices, such as nondestructive testing, chemical analysis, metallographic
examination, physical experiments. The technical is very strength, our main products
contain fittingsforged socket welding fittings and threaded fittings, pipe weld and the
materials of the products contain stainless steel ,duplex-stainless steel alloy steel.

In addition, we are authorized by more than 120 top-class mills from South
Korea,Japan and China like JFE,SUMITOMO,POSCO,BAOSTEEL,
TISCO,LISCO,.TPCO,HENGYANG VALIN and so on .


• Contact us for more information regarding our nickel alloy UNS N02201 manufacturing and distribution options, or inquiry  us   and we will gladly answer any questions that you may have. TOBO Group  is your trusted supplier for pipe and pipe fittings alloy products
