Product Details:
|
| Material: | Alloy 200 | Connection: | Welding |
|---|---|---|---|
| Type: | Flange | Standard: | DIN,ANSI,BS,ASTM |
| Size: | Customized Size | Pressure: | Class150/300/600/9001500/2500 |
| Process: | Forged | Packing: | Palletsor As The Customers Requirements |
| High Light: | N02200 Welding Plate Flange,Class 600 Welding Plate Flange,Alloy 10" Welding Plate Flange |
||

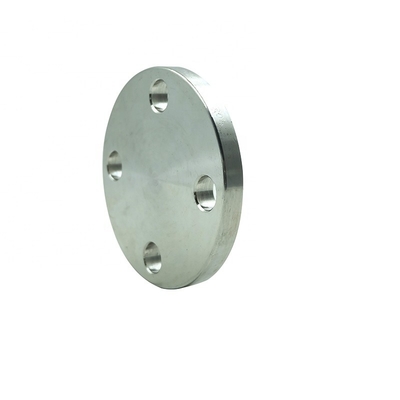

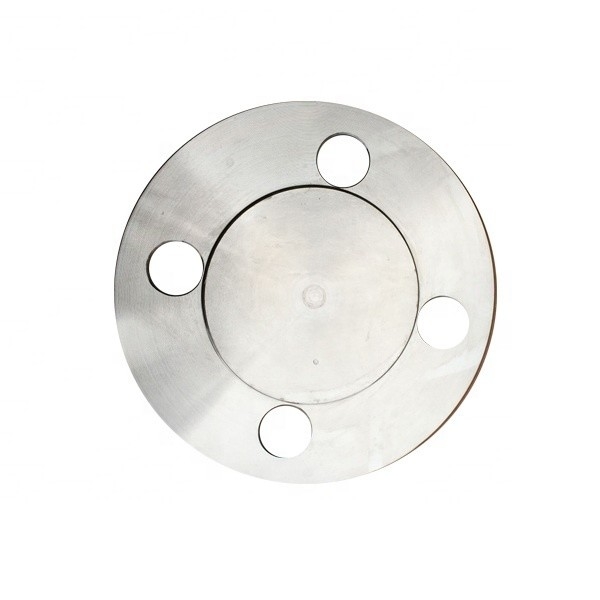

| Flange Type | Slip-On Welding Plate Flange Alloy ASTM/UNS N02200 10" Class 600 |
| Standard | ASTM/UNS |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Alloy |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
A Slip-on Flange is simply a ring that is fitted over the pipe end, with the flange face extending far enough from the pipe end to allow for the application of a weld bead on the inside diameter. On the rear side of the flange, the OD of the slip-on flange is likewise welded
The advantages of Alloy 200
Nickel Alloy 200 Sheets (Nickel 200 Plates) are relatively perfect for coastal, marine, and hostile industrial atmospheres. Nickel Alloy 201 Sheets (Nickel 200 Plates) are reasonably Cost Effective and are Accessible in widespread range of sizes. Meanwhile, we as well offer these UNS N02200 Sheets Plates / WNR 2.4066 Sheets Plates and UNS N02201 Sheets Plates / WNR 2.4068 Sheets Plates in customized thicknesses and sizes as per the précised requirements given by our valuable customers in international quality of standards.
Advantages
The application of our products
