ASTM B564 UNS N06625 Alloy 625 1" Schxxs Rf Spectacle Figure 8 Blank Blind Steel Flange

ASTM B564 UNS N06625 Alloy 625 1" Schxxs Rf Spectacle Figure 8 Blank Blind Steel Flange
ASTM B564 UNS N06625 Alloy 625 1" Schxxs Rf Spectacle Figure 8 Blank Blind Steel Flange ASTM B564 UNS N06625 Alloy 625 1" Schxxs Rf Spectacle Figure 8 Blank Blind Steel Flange

Large Image :  ASTM B564 UNS N06625 Alloy 625 1" Schxxs Rf Spectacle Figure 8 Blank Blind Steel Flange

Product Details:
Place of Origin: China
Brand Name: Metal
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Alloy 625
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: In wooden case, pallets or as per customers' requirement
Delivery Time: 15 Work days
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 1000 PCS PER MONTH

ASTM B564 UNS N06625 Alloy 625 1" Schxxs Rf Spectacle Figure 8 Blank Blind Steel Flange

Description
Product Name: SPECTACLE BLIND FLANGE Material: Alloy 625
Standard: ASME B16.5 Application: Petrochemicals
Test Certificates: EN 10204/3.1B Material Grade: ASTM B564
OD: 1'' Pressure: 600LB
High Light:

ASTM B564 Alloy Steel Flanges

,

UNS N06625 Alloy Steel Flanges

,

Rf Spectacle Alloy Steel Flanges

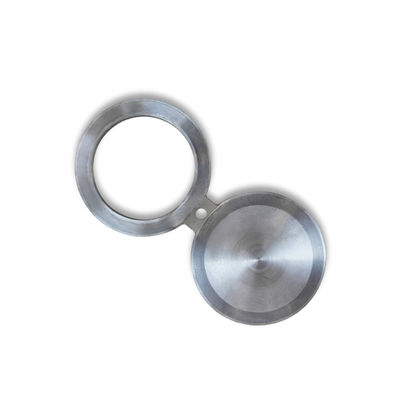

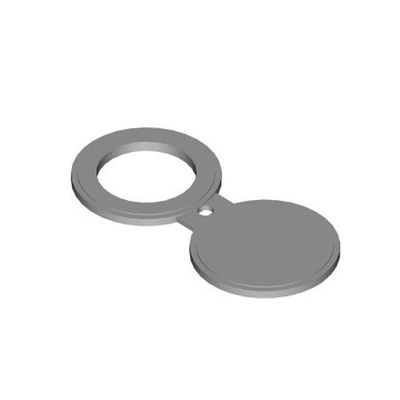

ASTM B564 UNS N06625 / ALLOY 625 1" 600# SCHXXS RF Spectacle FIGURE 8 BLANK BLIND STEEL FLANGE





1. Spectacle Flanges, Single Blinds, and ring spacer are crucial pipeline accessories when a section of the pipeline may need to be isolated from the rest. Single Blinds or Blanks are positive shut-off devices that prevent flow through a pipeline.



2. The products a according to the requirements of 590 can be used to the RF Flange as following standard: ANSI B16.5, SH3406, IS07005-1, GB9112~9124, HG20615.



3. The corrosive capacity is involved in the thickness of paddle blind, spacer and Figure 8 & the corrosive capacity is 1.3mm for c.s. Low-alloy & low-temperature steel and O for s.s.


4. Adopted to flat spacer. Adjust the thickness if adopt other spacer.

01-121802-1217

Product Name

Spectacle Blind Flange

Standard

ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, 7S-15, 7S-43, 605, EN1092

Type

Spectacle Blind Flange Special Flange: According to the drawing Picture

Materials

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276


Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L,



Stainless steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H


Duplex Steel: ASTM A182 F51, F53, F55


Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91

           ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8



Copper Alloy:ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718



InconeAlloy Steel:ASTMAB564, NO8800/Alloy800, NO8810/Alloy800H, NO8811/Alloy 800HT



Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....

Dimension

(150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300

Marking

Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement

Test

Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement

Brand

TOBO

Certificates

3.1. (Any third party certificate should be clarified before order)
