Product Details:
|
| Standard Or Nonstandard: | Standard | Standard: | DIN,ANSI,ISO,ASME,JIS |
|---|---|---|---|
| Size: | DN 10 To DN 3000 MM | Material: | Stainless Steel,Alloy Steel,Copper,carbon Duplex Stainless Alloy Steel Cs Ss |
| Product Name: | Welding Neck Flange,Pipe Flange,Stainless Steel Flange | Application: | Petroleum |
| Pressure: | Class150/300/600/9001500/2500 | Type: | Weld Neck Flange |
| Surface Treatment: | Heat Treatment,Galvanized,customize | Packing: | Wooden Case,Plywood\wooden Pallets,palletsor As The Customers Requirements |
| High Light: | UNS S31603 Alloy Steel Flanges,DIN 2526 Alloy Steel Flanges,DN10 Alloy Steel Flanges |
||

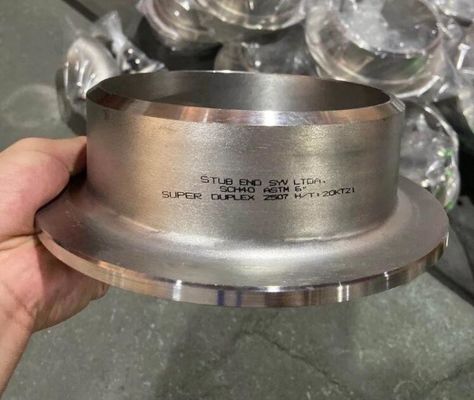

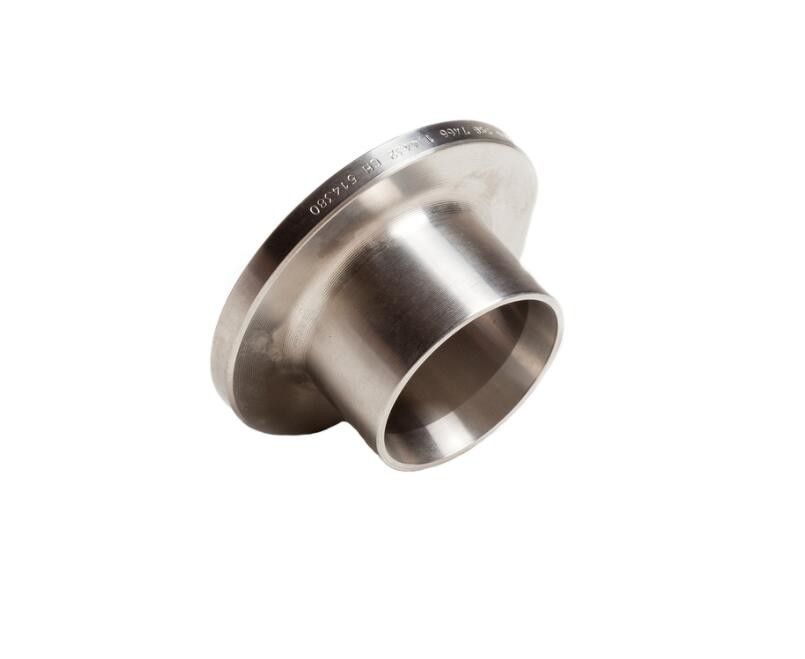

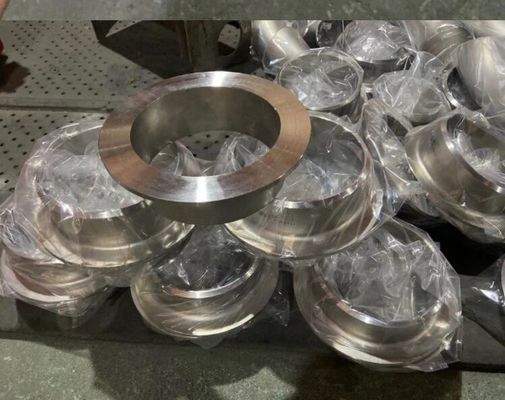

1.4404 / UNS S31603 MATERIAL WELDING RING WITH COLLAR EN 1092-1:2007 TYPE 35-PN 10 FLANGE
| Standard Reference |
|
| Pressure Rate | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Value-Added Services | Oil Black Paint, Antirust Paint, Cold, and Hot Dip Galvanized, Yellow Transparent, Zinc Blind |
| Dimensions | EN 1092-1 Type 35 |
| Material | P250GH, 1.4541, S235JRG2, 1.4571 |
| Techniques of Production | Machined, Forged, and Heat Treated |
| Equipments | Bending Machine, Press Machine, Sand-Blasting machine, Pushing Machine, Electric Bevelling Machine, etc. |
| DN | A | d1 | H4 | F | S | Sp | kg |
| 200 | 219,10 | 268 | 62 | 11 | 6 | 2,6 | 3,90 |
| 250 | 273,00 | 320 | 68 | 12 | 8 | 3,2 | 5,80 |
| 300 | 323,90 | 370 | 68 | 12 | 8 | 3,2 | 6,80 |
| 350 | 355,60 | 430 | 68 | 13 | 8 | 3,2 | 9,50 |
| 400 | 406,40 | 482 | 72 | 14 | 8 | 3,2 | 11,60 |
| 450 | 457,00 | 532 | 72 | 15 | 8 | 3,6 | 15,00 |
| 500 | 508,00 | 585 | 75 | 16 | 8 | 4 | 15,90 |
| 600 | 610,00 | 685 | 80 | 18 | 10 | 5 | 23,00 |
| 700 | 711,00 | 800 | 80 | 20 | 10 | 6,3 | 30,90 |
| 800 | 813,00 | 905 | 90 | 20 | 12 | 6,3 | 41,50 |
| 900 | 914,00 | 1005 | 95 | 22 | 12 | 8 | 50,00 |
| 1000 | 1.016,00 | 1110 | 95 | 24 | 12 | 8 | 58,90 |
| 1200 | 1.219,00 | 1330 | 115 | 26 | 16 | 10 | 93,20 |
We manufacture many different types of flanges in this specification. The Flange EN 1092-1 Type 35 can be a slip on, welded neck, blind or lap joint in type. The EN 1092-1 Type 35 Slip On Flange can be of raised face or flat face depending on the application requirement and we produce all of them. The slip on flanges are used to make the fitting quickly by allowing the pipes to slip through them and then welding them in the needed point. The EN 1092-1 Type 35 Blind Flange is used to end the pipeline with a strong closure. Please contact us for further product details and costs.
