Product Details:
|
Product Name: | Spade Blind Flange | Model Number: | 31803 |
---|---|---|---|
Brand Name: | Tobo | Standard: | DIN, ANSI, ISO, ASME, JIS |
Size: | DN10-DN2000 | Material: | ASTM 31803 |
Application: | Petroleum, Chemical, Etc, Fittings And Connection, | Technics: | Froged |
Pressure: | 150#-2500# | Connection: | Welding |
Highlight: | Class 150 Spade Blind Flange,ASTM 31803 Spade Blind Flange,1/2" Spade Blind Flange |

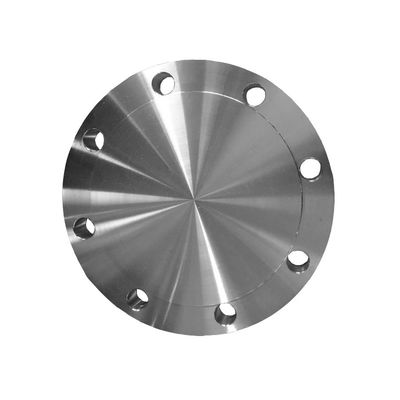

ASME B16.5 Forged 1/2" Class 150 Alloy Steel Spade Blind Flange
Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
Type | WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer) Special Flange: According to the drawing Picture |
Materials |
Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70.... |
Dimension | (150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300 |
Marking | Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement |
Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment |
Brand | TOBO |
Certificates | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
Advantages |
1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.) |
Specification:
Standard: ANSI, MSS, AWWA, DIN, UNI, JIS, BS, SABS, EN1092, GOST, also we can produce according to customers’ drawings.
Size: 15mm to 2,000mm.
Flange Facing: RF, FF, RTJ. etc.
Materials: Carbon steel, stainless steel and alloy steel.
Process: FORGED.
Painting: yellow paint, black paint, anti-rust oil or zinc coated.
Packaging & Shipping
Packaging: | In wooded cases , pallets or according to clients' requirements |
Shipping: | Tianjin port, Shanghai port and the other main ports in China |
-Sufficient Forging, Heating, Machining Equipment
-In-house Inspection Instruments for Quality Controlling
-Competitive Price & High Quality Assurance
-Fast, Effective and Efficient Services
-Directly supplier of Metallurgical Equipment
-Experienced Professinonals on Communications
