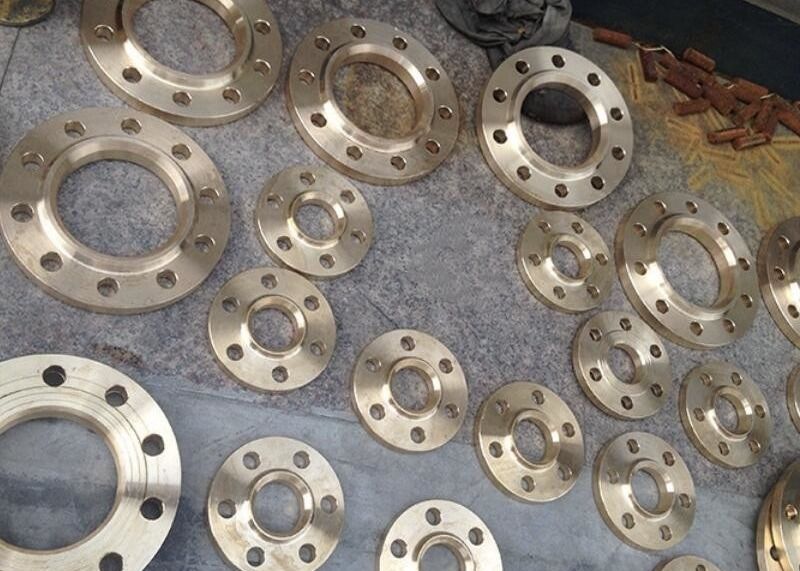

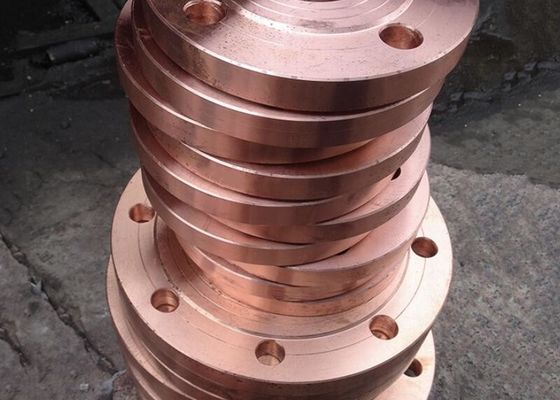

Cold Rolled 2000MM C71500 70/30 Slip On Hubbed RF Flange

Cold Rolled 2000MM C71500 70/30 Slip On Hubbed RF Flange
Cold Rolled 2000MM C71500 70/30 Slip On Hubbed RF Flange Cold Rolled 2000MM C71500 70/30 Slip On Hubbed RF Flange

Large Image :  Cold Rolled 2000MM C71500 70/30 Slip On Hubbed RF Flange

Product Details:
Place of Origin: China/Japan/Germany
Brand Name: METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: UNS N71500
Payment & Shipping Terms:
Minimum Order Quantity: 300 Kilogram/Kilograms
Packaging Details: In bulk in bundles plastic outside in bundles as customer's request.
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 50 Metric Ton/Metric Tons per Month

Cold Rolled 2000MM C71500 70/30 Slip On Hubbed RF Flange

Description
Product Name: Steel Plate Surface: 2B , BA , NO.1 , NO.4 , 8K Mirror
Grade: Alloy71500 Standard: ASTM, AISI, DIN, EN, GB
Width:: 1500-2000MM Application: Various Applications
Technology: Coil, Plate, Hot Rolled / Cold Rolled Length: 1000-12000mm
High Light:

Slip On Hubbed RF Flange

,

C71500 Hubbed RF Flange

,

2000MM Cold Rolled Steel Plate

Slip-on hubbed flange Copper Nickel Alloy C71500 70/30 1/2" Class150 SO flange wholesale price ASME RF

(UNS N06600)



UNS N06600 is a nickel-chromium alloy that provides excellent resistance to oxidation at high temperatures. It is also commonly used as a corrosion resistant alloy due to its resistance against a range of acids and alkalis. Nippon Yakin supplies this product in plate, sheet, and strip forms.



  • GradeAlloy 600
  • UNSN06600
  • EN / DIN2.4816
  • JISNCF 600
  • Chemical Composition77Ni-16Cr-6Fe

Metal working in progress
Cold Rolled 2000MM C71500 70/30 Slip On Hubbed RF Flange 0

Coil

Cold Rolled 2000MM C71500 70/30 Slip On Hubbed RF Flange 1

Sheet

Cold Rolled 2000MM C71500 70/30 Slip On Hubbed RF Flange 2

Plate


Workability Hot working is relatively easy with Alloy 600. For hot working, temperature should be between 1000 and 1180℃, although light work may be done at temperature as low as 850℃. The range between 650 and 850℃ should be avoided as cracking may occur. Cold workability is easier than austenitic stainless steels, similar to Monel.
Weldability As with standard austenitic stainless steels, Alloy 600 may be welded using techniques such as TIG, MIG, and shield metal arc welding. For edge preparation, mechanical cutting is desirable. Wide U- and V-groove angles should be used. Care should be taken to ensure it's welding portion is clean as Alloy 600 is sensitive to surface contamination.
Heat Treatment

The following heat treatment may be used:

  • Annealing: 800~1150℃; Air or water cooling

Care should be taken at temperatures exceeding 1050℃ as there is a strong tendency for the crystal grains to become coarse.

Machinability

As a high-nickel alloy, Alloy 600 is not as machinable as an austenitic stainless steel. A high-speed steel cutting tool may be used, though a sintered carbide tool is recommended. Also, the feed speed should be somewhat reduced, aiming for deep cutting. The recommended lathe feed speeds are as follows:

  • High-speed steel tool: 1050~1350mm/min
  • Sintered carbide tool: 3000~5250mm/min

After machine work, lubricants should be completely removed before welding or heat treating.

Properties at High Temperatures



Exhibiting particularly superior oxidation resistance at high temperatures, Alloy 600 can be used in air as well as other environments continuously for long periods of time. Because it has excellent resistance to nitrogen, hydrogen and carburization, Alloy 600 can be used in heat treatment furnaces. Care is needed with wet chlorine and bromide, however, as they will cause damage.
The maximum temperatures that Alloy 600 may be used in different environments are as follows:
  • Long-term continuous use in air oxidizing environment: 1100℃
  • Reducing environment of H2 or CO not containing sulfur: 1150℃
  • Oxidizing sulfur environment (in air containing sulfurous acid): 815℃
  • Reducing environment containing hydrogen sulfide: 535℃
  • Hydrogen chloride: 540℃
  • Chlorine gas: 510℃
Applications Nuclear power plants, heat exchangers, industrial chemical evaporators, industrial acid and alkali equipments, heat treatment furnace parts, afterburner parts and other components used at high temperatures.
