Product Details:
|
| Section Shape: | Round | Outer Diameter: | 21.3 - 660 Mm |
|---|---|---|---|
| Place Of Origin: | China (Mainland) | Certification: | API |
| Grade: | GR.A-X70, N80, Q195-Q345, ST35-ST52 | Certificate: | ISO,CE,SGS,BV,TUV |
| High Light: | MS106 Coated Steel Pipe,OD8.0mm Coated Steel Pipe,1054mm Coated Steel Pipe |
||

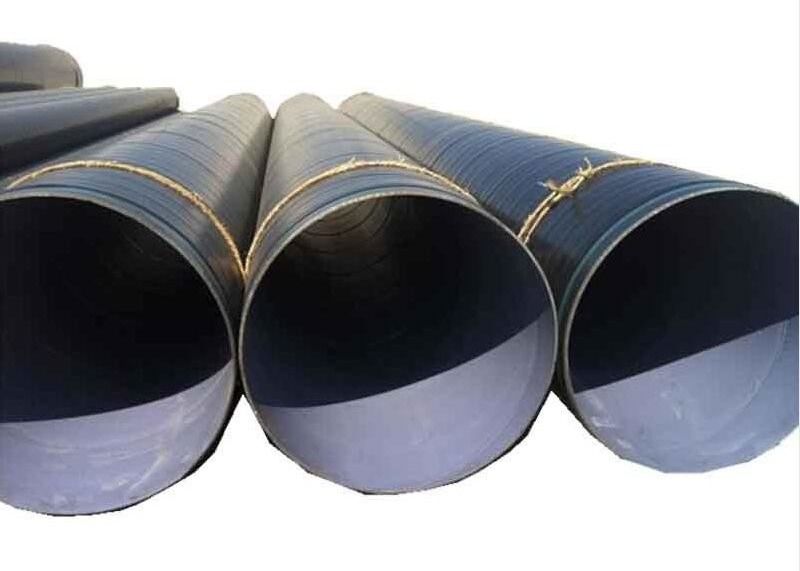

1054 mm OD 8.0mm Thick Steel Pipe MS106 Gr.B Coating Tube Internal Cement Lined & External Reinforced Bitumen Enamel Wrapping
Coating materials specification and properties
Pull-off strength test ASTM D4541:70kg/cm2
Mandrel bend test ,ASTM D522 bend 180 degree mandrel 1" : ok
Water resistance test ASTM D4585 1500 hrs at 38℃:ok
External Coating Specifications
1. Products : Polyurethane Solventless Coatings.
2. Solids content in volume : 100%
3. High temperature surface coating test ASTM D2485:100℃
8. Salt spray test ASTM B117: 1000hrs min without damage
9. Coating materials validity date: not less than 1 year
a Coating Thickness: 800um
b Cut back length: 150mm±20mm
c Coating Self Life: 25 years
d Primer: Clear Varnish or None
e Metal Surface Preparetion Before Coating : Solvent clearing acc.to SSPC SP1 ,cleaning validation Acc.to SSPC VIS1 Near White Blasting Acc.to SSPC SP10 using abrasive grade 3 or 4 Acc. to SSPC AB1 Surface Profile Min 50um,Max 100um,Tested Acc.to ASTM D4417

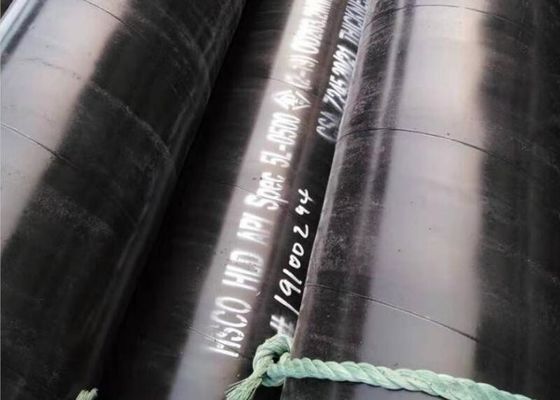

Marking: Brand +API5L+OD+WT+Steel Grade+Quality Level+Type of pipe
Quick Details
| Thickness | 1.8 - 22 mm | Section Shape | Round |
| Outer Diameter | 21.3 - 660 mm | Place of Origin | China (Mainland) |
| Certification | API | Surface Treatment | Bare,lightly oiled,black painting,Hot galvanized, 3LPE, 2LPE |
| Product | erw steel pipe / Welded steel pipe | Standard | API 5L, API 5CT, ASTM A53,EN 10219,EN10217,JIS G3444 |
| Grade | GR.A-X70, N80, Q195-Q345, ST35-ST52 | Material: | GR.B,X42,X52,X60,X65,X70 |
| Technology | Cold Drawn, Hot Rolled, Hot Expanded | keywords | carbon steel erw pipe specifications |
| Certificate | ISO,CE,SGS,BV,TUV | Brand | TOBO |
| Supply Ability | 200000 Ton/Tons per Month | Technique | ERW |
API 5L ASTM A252 Spiral Weld Steel Pipe, Coated SCH10 SCH20 iron pipe clothes rack with 3PE 3PP coating anticorrosion and epoxy
coating pipe
Product details
| Product | erw steel pipe / Welded steel pipe |
| Standard | API 5L, API 5CT, ASTM A53,EN 10219,EN10217,JIS G3444 |
| Grade | GR.A-X70, N80, Q195-Q345, ST35-ST52 |
| Material | GR.B,X42,X52,X60,X65,X70,etc |
| End | Plain,Beveled,Thread with Coupling or cap,Chamfer,Groove ,Screw |
| Surface | Bare,Lightly oiled, black/yellow painting,Zinc/anti-corrosive Coating |
| Technology | Cold Drawn, Hot Rolled, Hot Expanded |
| keywords | carbon steel erw pipe specifications |
| Certificate | ISO,CE,SGS,BV,TUV |
| Brand | TOBO |
Pipe standard:API 5L Gr.B, X42,X46,X52,X56,X60, Q192,Q235,Q345B,ASTM A106 Gr.B ASTM A53,ASTM A179 ASTMA192 ASTM A210
Minimum order:5tons
3PE, 2PE, 3PP, 2PP, FBE and 2layer FBE. Pipes outside diameters range from OD 88.9 to OD2020mm. The coating is in accordance with DIN 30670,DIN 30678, TS 5139,UNI 9099 and EN 10288 standards.
FBE coating materials is a thermosetting material. it is consisit of solid epoxy resin,Curing agent and various additives by mixing,grinding.when performing,steel tube was heated to 220-230℃,then by electrostatic adsorption method ,FBE powder is sprayed on the surface of the pipe,heated and cooled melt adhesive curing ,Single-layer FBE coating thickness is about 300-500um,DPS(double layer FBE)thickness was controlled in 450-1000um.
FBE coating has the properties of excellent adhesive strength,high insulation resistance,oil stress,anti-aging,anti-cathode stripping,anti high temperature,resistance to bacteria and samll cathode protection current(only1-5uA/m2,and etc.but there are also poor performances against mechanical impact ,high water absorption and other shortages.
Our FBE/DPS coating perform the standards as per Y/T0315,CAN/CSA Z245.20,AWWA C213,Q/CNPC38.etc
Use: Widely used in land,underwater pipeline anticorrosion.
