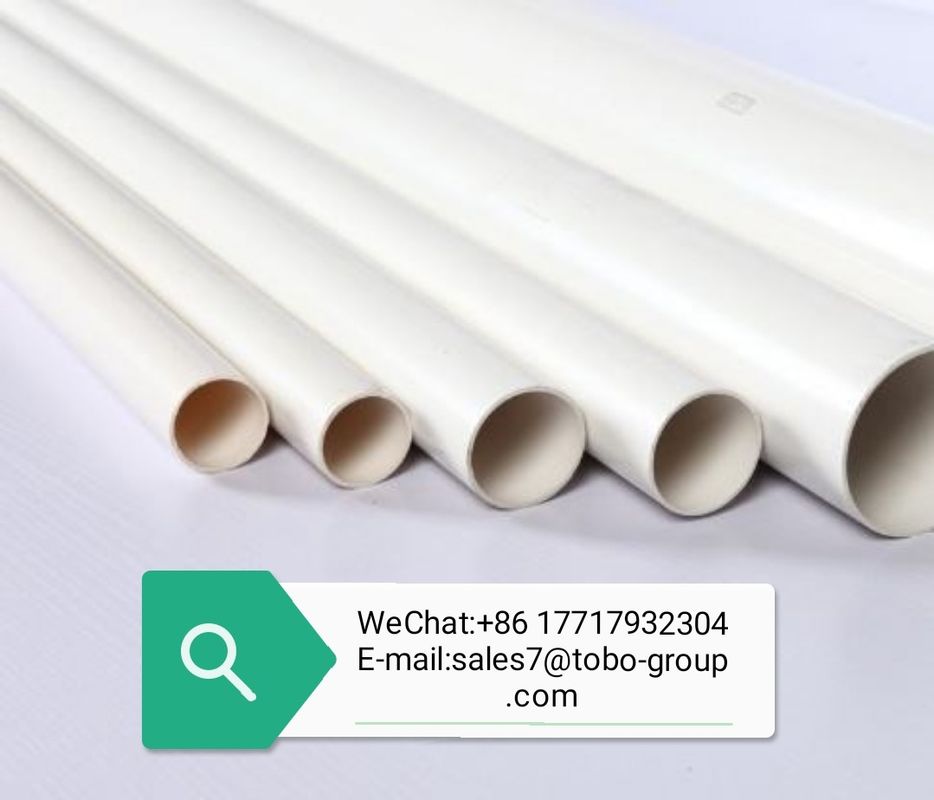

OEM ODM Extrusion 12m DIN8077 DIN8078 Water PVC Tube

OEM ODM Extrusion 12m DIN8077 DIN8078 Water PVC Tube
OEM ODM Extrusion 12m DIN8077 DIN8078 Water PVC Tube OEM ODM Extrusion 12m DIN8077 DIN8078 Water PVC Tube

Large Image :  OEM ODM Extrusion 12m DIN8077 DIN8078 Water PVC Tube

Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: ISO9001,ISO14001,CE,NSF,SGS,OHSAS,WRAS
Model Number: PVC Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 120M
Packaging Details: Carton or plastic bag, details depend on customer
Delivery Time: 5-30days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000KGS

OEM ODM Extrusion 12m DIN8077 DIN8078 Water PVC Tube

Description
Material: Plastic/PP/ABS/PC/PE/PS/TPE/TPR Model Number: PPR/ PVC/HDPE
Length: 3m-12m Thickness: 1.8-4.9mm
Standard: DIN8077, DIN8078, ISO15874 Product Name: PPR Pipe/ PVC Pipe
Color: White/Yellow/ Green Application: Delivery Water
Packing: Carton Or Plastic Bag
High Light:

DIN8078 Water PVC Tube

,

DIN8077 Water PVC Tube

,

OEM 12m Water PVC Tube

  Long Life High Stability PVC PP-R Cold Water Pipe PVC-Uh Water PVC Tube


Products Introduction

Detailed Information


Firm Name
Mould Width2mm~100mm with -/+0.1mm tolerance (own mould engineer and equipment)
Professional CapacityPlastic Extrusion and Co-extrusion machine/equipment
Raw MaterialsPVC,CPVC, UPVC, ABS,PC, PMMA, PP,PE/HDPE/LDPE, POM, PS,TPU, TPE, TPV, PETG...etc.
CertificationISO9001:2015,ROHS, REACH, UL, EN71-3, non-phthalate
Product DesignOEM/ODM (Plastic sheet profile is used widely over the world ,especially for this design)
Product ColorVarious Colors is ok
Package methodBased on customer's request/STD Carton/Pallet
MOQ/MPQBased on the production design/Spec.
Annual production4K Ton
FCA portShanghai
Delivery time10~20 days
Features of Plastic profile/sheet profile1. Healthy, conforming to drinking water standards
2. Resistant to high temperatures, good impact strength
3. Convenient and reliable installation, low construction expenses
4. Light weight, convenient to transport and handle, good for labor-saving
5. Smooth inner walls reduce pressure loss and increase flow speed
6. Sound insulation (reduce by 40% compared to galvanized steel pipes)
7. Extremely long usage life for at least 50 years



PVC-UH water supply pipe is made of polyvinyl chloride mixture with small required strength (MRS) greater than or equal to 25 MPa. It is extruded and has an integral steel framework sealing ring socket structure. It is abbreviated as "PVC-UH pipe" specifications: diameter range DN20mm-1600mm, pressure grade 0.63MPa-2.5MPa.
Color: In general, the color of the pipe is blue, which can also be determined by negotiation.

Features:
1. High intensity.
The designed stress is 25MPa, with good water pressure resistance and high ring stiffness, suitable for paving in the pipe gallery.
2. Good toughness.
It has good external impact resistance, good water hammer resistance, good crack crack resistance, and flat test can reach more than 40%.
3. Reliable connection and good tightness of connection system.
PVC-UH pipes are connected by steel frame forming rubber ring or large-diameter plastic pipe fitting, and its service life is synchronized with the pipe, which guarantees the service life of the whole pipe system over 50 years.
4. Good sanitary performance.
For pvc-uh water supply pipe adopts the unique green lead-free formula system instead of the traditional compound lead salt formula system, so it will not damage the water quality, it is health and non-toxic.
5. On-line hydraulic test, reliable quality.
Advanced production technology, higher testing requirements, and every pipe with 2 times nominal pressure to carry out hydraulic test on line to ensure 100% qualified rate.

Parameters:
Nominal pressure class and size of pvc-uh pipe (dn<90mm)

 S16S12.5S10S8S6.3S5S4
Nominal outside diameterSDR33SDR26SDR21SDR17SDR13.6SDR11SDR9
dn/mmNominal pressure(PN ) /MPa
 0.630.81.01.251.62.02.5
 Thickness en/mm
50-2.02.43.03.74.65.6
632.02.53.03.84.75.87.1
752.32.93.64.55.66.98.4
902.83.54.35.46.78.210.1


PVC-UH pipe nominal pressure rating and size (dn > 90mm)

Specification

OEM ODM Extrusion 12m DIN8077 DIN8078 Water PVC Tube 0


Application&Testing

OEM ODM Extrusion 12m DIN8077 DIN8078 Water PVC Tube 1OEM ODM Extrusion 12m DIN8077 DIN8078 Water PVC Tube 2

FAQ
1. Are you a manufacture or trading company?
We are a well-known solution provider for plastic piping system in the world with 10 years professional experience. Welcome to visit and investigate us, you would find the difference with others.
2. Do you offer OEM service?
Yes. We have our famous brand name. But we can offer OEM service also, with same quality. We can review and accept customer design, or design based on customer requirements, by our professional R&D team.
3. Why Choose Us?
Trust in our experience.
We supply many different standards professional products for more than 60 countries and areas in the world.
Trust in our authority.
We had many professional inspections and certificates. We had passed inspections of CE, NSF, SGS, and get the certificates of ISO 9001, ISO 14001, OHSAS 18001, and WRAS, and so on.
Trust in our solutions.
We have professional R&D team, QA&QC team, marketing team. We have many patents and awards, can supply highest quality OEM products, and help you and do with you to settle any kind of logistical problems.
Trust in our production capacity.
We have more than 30 pipe extruding machines, and 200 injection molding machines. And those figures still increase each year.
4. How to Get a Sample?
Please apply sample.
We can apply free sample for inspection, after the prices confirmed.
Sample is free.
We would supply you sample for free, and freight is collected, if you need a sample to confirm. You also can pay freight to us in advance, and let us prepaid freight, if you thought the prepaid freight is lower than collected freight.
Freight is free.
We will undertake the freight, and pay the money into your deposit, if you give the order to us finally.

OEM ODM Extrusion 12m DIN8077 DIN8078 Water PVC Tube 3
