Construction Alloy Steel NipoFlanges 2" X 1.1/2" 150LB RF 125AARH B462 N08020

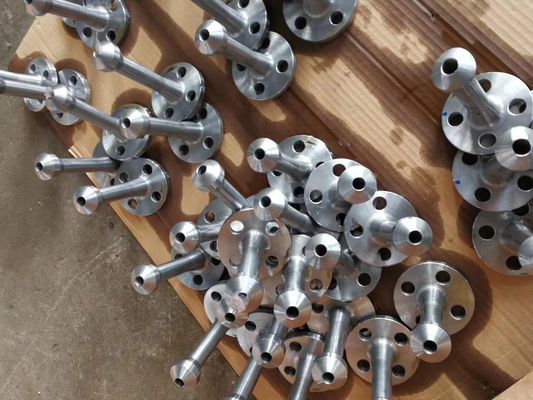

Large Image : Construction Alloy Steel NipoFlanges 2" X 1.1/2" 150LB RF 125AARH B462 N08020

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	B462 N08020

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	Regular shipping packaging or depends on customer's requirement
Delivery Time:	15 Working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10 Ton Per Month

Contact Now

Construction Alloy Steel NipoFlanges 2" X 1.1/2" 150LB RF 125AARH B462 N08020

Description

Product Name:	Weldoflange	Material:	B462 N08020
Standard:	ASME	MOQ:	1PC
Technic:	Forged	Application:	Construction
Size:	2" X 1.1/2"	Pressure:	150LB
Highlight:	forged steel flanges , spectacle blind flange

2" x 1.1/2" 150LB RF WELDOFLANGE125AARH B462 N08020

N08020 Pipe Flanges Specifications
Specifications	ASTM B462
Size	1/2″NB TO 60″NB
Standards	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Production Name	Nickel Alloy Weldoflange
Standard	ASME/ANSI B16.9, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC.
Size	1/2’’~48’’(Seamless);16’’~72’’(Welded)
Wall thickness	Sch5~Sch160XXS
Manufacturing process	Push, Press, Forge, Cast, etc.
Nickel alloy steel	Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN; Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL; Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; Alloy 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Alloy C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Alloy 31/NO8031/1.4562; Alloy 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; Inconel 783/UNS R30783; NAS 254NM/NO8367; Monel 30C Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952 Nimonic 263/NO7263 Nimonic 90/UNS NO7090; Incoloy 907/GH907; Nitronic 60/Alloy 218/UNS S21800
Package	Wooden cases, pallets, nylon bags or according to the customers' requirements
Delivery time	10-100 days depending on quantity
Payment terms	T/T or Western Union or LC
Shipment	FOB Tianjin/Shanghai, CFR, CIF, etc
Application	Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks	Other materials and drawings are available.
The third party inspection:	BV,SGS,LOIYD,TUV,and other party alloyed by clients.

Chemical Composition

Ni	Cr	Cu	Mo	Nb	C	Mn	P	S	Si
32.0-38.0	19.0-21.0	3.0-4.0	2.0-3.0	≤1.0	≤0.07	≤2.0	≤0.045	≤0.035	≤1.0

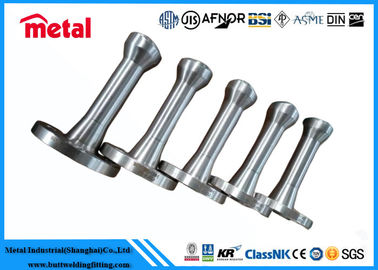

ASME/ANSI B16.5 stainless steel RF nipo-flange

Nipoflange is used in the pipe industry like a weldolet or a nipolet for a 90° branch connection.
A Nipoflange is a combination of weldolet, nipolet and flange.
Two different pipe branch connectionsOn the run pipe side a nipoflange is designed like a weldolet.
That means the branch connection on the run pipe side is a welding connection. On the other side there
it has a flange connection. The flange connection can be designed according to customers requirements
(acc. To DIN or ANSI).

Our advangtage

1) Raw material use 100% material steel
2) Good service
3) Competive price
4) Fast delivery
5)High quality products

Our main products as follows:

Stainless steel pipe & tube

(seamless pipe / welded pipe / square pipe / rectangular tube,duplex stainless / inconel tube)

Carbon / alloy steel pipe & tube

(seamless pipe / ERW / SSAW / LSAW / UOE / hollow section pipe / Galvanized Pipe)

Tubing and casting

(line pipe,water pipeline,gas pipeline,oil pipeline)

Special steel tube

(copper tube/titanium tube/aluminium tube/nickel alloy )

steel bar

(round bar/angle steel /flat steel/channel steel/steel wire)

Pipe Fittings

(eblows, equal / reducing tees, concentric/eccentric reducers, caps, crosses, bends, dish end/end cup, stub ends, unions, couplings / hex couplings, swage nipples , nipples, hex. plug, sockolet, weldolet, thredolet, etc)

Flange

(DIN flange/ AISI flange/blind flange/welding flange/stainless flange/slip on flange)

steel sheet / coil

(stainless steel/carbon steel/alloy steel/galvanized steel/aluminium )

Valve

(ball valve/gate valve/butterfly valve/globe valve/swing check valve/ check valve)
