Product Details:
|
| Product Name: | Nipo Flange | Material: | Alloy N |
|---|---|---|---|
| Standard: | ASME | Type: | Nipo Flange |
| Technique: | Forged | Section Shape: | Round |
| High Light: | reducing weld neck flange,spectacle blind flange |
||
Specifications
Grades: Alloy N
Standards: ASTM. ASME ANSI B16.9. B16.28. MSS-SP-43.
Specifications: ASTM B366 / ASME SB366
Size: 1/2'' NB TO 12'' NB IN
Schedule: Sch5 TO Sch XXS
Wall Thickness: From 2 to 40 mm
Type: Seamless / Welded / Fabricated

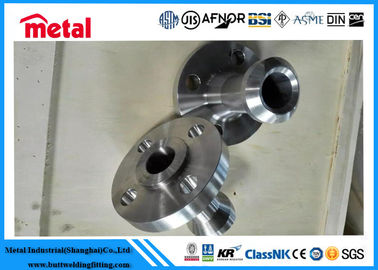

ASME/ANSI B16.5 stainless steel RF nipo-flange

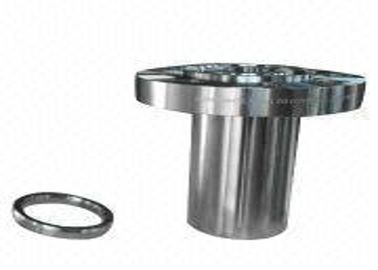

Nipoflange is used in the pipe industry like a weldolet or a nipolet for a 90° branch connection.
A Nipoflange is a combination of weldolet, nipolet and flange.
Two different pipe branch connectionsOn the run pipe side a nipoflange is designed like a weldolet.
That means the branch connection on the run pipe side is a welding connection. On the other side there
it has a flange connection. The flange connection can be designed according to customers requirements
(acc. To DIN or ANSI).
| Product Name | NIPOFLANGE |
| Size | 1/2’’~10’’(Seamless);12’’~72’’(Welded) |
| Thickness | Sch5S~Sch160XXS |
| Manufacture Standard: |
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90, GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631, |
| Duplex steel |
UNSS44627, UNS S42900, UNS S43000, UNS S43036, UNS S44600, UNS S32101, UNS S32750, UNS S32950, UNS S32760, UNS S32974 |
| Nickel alloy steel | Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; Alloy 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Alloy C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Alloy 31/NO8031/1.4562; Alloy 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; Inconel 783/UNS R30783; |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Chemical Properties
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | N |
| Alloy B-2 | 0.04-0.08 | 1.00 | 1.00 | 0.015 | 0.02 | 6.0-8.0 | 15.0-18.0 | Bal | Bal |
Mechanical Properties
| Density | Melting Point |
| 8.78 g/cm3 | 1300-1400℃ |
Application
As previously mentioned, the alloy is mainly used as a container material for molten fluoride salts.
MACHINABILITY
The alloy work hardens rapidly, generates high heat during cutting, welds to cutting tool surface and offers high resistance to metal removal because of its high shear strength.
Machines should be rigid and overpowered as much as possible
Workpieces and tools should be held rigid.
Tools must be sharp: carbide tipped should be used for most applications but high-speed steel tools may be used for short production runs.
Heavy, constant feeds should be used.
WELDABILITY
This alloy may be welded by the gas-metal-arc, gas-tungsten-arc and shielded-metal-arc processes. Parts may normally be used in the as-welded condition, but a post-weld anneal will result in optimum corrosion resistance.
