Product Details:
|
| Product Name: | Pipe Flange | Material Grade: | UNS N08020 |
|---|---|---|---|
| Standard: | ASME B 16.5 | Type: | Welding Neck Flange |
| Technic: | Forged | Thickness: | SCH40 |
| High Light: | forged steel flanges,spectacle blind flange |
||

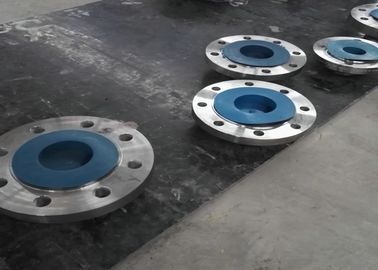

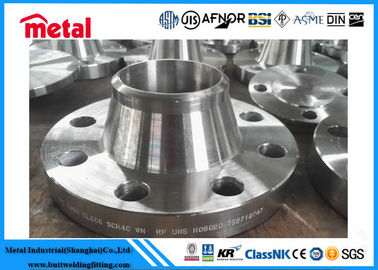

Nickel Alloy Pipe Flange UNS N08020 Welding Neck Flange WN RF SCH40 B 16.5
Specifications
1. Nickel Alloy Pipe Flange
2. Size: 1/2’’—60’’
3. ISO9001,ISO9000
4. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore,
Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on
5. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform
| Product Name | Nickel Alloy Pipe Flange |
| Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B/B16.48, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Type | Special Flange: According to the drawing Picture |
| Materials |
Copper Nickel Alloy: ASTM B466 UNS C70600, ASTM B466 UNS C71500, CUNI90/10, CUNI70/30 Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 |
| Dimension | (150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300 |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Inter granular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement |
| Certificates | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Advantages |
1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, Petrol Ecuador, SHELL, etc.) |
WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655,
DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634,
DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Our advangtage
1) Raw material use 100% material steel
2) Good service
3) Competive price
4) Fast delivery
5)High quality products
Material Grade
| Trade Name | ASTM Pipe | Pipe Fittings | UNS | Forging & Flanges |
| Monel@ 400 | B165 | B366 WPNC | N04400 | B564 N04400 |
| Inconel@ 600 | B167 | B366 WPNCI | N06600 | B564 N06600 |
| Inconel@ 625 | B444 | B366 WPNCMC | N06625 | B564 N06625 |
| Incoloy@ 800 | B163 | B366 WPNIC | N08800 | B564 N08800 |
| Incoloy@ 800H | B407 | B366 WPNIC10 | N08810 | B564 N08810 |
| Incoloy@ 800HT | B407 | B366 WPNIC11 | N08811 | B564 N08811 |
| Incoloy@ 825 | B423 | B366 WPNICMC | N08825 | B564 N08825 |
| Hastelloy@ B2 | B619/622 | B366 WPHB-2 | N10665 | B564 N10665 |
| Hastelloy@ C276 | B619/622 | B366 WPHC276 | N10276 | B564 N10276 |
| Hastelloy@ C22 | B619/622 | B366 WPHC22 | N06022 | B564 N06022 |
| Carpenter 20Cb-3@ | B729 | B366 WP20Cb | N08820 | B462 N08820 |
| SANICRO 28@ | B668 | N08028 |
Chemical Composition
| Ni | Cr | Cu | Mo | Nb | C | Mn | P | S | Si |
| 32.0-38.0 | 19.0-21.0 | 3.0-4.0 | 2.0-3.0 | ≤1.0 | ≤0.07 | ≤2.0 | ≤0.045 | ≤0.035 | ≤1.0 |
Packaging & Shipping
| Packaging: | In wooded cases , pallets or according to clients' requirements |
| Shipping: | Tianjin port, Shanghai port and the other main ports in China |
