Product Details:
|
Thickness: | 1.8 - 22 Mm | Section Shape: | Round |
---|---|---|---|
Outer Diameter: | 21.3 - 660 Mm | Material: | API 5L GRB /A106 GRB |
Grade: | GR.A-X70, N80, | Certificate: | ISO,CE,SGS,BV,TUV |
Highlight: | epoxy coated ductile iron pipe,plastic coated steel pipe |

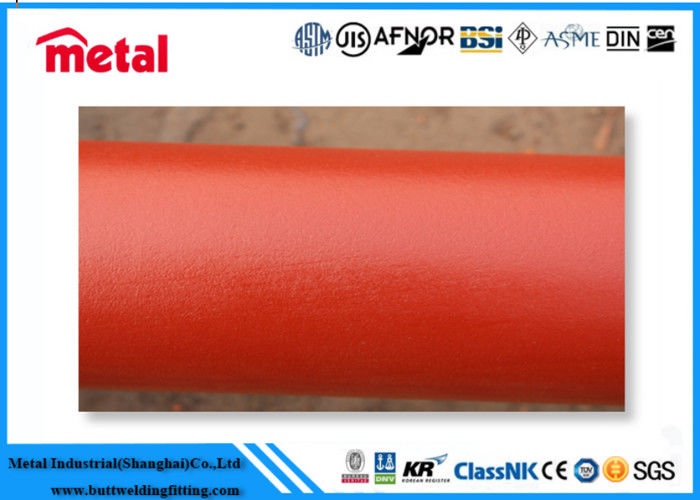

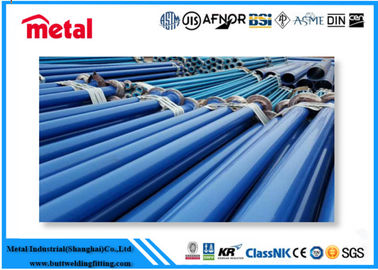

SEAMLESS PIPE API 5L GRB /A106 GRB COATIGN EPOXI 300 MICRONS Plastic Coated Steel Pipe
Quick Details
Thickness | 1.8 - 22 mm | Section Shape | Round |
Outer Diameter | 21.3 - 660 mm | Place of Origin | China (Mainland) |
Certification | API | Surface Treatment | Bare,lightly oiled,black painting,Hot galvanized, 3LPE, 2LPE |
Product | erw steel pipe / Welded steel pipe | Standard | API 5L, API 5CT, ASTM A53,EN 10219,EN10217,JIS G3444 |
Grade | GR.A-X70, N80, Q195-Q345, ST35-ST52 | Material: | GR.B,X42,X52,X60,X65,X70 |
Technology | Cold Drawn, Hot Rolled, Hot Expanded | keywords | carbon steel erw pipe specifications |
Certificate | ISO,CE,SGS,BV,TUV | Brand | TOBO |
Supply Ability | 200000 Ton/Tons per Month | Technique | ERW |
API 5L ASTM A252 Spiral Weld Steel Pipe, Coated SCH10 SCH20 iron pipe clothes rack with 3PE 3PP coating anticorrosion and epoxy
coating pipe
Product details
3LPP welded pipe/3LPP seamless steel pipe,The three layers Polyethylene(3PE/3LPE) line pipe consists of a high performance fusion bonded epoxy(FBE) layer, an adhesive layer and an outer layer of high density polyethylene. The three layers external coating has excellent resistance to abrasion, wear, acid, alkali and cathodic disbonding, etc.
TYPE:SSAW /LSAW / ERW or Seamless steel pipe
COATING STANDARD: DIN30670,CSA Z245.21,CSA Z245.20, AS1518, AWWA C213
PIPE STANDARD: API 5L, ASTM A252, EN10219, EN10217, ISO 3183, GOST52079,GOST20295
SIZE: O.D. 114.3—3020 mm W.T. 5—60mm
MATERIAL: Q195,Q235,Q345,10#,20#,L245(B),L290(X42),L320(X46),L360(X52),L390(X56),L415(X60),
L450(X65),L485(X70),L290NB/MB(X42N/M),L360NB/MB(X52N/M),L390NB/MB(X56N/M),415NB/MB(X60N/M),
L450MB(X65),L485MB(X70)
APPLICATION: gas oil chemical mine power thermodynamics and water industries for transportation, bridge pipeline.
Operating Temperature: -40° C to 85° C
3LPP anticorrosive three layer polypropylene coating conforming to DIN 30678 standard
his anti-corrosion coating consists of the following layers:
epoxide layer of minimal thickness of 80 µm
,
polyethylene copolymer layer of minimal thickness of 250 µm
,
polypropylene layer of minimal thickness between 1.8 and 2.5 mm
API 5L Gr.B PSL1 carbon steel pipe 3PE coating Or Painting
OD:21mm-914mm
WT:2.77mm-40mm
Length:5.8m,6m,11.8m,12m etc.
Surface treatment:Painting black, red, FBE coating,3PE coating,PP coating,
hot dipped galvanized,
Packages:bundles with steel strips, bulk package.packed by iron frame
Pipe standard:API 5L Gr.B, X42,X46,X52,X56,X60, Q192,Q235,Q345B,ASTM A106 Gr.B ASTM A53,ASTM A179 ASTMA192 ASTM A210
Minimum order:5tons
