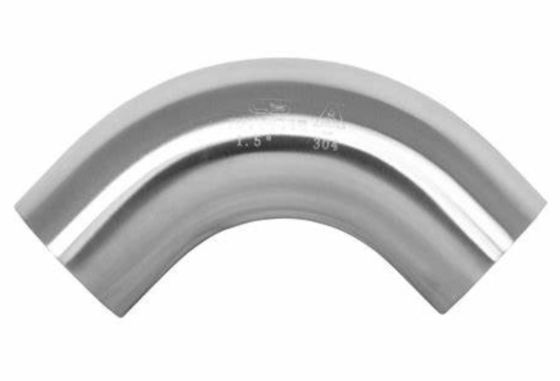

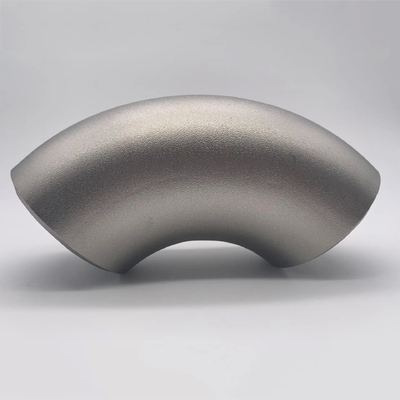

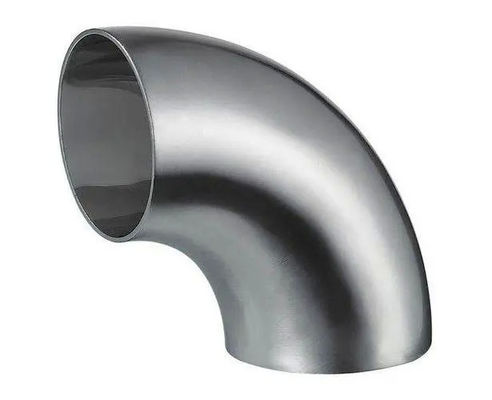

ASME B16.9 Butt Welding Elbow LR/SR Customizable Angle Carbon Steel Stainless Steel NPS1/2"-60" Fast Delivery Low MOQ

ASME B16.9 Butt Welding Elbow LR/SR Customizable Angle Carbon Steel Stainless Steel NPS1/2"-60" Fast Delivery Low MOQ

1. Under the standard of ASME B16.9, sizes available range from 1/2" to 60".

2. Available material: various stainless steel, namely 304L and 316L, various carbon steel, etc.

3. HIgh corrosion resistance, customizable surface treatment.

4. Used for pipe turning points, creating reliable connection with zero chance of leakage when properly welded.

5. Available along with other product of ours, when used in combination could offer you highest safty level.

6. High cost-effect performance, ensures our customer high quality services.

Brand Name	TOBO/Metal
Product Name	Butt Welding Elbow
Certification	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin	Shanghai China (Mainland)
Material	ASTM	Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.
		Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.)
		Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3
	DIN	Carbon steel:St37.0,St35.8,St45.8
		Stainless steel:1.4301,1.4306,1.4401,1.4571
		Alloy steel:1.7335,1.7380,1.0488(1.0566)
	JIS	Carbon steel:PG370,PT410
		Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
		Alloy steel:PA22,PA23,PA24,PA25,PL380
	GB	10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo
Standard Specification		ASTM,JIS,BS,DIN,UNI etc.
Connection		Welding
Shape		Customizable Angle
Technics		Forged
Qualification		ISO9001, API,CE
Equipment		Pushing Machine,Beveling Machine,Sand Blasting Machine
Thickness		Sch10-Sch160 XXS
Size		Seamless 1/2" To 60"
Surface of Finish		Antirust Oil,Hot Galvanized
Pressure		Sch5--Sch160,XXS
Standard		ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2
The third party inspection		BV, SGS, LOIYD, TUV, and other party alloyed by clients.
Remark		Also can supply IBR fittings and Specialized NACE & HIC Fittings
Marking		Registered logo,Heat Number,Steel Grade,Standard,Size
Minimum Order Quantity		10pcs
Supply Ability		3,0000pcs per month
Price		Depending on quantity
Payment Terms		T/T or Western Union or LC
Supply Ability		3,0000pcs per month
Delivery Time		10-50 days depending on quantity
Packing		PLY-wooden case or pallet or as for clients' requirements
Application		Petroleum, chemical, machinery, electric power, shipbuilding, papermaking,
Advantages		1. 20 + years of production experience at your service. 2. The fastest delivery 3. The lowest price 4. Most comprehensive standards and materials for your choice. 5. 100% export. 6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
