Metal Seal 3 pieces Union Stainless steel 316/316L,304,304L,6000 PSI 3000#,6000# Alloy Material

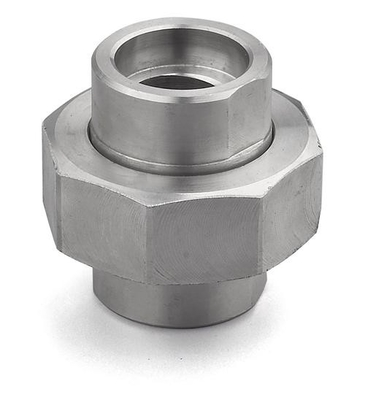

Large Image : Metal Seal 3 pieces Union Stainless steel 316/316L,304,304L,6000 PSI 3000#,6000# Alloy Material

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	Alloy Steel Pipe Fittings

Payment & Shipping Terms:

Minimum Order Quantity:	one piece
Price:	negotiable
Packaging Details:	Standard export sea-worthy packing
Delivery Time:	15 workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3,0000pcs per month

Contact Now

Metal Seal 3 pieces Union Stainless steel 316/316L,304,304L,6000 PSI 3000#,6000# Alloy Material

Description

Material:	Alloy	Technics:	Forged
Standard:	DIN,ANSI,BS,ASTM	Size:	Customized Size
Color:	Can Be Customed	Name:	Pipe Fitting
Package:	Box,plywood Case	Head Code:	Other
Highlight:	6000 PSI Metal Seal , 316L Metal Seal , 304L Metal Seal

Metal Seal 3 pieces Union Stainless steel 316/316L,304,304L,6000 PSI 3000#,6000# Alloy Material

1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.

-LWUF Female Union
Order information	T	L		D		W (HEX)		W (HEX)
Order information	(NPT)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
-LWUF-2	1/8	1.81	46.0	0.27	6.9	0.94	23.81	1.13	28.6
-LWUF-4	1/4	2.34	59.4	0.36	9.1	1.19	30.16	1.38	35.1
-LWUF-6	3/8	2.50	63.5	0.52	13.2	1.31	33.34	1.50	38.1
-LWUF-8	1/2	2.69	68.3	0.62	15.7	1.63	41.28	1.75	44.4
-LWUF-12	3/4	3.12	79.2	0.88	22.4	1.88	47.63	2.00	50.8
-LWUF-16	1	3.56	90.4	1.03	26.2	2.38	60.33	2.50	63.5

Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery. Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability
1.Custom design, CAD drawing
2.P&ID
3.Component selection
4.Bill of material
5.Professional services such as bending and welding
6.Testing to guarantee the system
7.Professional packaging and delivery

Q1: What is product can you buy from Jiantuo? A1: Various sizes and models of flanges and pipe fittings, and we accept customized.

Q2:Can you provide samples? A3:Sure, we don't want there to be any mistakes in mass production.And we are pleasure to show our quality for you.

Q3:How is quality ensured? A4:Once your order is confirmed, we will perform a full review to point out any issues that our engineers feel may affect the quality of your parts. Each batch of goods must have QC inspections for many times.

Q4:What’s your delivery time? A5:Normally in 15-40 days, we will make the delivery as soon as possible with the guarantee quality.
