Product Details:
|
| Material: | Alloy Steel | Size: | 1/2''-72'' |
|---|---|---|---|
| Product Name: | Elbow | Connection: | Welding |
| Head Code: | Round | Brand: | TOBO |
| Radius: | LR(1.5D), SR(1D), 2.5D, 3D,5D And So On | Place Of Origin: | China |
| High Light: | Sch80 Alloy Steel Seamless Elbows,Long Radius Alloy Steel Seamless Elbows,ASTM A234 90 Degree Elbow |
||

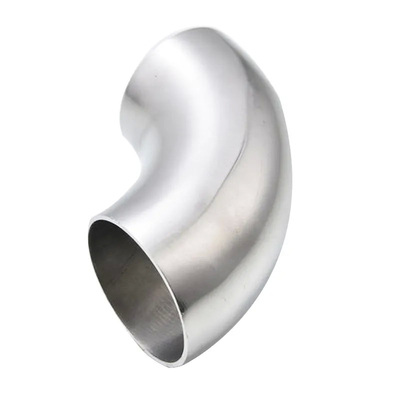

ASTM A234 WP11 90 Degree Elbow 3" Sch80 Long Radius Alloy Steel Seamless Elbows
In piping systems, elbows are pipe fittings that change the direction of the piping. According to the Angle points, there are 45° and 90°180°, the three most commonly used, in addition, according to the engineering needs also include 60° and other abnormal Elbow.
| Item | Elbow |
| Standard | JIS B2311,B2312,B2312,B2316ASME/ANSI B16.9,B16.11,B16.28,ASTM A403MSS SP-43,SP-83,SP-97GB 12459,GB/T 13401-2005,GB/T 14383-2005,GB/T10752-1995SY/T0510-1998,ST5257-91 |
| Technique | Welded elbow,punched elbow,Hot-pressed elbow,forged elbow |
| Radius | Long radius,Short radius ,R=1.5D,R=3D,R=5D,female,male,etc |
| Material | Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321,WP310S, WP347 & WPS31254 ,WP904L Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91 |
| Type | 15 ° ,30° ,45° ,60°,90° , 180°,male and female |
| Outside diameter | 1/8"-100" (6-2500mm) |
| Wall thickness | SCH5-SCH 160S ,SCH XXS 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb |
| Surface | Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU,etc |
| Price term | TT,Western Union,D/P,etc |
| Package | Standard export package,by wooden box,or as required |
| Application | Stainless steel elbow is mainly used in pipe installation, a connecting pipe fitting, |
| Used for connection pipe bend. Connect two of the same or different nominal diameter pipe. |
1. 20 + years of production experience at your service.
2. The fastest delivery
3. The lowest price
4. Most comprehensive standards and materials for your choice.
5. 100% export.
6. Our products export to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
Packaging Details: Pallet/Wooden Case or as per your Specification
Delivery Detail: Shipped in 30 days after payment
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
