Duplex Stainless Steel Flange Threaded Flange UNS S31803 RTJ 600# ASME B16.5

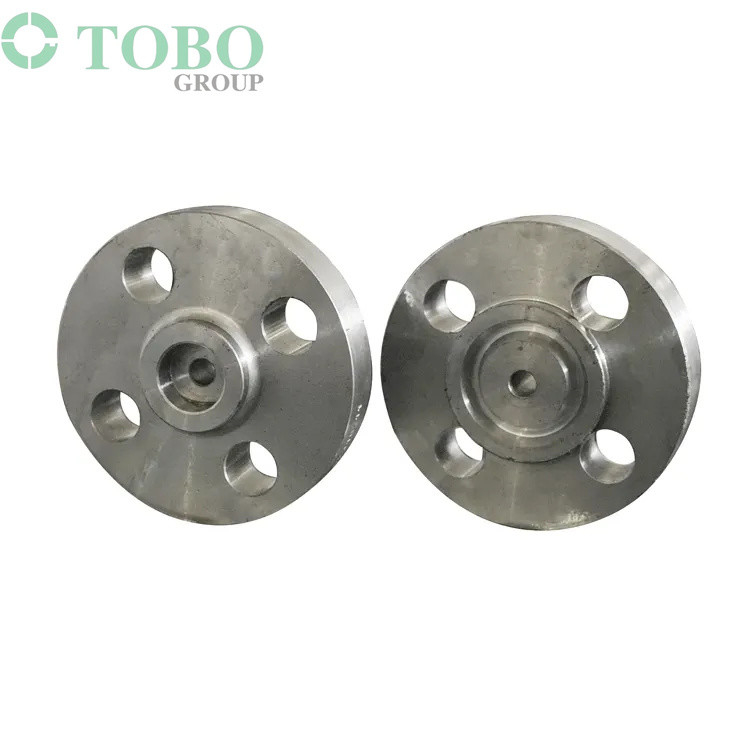

Large Image : Duplex Stainless Steel Flange Threaded Flange UNS S31803 RTJ 600# ASME B16.5

Product Details:

Place of Origin:	China
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	UNS S31803

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Depending on quantity
Packaging Details:	Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Delivery Time:	15-30 working days depending on quantity
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10 ton/month

Contact Now

Duplex Stainless Steel Flange Threaded Flange UNS S31803 RTJ 600# ASME B16.5

Description

Product Name:	Duplex Stainless Steel Flange	Standard:	ASME B16.5
Pressure:	600#	Type:	TH Flange
Material Grade:	UNS S31803
Highlight:	RTJ Duplex Stainless Steel Flange , Duplex Stainless Steel Flange UNS S31803

Duplex Stainless Steel Flange Threaded Flange UNS S31803 RTJ 600# ASME B16.5

Specifications
1.Super Duplex Stainless steel flange
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia

Threaded flange is a non-welded flange that processes the inner hole of the flange into a pipe

thread and connects with the threaded pipe. Compared with flat welding flanges or butt welding

flanges, threaded flanges have the characteristics of convenient installation and maintenance,

and can be used on pipelines that are not allowed to be welded on some sites. The alloy steel

flange has sufficient strength, but it is not easy to weld, or the welding performance is not good,

you can also choose the threaded flange. However, under the condition that the temperature of

the pipeline changes sharply or the temperature is higher than 260 ° C and lower than -45 ° C,

it is recommended not to use the threaded flange to avoid leakage.

flangeType	Stainless Steel Flanges ASTM A 182, GR F1, F11, F22, F5, F9, F9 WN SO BL JIN ECT
Standard	ASME/ANSI B16.5
Size	1/2’’~60’’
Pressure Rate	150lb to 2500lb
Manufacturing process	Push, Press, Forge, Cast, etc.
Material	stainless steel
Carbon steel	ASTM A 105
Allloy steel flange	ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8
Stainless Steel flange	ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H
Nickel Alloys Flanges	Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys Flange	Copper, Brass & Gunmetal
Manufacture Standard	ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10
Package	Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ	1pcs
Delivery time	10-100 days depending on quantity
Payment terms	T/T or Western Union or LC
Shipment	FCA Tianjin/Shanghai, CFR, CIF, etc
Application	Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks	Other materials and drawings are available.
