Product Details:
|
| Place Of Origin: | China | Application: | Electric,aviation, Instruments,instrumentation,chemical Industry |
|---|---|---|---|
| Shape: | Round | Size: | Customized |
| Processing Service: | Bending, Decoiling, Welding, Punching, Cutting | Type: | Alloy Steel Flange |
| Brand: | TOBO | Standard: | DIN,ANSI,ISO,ASME,JIS |
| High Light: | Weld Neck Flange 12",Socket Weld Neck Blind Flange,ASME B16.47 Alloy Steel Flange |
||

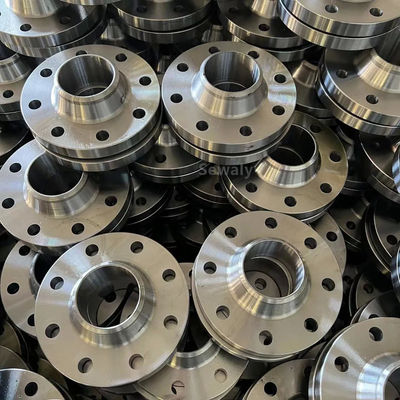

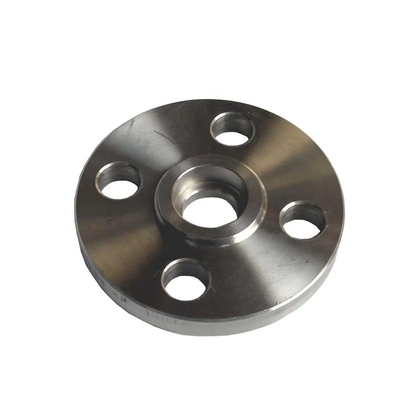

AMSE B16.5 B16.47 Alloy Steel Flange Socket Weld Neck Blind Flange 12" 3061 RF FF
| Socket Weld Pipe Flanges | ||
| Flange Type | Weld Neck Flange, Socket Weld Flange, Slip On Flange, Blind Flange, Thread Flange, | |
| Lap Joint Flange, Plate Flange, Orifice Flange, Spectacle Flange, Figure 8 Flange, | ||
| Paddle Blank, Paddle Spacer, Anchor Flange, Single Blind, Ring Spacer, | ||
| Reducing Socket Weld flange, Reducing Weld Neck flange, Long Weld Neck Flange | ||
| SAE Flanges, Hydraulic Flanges, | ||
| Customized Flanges with drawing. | ||
| Material | Carbon steel | A105, A105N, ST37.2, 20#, 35#, C40, Q235, |
| A350 LF2 CL1/CL2, A350 LF3 CL1/CL2, | ||
| A694 F42, F46, F50, F60, F65, F70, | ||
| A516 Gr.60, Gr.65, Gr.70 | ||
| Alloy steel | A182 F11, A182 F22 | |
| Austenitic stainless steel | A182 F304/304L, F316L, A182 F316H, | |
| F310, F321, F321H, F347, F347H | ||
| Duplex stainless steel | A182 F51 | |
| Super Duplex stainless steel | A182 F53, A182 F55, A182 F60 | |
| Nickel alloy | Nickel 200, Nickel 201 | |
| Titanium alloy | Titan Gr.1, Titan Gr.2 | |
| Hastelloy | Hastelloy C-276, Hastelloy C-22, Hastelloy C-4 | |
| Inconel | Inconel 600, Inconel 625, Inconel 800, | |
| Inconel 800H | ||
| Monel | Monel 400, Monel K500 | |
| Size | DN15 - DN3000 | |
| Pressure | Class 150# - 2500#, PN 2.5- PN40, JIS 5K - 20K, 3000PSI, 6000PSI | |
| Connection Way | Flat Face (FF), Raised Face (RF), Ring Joint (RTJ), MFM, TG | |
| Standard | ASME, ANSI, DIN, EN, BS, JIS, GB, AWWA, API, SAE, GOST, MSS | |
| Technical | Forged | |
| Package | Plywood Case/ Wooden Case/ Customized Package | |
| Brand | ST | |
| Certificates | API, ISO, PED, EC, EU | |
1. 20 + years of production experience at your service.
2. The fastest delivery
3. The lowest price
4. Most comprehensive standards and materials for your choice.
5. 100% export.
6. Our products export to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
Packaging Details: Pallet/Wooden Case or as per your Specification
Delivery Detail: Shipped in 30 days after payment
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
