Product Details:
|
| Material: | B363 WPT2 | Connection: | Welding |
|---|---|---|---|
| Head Code: | Round | Type: | Tee |
| Application: | Connect Pipes | Usage: | Oil Gas Water Industrial,oil |
| High Light: | WPT2 Alloy Steel Pipe Fittings,Seamless Butt Welding Target Tee,Titanium B363 Welding Target Tee |
||

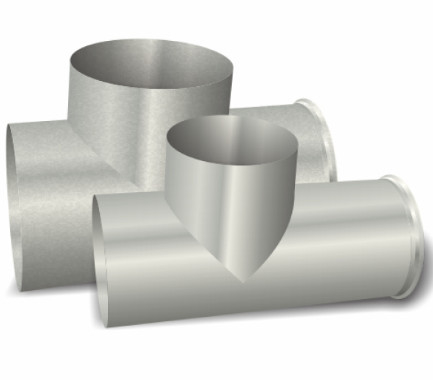

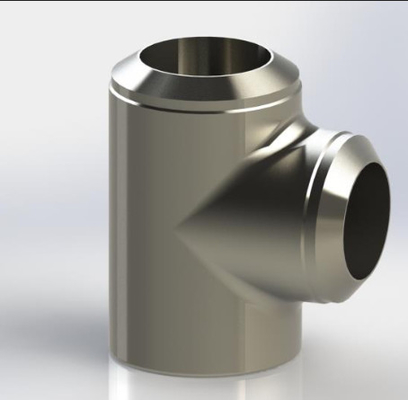

Seamless Butt Welding Target Tee 4"X SCH-80S Titanium B363 WPT2 Pipe Fittings
| Seamless Butt Welding Target Tee 4"X SCH-80S Titanium B363 WPT2 Pipe Fittings | ||
| MATERIAL | Carbon Steel : | |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn, | ||
| DIN St37, St45.8, St52.4,St.35.8,St.35.8. | ||
| Stainless Steel: | ||
| 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti | ||
| 00Cr17Ni14Mo2 304 304L 316 316L | ||
| Alloy Steel: | ||
| 16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1, | ||
| A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70 | ||
| STANDARD | ASTM / JIS / DIN / BS / GB/GOST | |
| MODEL | 1.Tee(Straight ) | |
| 2.Tee(Reducing) | ||
| TYPE | Seam Or Seamless | |
| SURFACE | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize | |
| WALL THICKNESS | SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60, | |
| SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM | ||
| SIZE | 1/2"-48"(Dn15-Dn1200) | |
| CONNECTION | Welding | |
| SHAPE | Equal, Reducing | |
| CERTIFICATE | ISO9001 SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED | |
| APPLICATION | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc | |
| RELATED PRODUCTS | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Malleable iron pipe fittings | 4. Pipes | |
| 5. High-pressure fittings | 6. Valves | |
| 7. P.T.F.E .thread seal tape | 8. Brass fittings | |
| 9. Ductile iron pipe fittings | 10. Copper fittings | |
| 11. Sanitary fittings, etc,. | 12. Grooved fittings | |
| Customers’ drawings or designs are available. | ||
| PACKAGE | 1> 1/2" - 2" in cartons. | |
| 2>Above 2" in wooden cases. | ||
| Big size is workable by pallets. | ||
| DELIVERY DETAILS | According to the quantities and specifications of each order. | |
| Normal delivery time is from 15 to 30working days after receiving the deposit. | ||
Introduction
Target/Cushion Tee are manufactured from forged material. Their main characteristic is a blind branch.
Through the analysis of the way in which the corrosion has an effect on the surface of the Target/Cushion Tee blind branch, the level of corrosion of the piping material can be measured.
In case Target/Cushion Tee are manufactured from forged material, it is possible to manufacture dimensions and forms according to customers' requests.
Overview and features:Hastelloy C22
Hastelloy C22 alloy has good resistance to pitting, crevice corrosion and stress corrosion cracking. It has excellent antioxidant water medium capabilities, including mixed acids of wet chlorine, nitric acid, or oxidizing acids containing chloride ions. At the same time, Hastelloy C22 alloy also has ideal resistance to reducing and oxidizing environments encountered during the process. With this versatile performance, it can be used in some challenging environments or in various production purpose factories. Hastelloy C22 alloy has exceptional resistance to various chemical environments, including strong oxidizing substances, such as ferric chloride, copper chloride, chlorine, thermal pollution solutions (organic and inorganic), formic acid, acetic acid, acetic anhydride, seawater and salt solutions. Hastelloy C22 alloy has the ability to resist the formation of grain boundary precipitation in the welding Heat-affected zone, so that it can also adapt to the application of many chemical processes in the welding state.
Corrosion resistance
Hastelloy C22 alloy is suitable for various chemical process industries containing oxidizing and reducing media. The high content of molybdenum and chromium makes the alloy resistant to chloride ion corrosion, and tungsten further improves its corrosion resistance. Hastelloy C22 is one of the few materials that can withstand the corrosion of moist chlorine gas, hypochlorite, and chlorine dioxide solutions. This alloy has significant corrosion resistance to high concentrations of chloride solutions (such as iron chloride and copper chloride).
