Product Details:
|
| Place Of Origin:: | China | Brand Name:: | TOBO |
|---|---|---|---|
| Model Number:: | Stainless Steel, Steel, Stainless Steel 304 316 | Sample:: | Availabe |
| Surface Treatment:: | Polishing | Process:: | Forged |
| Size:: | Customized Size | Pressure:: | 150#-2500# 5K-20K |

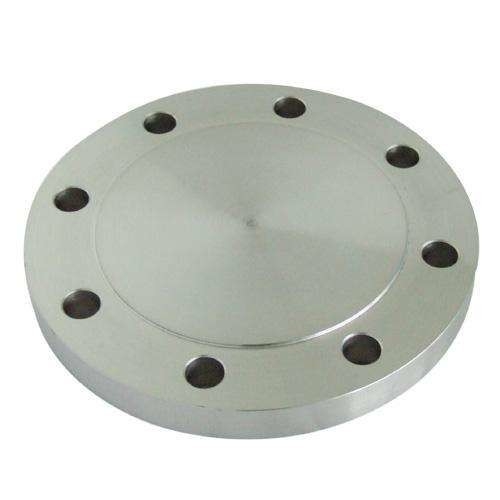

| High Light: | Polishing Alloy Steel Flanges,C276 Nickel Alloy Steel Flanges,Forged Nickel Alloy Steel Blind Flange |
||
See details as below:
| Product Type | Alloy steel Flange |
| Standard | Alloy 31 |
| Size | 1/2’’~48’’(Seamless);16’’~72’’(Welded) |
| Wall thickness | Sch5~Sch160XXS |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel |
| Carbon steel | ASTM A234 WPB, WPC; |
| Stainless steel |
304/SUS304/UNS S30400/1.4301 304L/UNS S30403/1.4306; 304H/UNS S30409/1.4948; 309S/UNS S30908/1.4833 309H/UNS S30909; 310S/UNS S31008/1.4845; 310H/UNS S31009; 316/UNS S31600/1.4401; 316Ti/UNS S31635/1.4571; 316H/UNS S31609/1.4436; 316L/UNS S31603/1.4404; 316LN/UNS S31653; 317/UNS S31700; 317L/UNS S31703/1.4438; 321/UNS S32100/1.4541; 321H/UNS S32109; 347/UNS S34700/1.4550; 347H/UNS S34709/1.4912; 348/UNS S34800; |
| Alloy steel |
ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91; ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65; ASTM A420 WPL3/WPL6/WPL9; |
| Duplex steel |
ASTM A182 F51/S31803/1.4462; ASTM A182 F53/S2507/S32750/1.4401; ASTM A182 F55/S32760/1.4501/Zeron 100; 2205/F60/S32205; ASTM A182 F44/S31254/254SMO/1.4547; 17-4PH/S17400/1.4542/SUS630/AISI630; F904L/NO8904/1.4539; 725LN/310MoLN/S31050/1.4466 253MA/S30815/1.4835; |
| Nickel alloy steel |
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN; Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL; Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; Alloy 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Alloy C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Alloy 31/NO8031/1.4562; Alloy 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; Inconel 783/UNS R30783; NAS 254NM/NO8367; Monel 30C Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952 Nimonic 263/NO7263 Nimonic 90/UNS NO7090; Incoloy 907/GH907; Nitronic 60/Alloy 218/UNS S21800 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FOB Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
| Welcome to contact us. | |
| Property | Value | Units |
| Density at 72°F(22℃) |
8.00 0.289 |
g/cm³ Lb/in³ |
| Melting Range | 2450°F-2630°F | 1345℃-1440℃ |
| Thermal Conductivity at 212°F(100℃) |
8.4 14.6 |
BTU/hr·ft·°F W/m·K |
|
Thermal Expansion Coefficient at 68-212°F(20-100℃) |
9.2 16.5 |
μ in/in/°F μ m/m/°C |
|
Thermal Expansion Coefficient at 68-932°F(20-500℃) |
10.1 18.2 |
μ in/in/°F μ m/m/°C |
|
Thermal Expansion Coefficient at 68-1832°F(20-1000℃) |
10.8 19.5 |
μ in/in/°F μ m/m/°C |
Alloy 21alloy exhibits excellent resistance to oxidation and a low rate of scaling in air atmospheres at temperatures up to 1600- 1650°F (870-900°C). The performance of ATI 316LN stainless is slightly inferior to that of ATI 304 stainless steel, which has slightly higher chromium content (18% vs. 16% for ATI 316LN stainless). The rate of oxidation is greatly influenced by the atmosphere en-countered in service and by operating conditions. For this reason, no data can be presented that is applicable to all service conditions.
Like other molybdenum bearing alloys, Alloy31 stainless is subject to catastrophic oxidation at high temperatures in stagnant air atmospheres, such as in the heat treatment of closely packed items. This occurs due to the formation of low melting molybdenum trioxide (MoO3), which reacts with the alloy causing deep pitting and metal loss. When air is allowed to circulate, the MoO3 will evaporate from the metal surface and excessive oxidation is avoided.
