Product Details:
|
| Product Name: | Alloy Steel Flange | Pressure: | 600# |
|---|---|---|---|
| Type: | SW | Material Grade: | N04400 |
| Surface Treatment: | Oil | ||
| High Light: | Connection Nickel Alloy Steel Flange,Welding Socket Weld Flange,N04400 Socket Weld Flange |
||

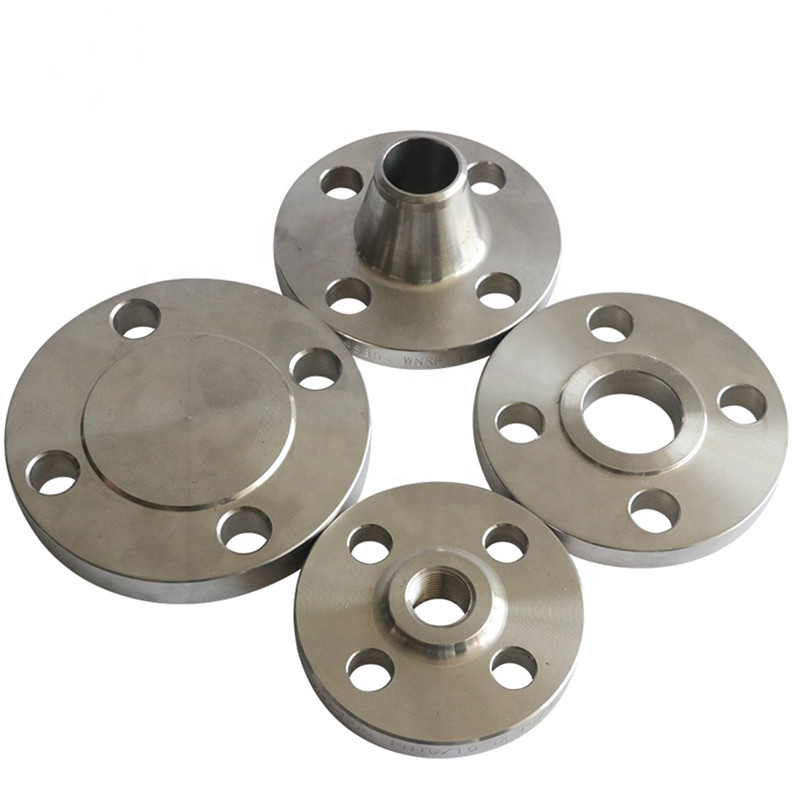

Industry Nickel Alloy Steel Flange Socket Welding N04400 RJ 600# For Connection
Specifications
1.Nickel Alloy Steel flange
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia
Socket welding flange refers to the flange that is inserted into the flange ring step at the end of the pipe and
welded at the end and outside of the pipe. There are two types: with and without neck. The neck tube flange
has good rigidity, small welding deformation and good sealing, and can be used for occasions with pressure
of 1.0~10.0MPa. The B-type flange for the container is also a socket welding flange, which is used in occasions
with high sealing requirements. When designing, socket welding flanges can be checked according to integral flanges.
| ||||||||||||||||||||||||||||||||||||||
Description:Steel Flanges, Weld Neck Flanges / ASTM A 182 Stainless Steel WNRF Flanges
ASTM A 182, GR F1, F11, F22, F5, F9, F9

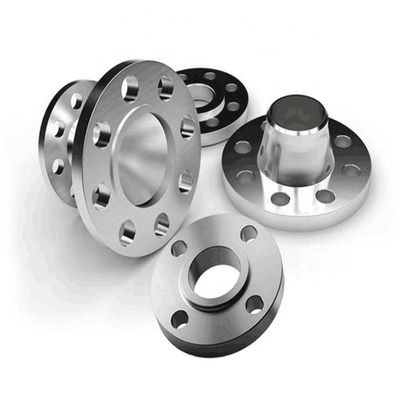

Weld Neck Flanges
Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications.
They have a long tapered hub and are often used for high pressure applications.
We are a fast growing organization, engaged in manufacturing, supply and export of welding neck
flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the
wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller
bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck
flanges, forged flanges are normally used for high-pressure, cold or hot temperature.
Product Range:
WNRF Flanges Size : 1/8" NB TO 48"NB.
WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Stainless Steel WNRF Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex
stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181
Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal
WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628,
DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Value Added Services
Hot Dip Galvanizing , Epoxy Coating.
Test Certificate
Manufacturer Test Certificate as per EN 10204 / 3.1B
