Product Details:
|
| Product Type: | Long Radius Elbow | Product Name: | Stainless Steel Elbow |
|---|---|---|---|
| Material Grade: | UNS32750 | Wall Thickness: | SCH40 |
| Outer Diameter: | 5” | Standard: | ASME B16.9 |
| High Light: | Super Duplex Long Radius Elbow,5inch Long Radius Elbow,UNS32750 Stainless Steel Elbow |
||

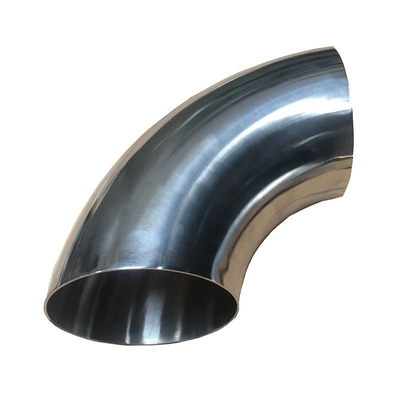

5inch Duplex Stainless Steel 90D Long Radius Elbow UNS S2205 SCH40 ASME B16.9
Specifications
Product: pipe fitting
Types: ELBOW ,Tee ,reducer,stub end
Material:Duplex stainless steel
Product Name:Stainless Butt-welding
Product Description:
1) Types: Elbow 900 , LR/SR, elbow ,Tee ,reducer,stub end
2) Types: ELBOW , Tee ,reducer,stub end
3) Wall thickness: Schedule 5 through XXS
4) Materials: Stainless steel super duplex UNS32750 ,UNS S32760
5) Standards: ANSI, DIN, JIS, ASME, ASTM, MSS and EN
6) Size: 1/2" ~ 48" (DN15mm ~ 1, 200mm)
Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings
| Form | ASTM |
| Rod, bar and shape | A 276, A 484 |
| Plate, sheet and strip | A 240, A 480 |
| Seamless and welded pipe | A 790, A 999 |
| Seamless and welded tubing | A 789, A 1016 |
| Fitting | A 815, A 960 |
| Forged or rolled pipe flange and forged fitting | A 182, A 961 |
| Billet and bar for forging | A 314, A 484 |
Chemical composition
| % | Fe | Cr | Ni | Mo | C | Mn | Si | P | S | Cu | N |
| min | balance | 24.0 | 6.0 | 3.0 | 0.24 | ||||||
| max | 26.0 | 8.0 | 5.0 | 0.030 | 1.20 | 0.80 | 0.035 | 0.020 | 0.50 | 0.32 |
Physical properties
|
Density |
7.75 g/cm3 |
|
Melting range |
1396-1450℃ |
Butt welding elbow is a steel hot press forming or forged elbow, and its connection form is to directly
weld the elbow with the steel pipe.
The main manufacturing standards for butt welding elbows are generally GB/T13401-2005, GB/T12459-2005,
ASME B16.9, SH3409, HG/T21635, HG/T21631, SY/T0510, GB/T10752-1995.
(1) Butt welding elbow is divided into long-radius butt welding elbow and short-radius butt welding elbow
according to its radius of curvature. The radius of curvature of the long-radius butt welding elbow is equal
to 1.5 times the outer diameter of the tube, that is, R = 1.5D. The radius of curvature of the short-radius
butt welding elbow is equal to the outer diameter of the tube, i.e. R=1D. where D is the diameter of the
butt welding elbow and R is the radius of curvature. If there is no special instructions, a 1.5D elbow is
generally selected.
(2) If divided according to the pressure level, there are about seventeen kinds, which are the same as
the American pipe standards, including: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40,
Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS, of which the most commonly
used are STD and XS.
(3) According to the angle of the elbow, there are 45 degrees butt welding elbow, 90 degree butt welding
elbow and 180 degree butt welding elbow and other different angle elbows.
(4) The materials are: carbon steel, alloy steel and stainless steel.
