Product Details:
|
| Product Name: | Socket Welding Flange | Size: | 1/2''-60'' |
|---|---|---|---|
| Material Grade: | UNS S31803 | Standard: | ASME B16.5 |
| Product Type: | SW | Pressure: | 150LB |
| High Light: | UNS S31803 Socket Welding Flange,Duplex Stainless Steel Socket Welding Flange,Socket Welding Alloy Steel Flanges |
||

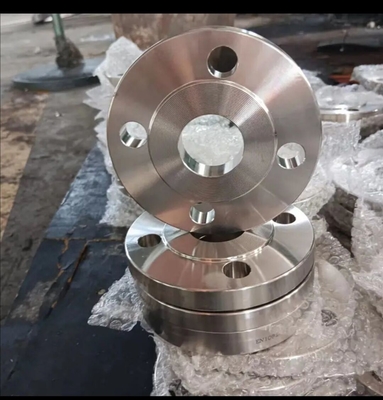

Steel Flanges Duplex Stainless Steel Socket Welding UNS S31803
Specifications
1.Stainless steel flange
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia
| flangeType | Stainless Steel Flanges ASTM A 182, GR F1, F11, F22, F5, F9, F9 WN SO BL JIN ECT |
| Standard | ASME/ANSI B16.5 |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | stainless steel |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |

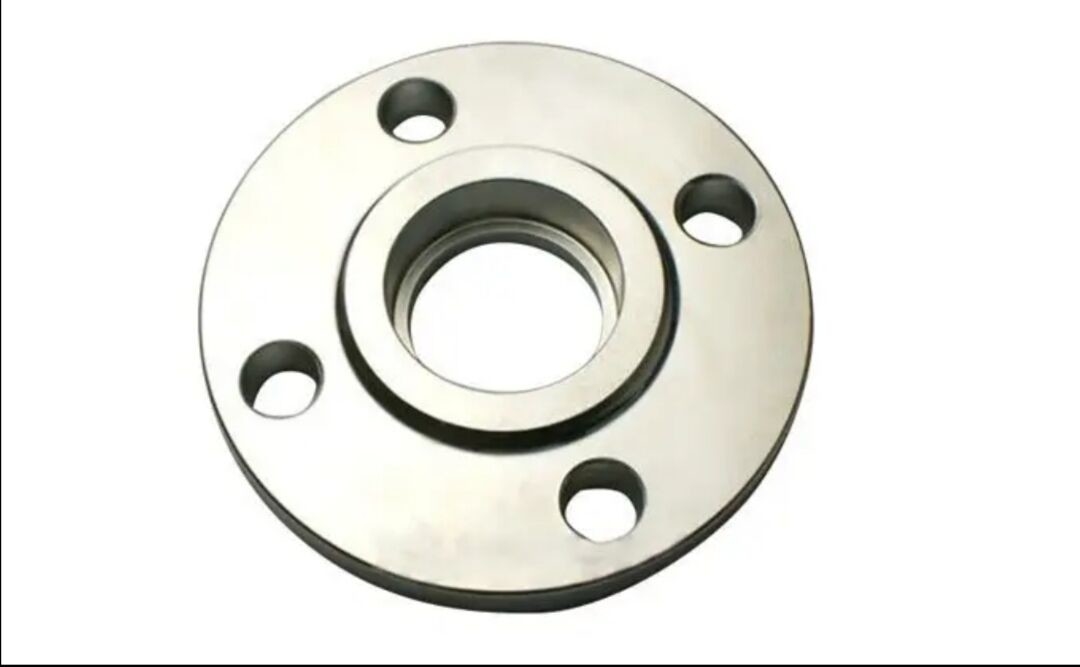

Socket welding flange refers to the pipe end inserted into the flange ring ladder, in the pipe end and outside of the
welding flange. There are two kinds with neck and without neck. The flange with neck has good rigidity, small welding
deformation and good sealing, and can be used in the situation of pressure 1.0 ~ 10.0 mpa. Type B flanges for vessels
also belong to socket welding flanges, which are used for occasions with higher requirements for sealing. The socket welding
flanges can be checked according to integral flanges in design.
Sealing surface: protruding surface (RF) , concave-convex surface (MFM) , tongue and groove surface (TG) , ring joint
surface (RJ-RRB- materiCarbonrSteelteASTMAA105A105,20 Q235Q235,16ASTMAA350ALF1 LLF2 CL1 CL2/CLF3 CL1 CL2/CASTMAA694AF42 FF46 FF48 FF50 FF52 FF56 FF60 FF65 FF70 f70;
Stainless Steel: ASTM A182 F304,304L, F316,316L, 1Cr18Ni9Ti, 0Cr18Ni9Ti, 321,18-8; Alloy Steel: ASTM A182 F1, F5A,
F9, F11, F12, F22, F91, A182F12, A182F11,16MnR, CR5MO, 12Cr1MoV, 15CrMo, 12Cr2Mo1, A335P22, ST45.8/III;
Manufacturing Standards: ANSI B16.5, HG20619-1997, GB/T9117.1-2000-GB/T9117.4-200, HG20597.199 connection
mode: flange nut, Bolt Connection, production process: professional whole forging, forging manufacturing, etc. ,
processing mode: high precision CNC lathe turning, ordinary lathe finishing, argon arc welding and other processing,
application: for pressure vessel of boiler, petroleum, chemical industry, shipbuilding, pharmacy, metallurgy, machinery,
stamping elbow food and other industries, socket welding flange: commonly used in PN ≤10.0 mpa, DN ≤40 pipeline
