Product Details:
|
| Product Name: | Weld Neck Flanges | Size: | 8“ |
|---|---|---|---|
| Material Grade: | Austenitic Stainless | Standard: | ASME B16.5 |
| Class: | 150# | Brand Name:: | Brand Name: |
| Certification:: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED | Place Of Origin:: | China |
| High Light: | 8" WN Flange,SS316L WN Flange,Austenitic Stainless Steel Flange |
||

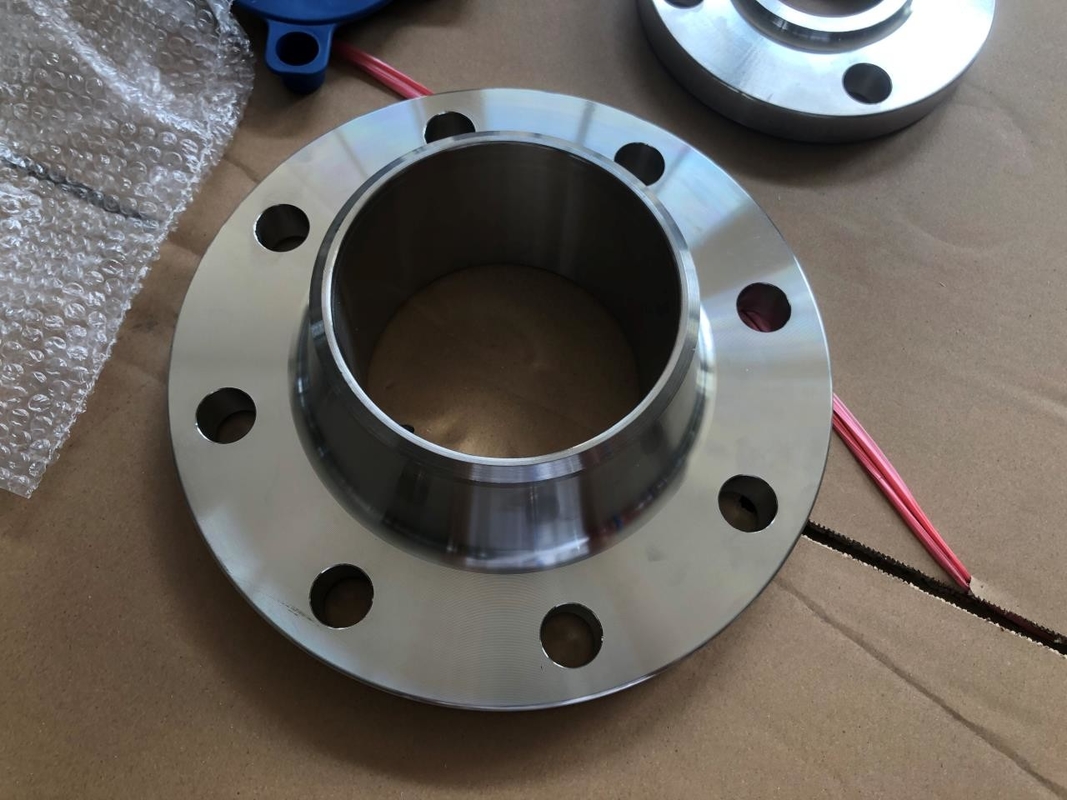

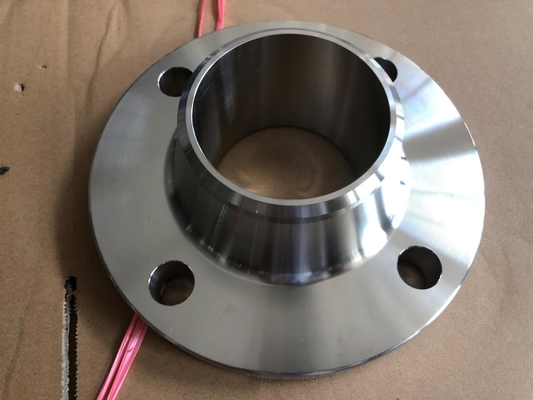

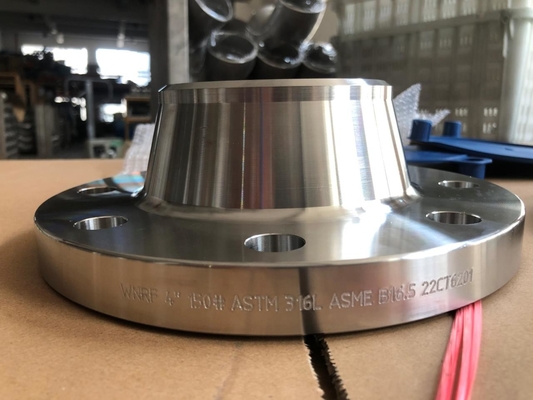

Austenitic stainless 316LWN Flange ASME B16.5 UNS S31603 150# 8" Flanges
| flangeType | Austenitic stainless 316LWN Flange ASME B16.5 UNS S31603 150# 8" Flanges |
| Standard | ASME/ANSI B16.5 |
| Size | 8” |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Austenitic stainless |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 15-20 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Weld Neck Flanges
Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.
We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.
