Product Details:
|
| Type: | Figure 8 Blind Flange | Standard: | ASME B16.5 |
|---|---|---|---|
| Pressure: | 600 | Size: | DN200 |
| Face: | FF | Material: | A182 Grade F347 |
| High Light: | Stainless Figure 8 Blind Flange,Figure 8 Blind Flange Class600,Forged Flanged Steel Pipe Fittings |
||
Stainless Pipe Fittings Figure 8 Blind Flange Class600 DN200 A182 Grade F347 Forged Fittings
| Product Name | Stainless Pipe Fittings Figure 8 Blind Flange Class600 DN200 A182 Grade F347 Forged Fittings |
| Standard | ASTM B16.5 |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | stainless steel |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |

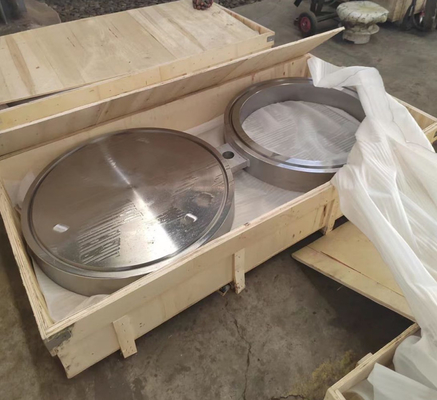

| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.
Flange is also called Flange or Flange plate.A flange is a part that connects a pipe to a pipe and is attached to the end of the pipe.Flange connection or flange joint refers to the detachable connection which is connected by flange, gasket and bolt as a group of assembled sealing structure. Pipe flange refers to the flange with pipe in the pipeline device, and refers to the import and export flange of the equipment when used in the equipment.There are holes in the flange and bolts hold the two flanges together.Gasket seals between flanges.Flanges threaded connection (threaded connection) flanges and welded flanges and clip flanges.Flange material
According to the production of material can be divided into: WCB (carbon steel), LCB (low temperature carbon steel), LC3 (3.5% nickel steel), WC5 (1.25% 0.5% chrome molybdenum steel), WC9 chromium (2.25%), C5 (% 5% chromium molybdenum), C12 (9% 1% chromium molybdenum), CA6NM (4 (12% chromium steel), CA15 (4) (12% chromium), CF8M(316 stainless steel), CF8C(347 stainless steel), CF8(304 stainless steel), CF3(304L stainless steel), CF3M(316L stainless steel), CN7M(alloy steel), M35-1(Monel), N7M(Hastert nickel alloy B), CW6M(Hastert nickel alloy C), CY40(because ofNickel alloy)

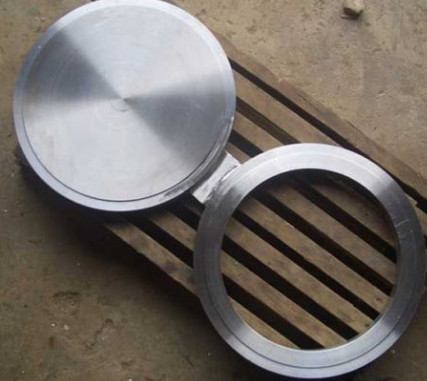

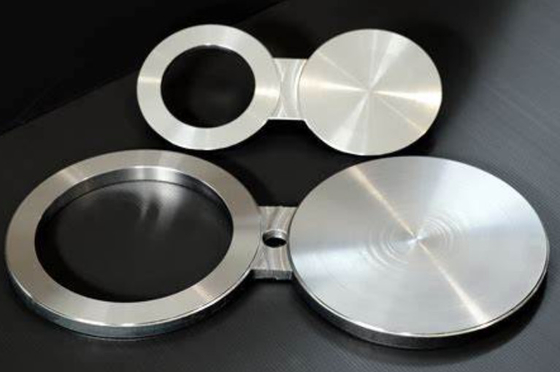

The spectacle blind is a kind of pipe part, which is mainly used to facilitate maintenance. For specific shape, you can paint the upper part of "8" black. It is half blind plate and half iron ring. It is commonly used for pipeline flanges that need to change the process. The materials mainly include carbon steel, stainless steel and alloy, which can be selected according to the pipeline pressure grade and pipeline medium.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
