Product Details:
|
| Product: | Raised Face Blind Flange. | Materials: | UNS N10276 |
|---|---|---|---|
| Pressure: | 900# Or As Required | Standard: | ASME B16.5 |
| Size: | 12 Inch Or As Required | Packing: | Wooden Case |
| High Light: | ASME B16.5 Nickle Alloy Steel Flanges,UNS N10276 Alloy Steel BL Flange |
||

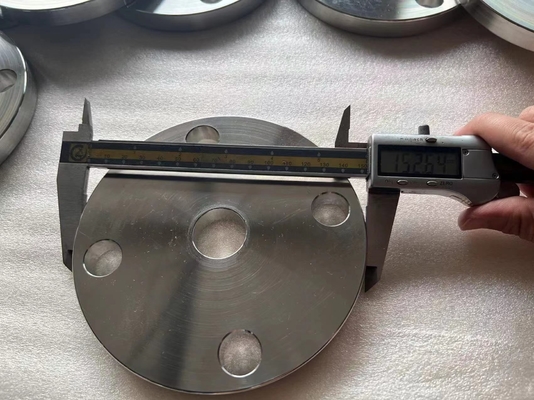

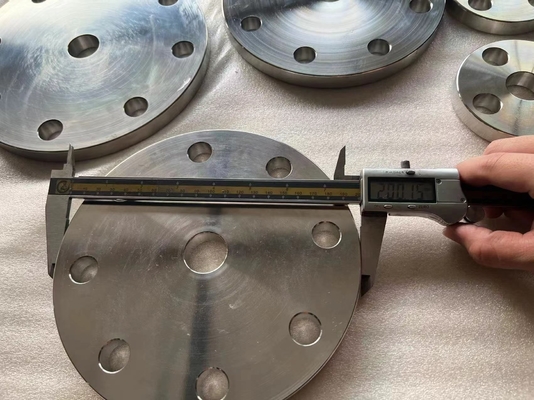

Nickle Alloy Steel Flanges BL Flange RF Hastelloy C276 12" 900# Forged Pipe Fittings
| Product Name | Nickle Alloy Steel Flanges BL Flange RF Hastelloy C276 12" 900# Forged Pipe Fittings |
| Standard | ASME/ANSI B16.5 |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | stainless steel |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Blind flange, real name is blind plate. It is a connection form of flange. In fact, it is a flange without a hole in the middle.
One of its functions is to block the end of the pipeline, and the other is to facilitate the removal of debris in the pipeline during maintenance. In terms of sealing effect, it has the same effect as the head and pipe cap. However, there is no way to disassemble the head, and the flange blind plate is fixed with bolts, which is very convenient to disassemble.
The structure of Monel 400 (UNS N04400, NCu30) is a high-strength single-phase solid solution, which is a corrosion resistant alloy with the largest amount, the most widely used and excellent comprehensive performance. This alloy has excellent corrosion resistance in hydrofluoric acid and fluorine medium, and also has excellent corrosion resistance to hot concentrated alkali solution. At the same time, it is also resistant to corrosion of neutral solution, water, seawater, atmosphere, organic compounds, etc. An important feature of the alloy is that it generally does not produce stress corrosion cracks and has good machinability.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
