Product Details:
|
| Standard: | ASME/ANSI B16.9 | Name: | Lap Joint Stub End |
|---|---|---|---|
| Material: | 904L | Thickness: | SCH80 |
| Size: | 10 Inch Or As Required | Shape: | Round Shape |
| Application: | Connect Pipes | Package: | Plywood Case |
| High Light: | WP904L Alloy Steel Pipe Fittings,Pipe Connection Stub End Fittings,SCH80 Pipe Stub End |
||

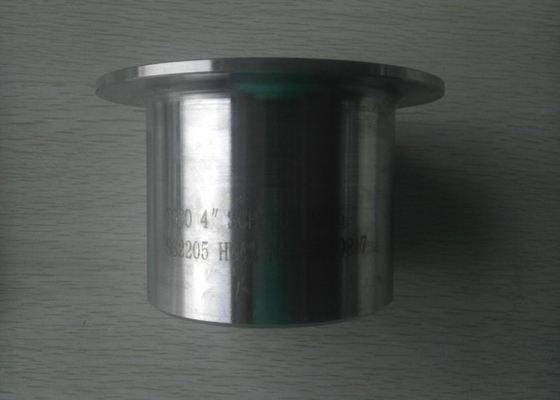

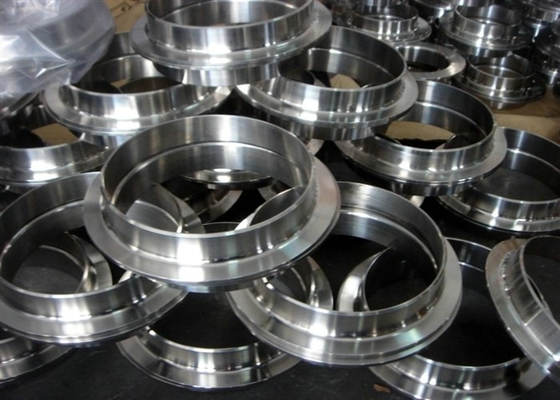

Pipe Fittings Stub End WP904L ASME / ANSI B16.9 10" SCH80 in Pipe Connection
| Type | Pipe Fittings Stub End WP904L ASME / ANSI B16.9 10" SCH80 in Pipe Connection |
| Standard |
ASME/ANSI B16.9 |
| Size | 1/2’’~16’(Seamless);16’’~36’’(Welded) |
| Wall thickness | 2.0-19.0mm |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel |
| Carbon steel | ASTM A234 WPB, WPC; |
| Stainless steel |
304/SUS304/UNS S30400/1.4301 304L/UNS S30403/1.4306; 304H/UNS S30409/1.4948; 309S/UNS S30908/1.4833 309H/UNS S30909; 310S/UNS S31008/1.4845; 310H/UNS S31009; 316/UNS S31600/1.4401; 316Ti/UNS S31635/1.4571; 316H/UNS S31609/1.4436; 316L/UNS S31603/1.4404; 316LN/UNS S31653; 317/UNS S31700; 317L/UNS S31703/1.4438; 321/UNS S32100/1.4541; 321H/UNS S32109; 347/UNS S34700/1.4550; 347H/UNS S34709/1.4912; 348/UNS S34800; |
| Alloy steel |
ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91; ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65; ASTM A420 WPL3/WPL6/WPL9; |
| Duplex steel |
ASTM A182 F51/S31803/1.4462; ASTM A182 F53/S2507/S32750/1.4401; ASTM A182 F55/S32760/1.4501/Zeron 100; 2205/F60/S32205; ASTM A182 F44/S31254/254SMO/1.4547; 17-4PH/S17400/1.4542/SUS630/AISI630; F904L/NO8904/1.4539; 725LN/310MoLN/S31050/1.4466 253MA/S30815/1.4835; |
| Nickel alloy steel |
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN; Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL; Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; Alloy 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Alloy C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Alloy 31/NO8031/1.4562; Alloy 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; Inconel 783/UNS R30783; NAS 254NM/NO8367; Monel 30C Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952 Nimonic 263/NO7263 Nimonic 90/UNS NO7090; Incoloy 907/GH907; Nitronic 60/Alloy 218/UNS S21800 |

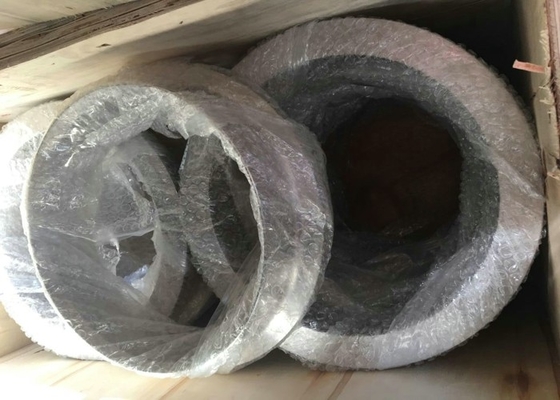

| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FOB Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Flanging refers to the forming method of forming a straight wall or flange with a certain angle along the closed or unclosed curve edge on the plane part or curved surface part of the blank by using the function of the mold. Flanging is a kind of stamping process. There are many kinds of flanging and different classification methods. According to the deformation properties, it can be divided into elongation type flanging and compression type flanging.
904L (N08904, 14539) super austenitic stainless steel contains 14.0-18.0% chromium, 24.0-26.0% nickel and 4.5% molybdenum. 904L super austenitic stainless steel is a low-carbon, high nickel, molybdenum austenitic stainless and acid resistant steel. It is a proprietary material imported from H · s company of France. It has good activation passivation conversion ability, excellent corrosion resistance, good corrosion resistance in non oxidizing acids such as sulfuric acid, acetic acid, formic acid and phosphoric acid, good pitting resistance in neutral chloride ion containing medium, and good resistance to crevice corrosion and stress corrosion. It is applicable to various concentrations of sulfuric acid below 70 ℃. It is resistant to acetic acid of any concentration and temperature under normal pressure, and has good corrosion resistance in the mixed acid of formic acid and acetic acid.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you want to get more information of the products, send me e-mail or by skype, whatsapp etc.
.
If any questions,you can call me mobile phone at any times:0086-15710108231
Tel: 13524668060
