Product Details:
|
| Standard: | ASTM A815 | Name: | Stub End |
|---|---|---|---|
| Material: | UNS 31803 | Thickness: | SCH80 |
| Size: | 10 Inch Or As Required | Packing: | Standard Packing |
| Shape: | Round Shape | Connection: | Welding |
| High Light: | Lap Joint Butt Weld End,Butt Weld End Pipe Fittings,SCH80 Lap Joint Stub End |
||

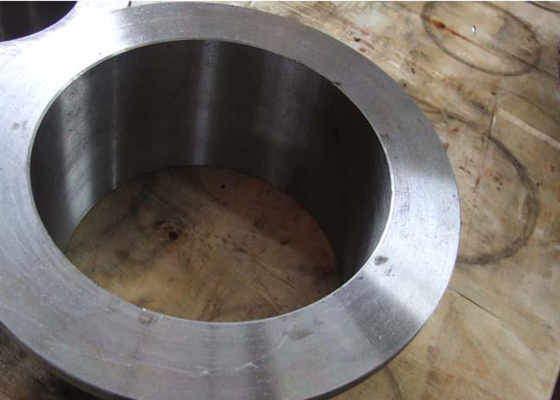

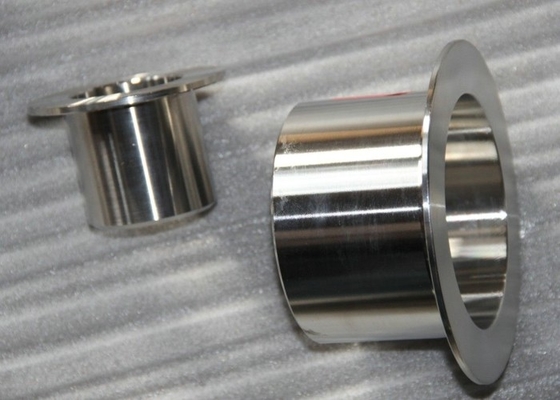

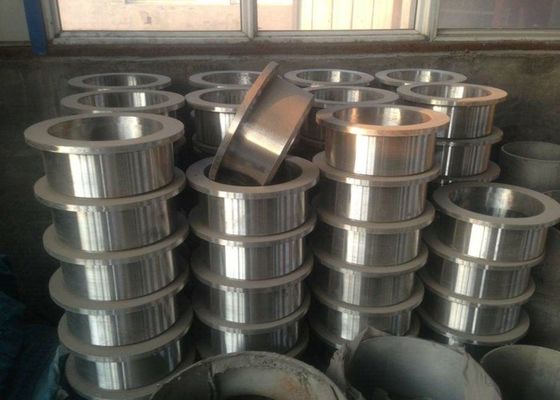

Pipe Fittings ASTM A815 UNS 31803 10” SCH80 Lap Joint Stub End Butt Weld End
| Type | Pipe Fittings ASTM A815 UNS 31803 10” SCH80 Lap Joint Stub End Butt Weld End |
| Standard | MSS SP-43 |
| Size | 1/2’’~16’(Seamless);16’’~36’’(Welded) |
| Wall thickness | 2.0-19.0mm |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel |
| Carbon steel | ASTM A234 WPB, WPC; |
| Stainless steel |
304/SUS304/UNS S30400/1.4301 304L/UNS S30403/1.4306; 304H/UNS S30409/1.4948; 309S/UNS S30908/1.4833 309H/UNS S30909; 310S/UNS S31008/1.4845; 310H/UNS S31009; 316/UNS S31600/1.4401; 316Ti/UNS S31635/1.4571; 316H/UNS S31609/1.4436; 316L/UNS S31603/1.4404; 316LN/UNS S31653; 317/UNS S31700; 317L/UNS S31703/1.4438; 321/UNS S32100/1.4541; 321H/UNS S32109; 347/UNS S34700/1.4550; 347H/UNS S34709/1.4912; 348/UNS S34800; |
| Alloy steel |
ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91; ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65; ASTM A420 WPL3/WPL6/WPL9; |
| Duplex steel |
ASTM A182 F51/S31803/1.4462; ASTM A182 F53/S2507/S32750/1.4401; ASTM A182 F55/S32760/1.4501/Zeron 100; 2205/F60/S32205; ASTM A182 F44/S31254/254SMO/1.4547; 17-4PH/S17400/1.4542/SUS630/AISI630; F904L/NO8904/1.4539; 725LN/310MoLN/S31050/1.4466 253MA/S30815/1.4835; |
| Nickel alloy steel |
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN; Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL; Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; Alloy 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Alloy C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Alloy 31/NO8031/1.4562; Alloy 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; Inconel 783/UNS R30783; NAS 254NM/NO8367; Monel 30C Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952 Nimonic 263/NO7263 Nimonic 90/UNS NO7090; Incoloy 907/GH907; Nitronic 60/Alloy 218/UNS S21800 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FOB Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Flanging refers to the forming method of forming a straight wall or flange with a certain angle along the closed or unclosed curve edge on the plane part or curved surface part of the blank by using the function of the mold. Flanging is a kind of stamping process. There are many kinds of flanging and different classification methods. According to the deformation properties, it can be divided into elongation type flanging and compression type flanging.
UNS S31803 is a medium alloy duplex stainless steel with prEN value of 32-33. Its corrosion resistance is between AISI 316L and 6% Mo + n austenitic stainless steel.
Dual phase steel is composed of martensite, austenite or bainite and ferrite matrix. It is obtained from low carbon steel or low alloy high-strength steel after critical zone heat treatment or controlled rolling. The typical yield strength of dual phase steel σ S is 310mpa, tensile strength σ B is 655mpa. Dual phase steel is used to manufacture complex components formed by cold punching and deep drawing, and also can be used as pipeline steel, chain, cold drawn steel wire, prestressed steel bar, etc.
