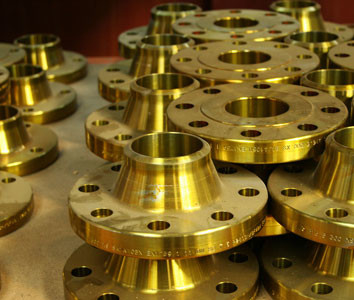

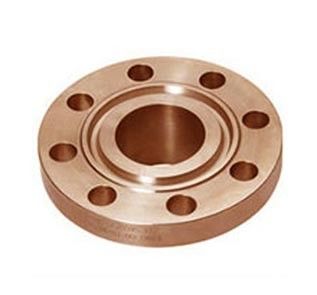

Product Details:
|
| Grade: | C71500 | Alloy Or Not: | Is Alloy |
|---|---|---|---|
| Price Term: | CIF CFR FOB Ex-Work, CIF, CFR, FOB, CNF | Material: | 70/30 Copper Nickel Alloy C70600 |
| Size: | 1/2"-36" | Wall Thickness: | SCH,10,20,30,40,80,120,160,STD,XS,XXS |
| High Light: | ASTM B61 Steel Pipe Flange,Steel Pipe Weld Neck Flange,Rf Neck Nickel Alloy Flange |
||
| Specifications | ASTM B61, B62, B151, B152 / ASME SB61, SB62, SB151, SB152 |
| Standards | ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size | 1/2" 36" |
| Pressure Ratings | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Grade | UNS NO. C92200 & UNS NO. C83600, UNS NO. C70600 ( CU -NI- 90/10), C71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C10100, C10200, C10300, C10800, C12000, C12200. |
| Flanges Types | Expander Flanges, Forged Flanges, Blind Flanges, Reducing Flanges, Orifice Flanges, Socket Weld Flanges, Slip On Flanges, Flat Flanges, Lapped Joint Flanges, High Hub Blinds Flanges, Nipo Flanges, Threaded Flanges, Square Flanges, Long Neck Weld Flanges, RTJ Flanges etc |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Copper Nickel 90/10 | 2.0872 | C70600 |
| Copper Nickel 70/30 | 2.0882 | C71500 |
| Grade | Cu | Pb | Mn | Fe | Zn | Ni |
|---|---|---|---|---|---|---|
| Cupro Nickel 90/10 | 88.6 min | .05 max | 1.0 max | 1.8 max | 1 max | 9-11 max |
| Cupro Nickel 70/30 | 65.0 min | .05 max | 1 max | 0.4-1.0 | 1 max | 29-33 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Cu-Ni 90/10 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| Cu-Ni 70/30 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
