Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300#

Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300#
Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300# Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300# Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300#

Large Image :  Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300#

Product Details:
Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Weld-neck Flange
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Depending on quantity
Packaging Details: Standard export sea-worthy packing
Delivery Time: 15-30 working days depending on quantity
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3,0000pcs per month

Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300#

Description
Material: Alloy Steel Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot Dipped Galvanized.
Type: WN Forged Flange Standard: ANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
Size: 1/2-78 Inch (DN15-DN2000) Packing: No Fumigate Or Fumigate Plywood/Wood Pallet Or Case
Pressure: ANSI Class 150,300,600,1500,2500, DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160 Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects Etc.
High Light:

Nickel Alloy Weld Neck Flanges

,

Metal Weld Neck Flange 15"

,

Stainless Steel WN Flange

Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM/UNS N08800 15" Class 300#

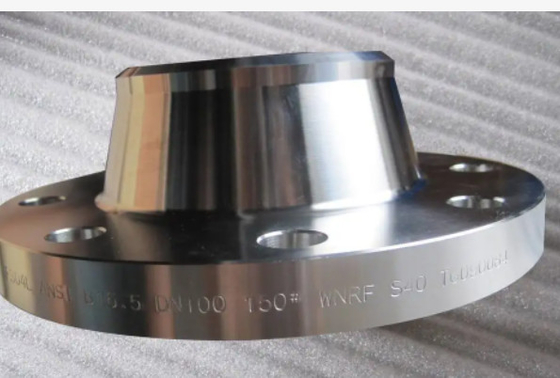

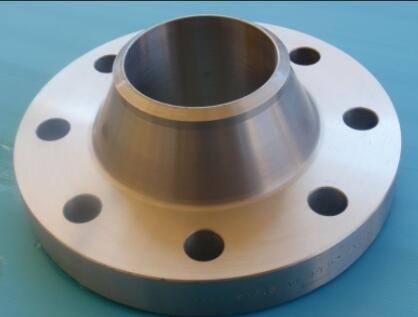

Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.

We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.

Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300# 0

Flange is also called Flange or Flange plate.A flange is a part that connects a pipe to a pipe and is attached to the end of the pipe.Flange connection or flange joint refers to the detachable connection which is connected by flange, gasket and bolt as a group of assembled sealing structure. Pipe flange refers to the flange with pipe in the pipeline device, and refers to the import and export flange of the equipment when used in the equipment.There are holes in the flange and bolts hold the two flanges together.Gasket seals between flanges.Flanges threaded connection (threaded connection) flanges and welded flanges and clip flanges.Flange material
According to the production of material can be divided into: WCB (carbon steel), LCB (low temperature carbon steel), LC3 (3.5% nickel steel), WC5 (1.25% 0.5% chrome molybdenum steel), WC9 chromium (2.25%), C5 (% 5% chromium molybdenum), C12 (9% 1% chromium molybdenum), CA6NM (4 (12% chromium steel), CA15 (4) (12% chromium), CF8M(316 stainless steel), CF8C(347 stainless steel), CF8(304 stainless steel), CF3(304L stainless steel), CF3M(316L stainless steel), CN7M(alloy steel), M35-1(Monel), N7M(Hastert nickel alloy B), CW6M(Hastert nickel alloy C), CY40(because ofNickel alloy)



Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement
Brand TOBO
Certificates API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Advantages 1. Abundant stock and prompt delivery
2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.
4. More than 150 customers spread worldwide.
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FCA Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.





N08800 features

1. High temperature strength

2. High creep breaking strength

3. Resistance to oxidation and Carburization in high temperature environment

4. Good corrosion resistance in many acidic environments

5. Good tolerance to many sulfur-containing atmospheres





Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300# 1

Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300# 2Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300# 3

Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300# 4Stainless Steel Flange Weld Neck Nickel Alloy Metal Flange ASTM / UNS N08800 15" Class 300# 5





Q1: Are you trading company or manufacturer ?



A: We are factory.



Q2: How long is the delivery ?



A: 15-30 working days



Q3: Do you provide samples ? is it free or extra ?



A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



If you want to get more information of the products, send me e-mail or by skype, whatsapp etc.

.



If any questions,you can call me mobile phone at any times:0086-15710108231
