Product Details:
|
| Material: | UNS S31803 | Standard: | DIN,ANSI,BS,ASTM,BSP |
|---|---|---|---|
| Surface Treatment: | Galvanized | Packing: | Palletsor As The Customers Requirements |
| Type: | TH Flange | Application: | Connect Pipes,gas,Oil,Water,Industry |
| High Light: | Galvanized Pipe Fitting Flange,SCH STD Threaded Flange,Alloy Steel Pipe Threaded Flange |
||
FLG-2-S10S-600-F51 - FLANGE 2" , TH,SCH STD CL 600, B 16.5 A 182 F 51
| Flange Type | FLG-2-S10S-600-F51 - FLANGE 2" , BL,SCH STD , CL 600, B 16.5 A 182 F 51 |
| Standard | ASTM/UNS |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Alloy |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
v

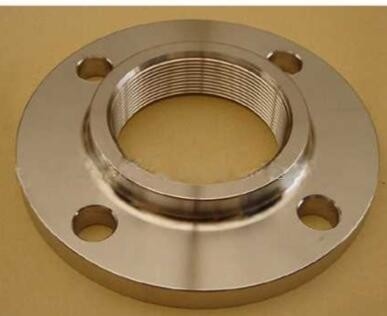

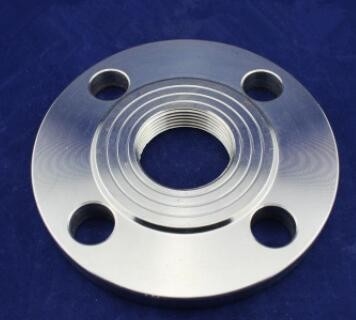

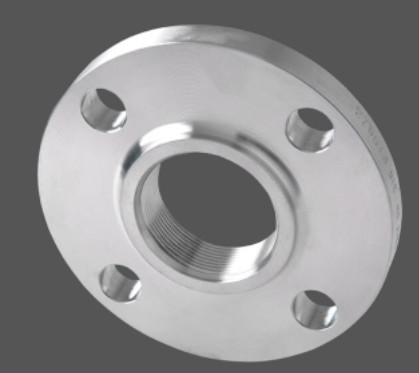

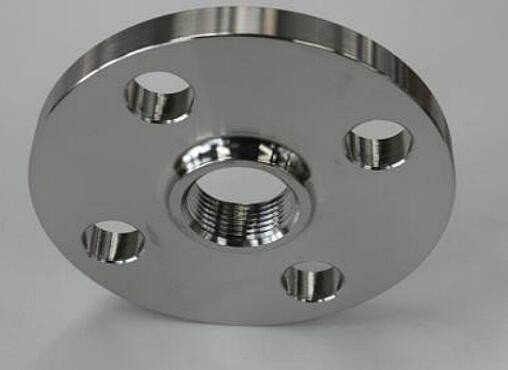

Introduction to BLFlange
Threaded flange refers to a kind of flange connected with pipeline by thread. In design, it can be treated as loose flange. The utility model has the advantages that welding is not required, and the additional torque to the cylinder or pipeline caused by flange deformation is very small. The disadvantage is that the flange thickness is large and the cost is high. It is applicable to the connection of high-pressure pipeline.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you want to get more information of the products, send me e-mail or by skype, whatsapp etc.
.
If any questions,you can call me mobile phone at any times:0086-15710108231
Tel: 13524668060
