Product Details:
|
| Material: | UNS S31803 | Standard: | DIN,ANSI,BS,ASTM,BSP |
|---|---|---|---|
| Surface Treatment: | Galvanized | Packing: | Palletsor As The Customers Requirements |
| Type: | WNRF | Application: | Connect Pipes,gas,Oil,Water,Industry |
| High Light: | ANSI B16.5 Pipe Blind Flange,Cast Butt Weld Flange,Neck Flat Steel Pipe Flange |
||

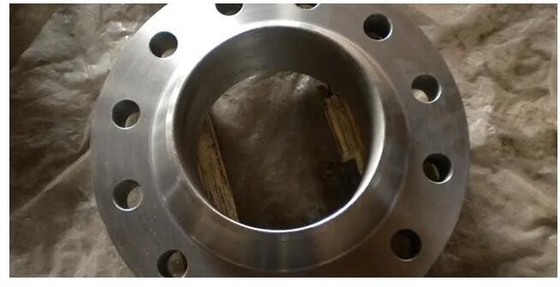

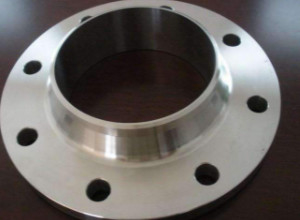

FLG-8-S40-600-F51 - FLANGE 8", WNRF, SCH 40S, CL 600, B 16.5 A 182 F 51
| Flange Type | FLG-8-S40-600-F51 - FLANGE 8", WNRF, SCH 40S, CL 600, B 16.5 A 182 F 51 |
| Standard | ASTM/UNS |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Alloy |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
v
Introduction to WN Flange
The full name of the neck flat welding flange is the neck flat welding steel pipe flange. It is a flange that extends the steel pipe and pipe fittings into the flange and connects with the equipment or pipeline through fillet welds.
function
Like the plate type flat welding flange, the neck flat welding flange is also a flange that extends the steel pipe and pipe fittings into the flange and connects with the equipment or pipeline through fillet weld.
Sealing form
The sealing surface forms of flat welding flange with neck are:
Raised surface (RF), concave surface (FM), convex surface (m), tenon surface (T), groove surface (g), full plane (FF).
Compared with austenitic stainless steel, F51 duplex stainless steel has twice the compressive strength. Compared with 316L and 317L, the designer can reduce its weight. F51 duplex stainless steel is especially suitable for the temperature range of - 50 ° f / + 600 ° F. it can also be used for lower temperatures under strict restrictions (especially for welded structures).
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
