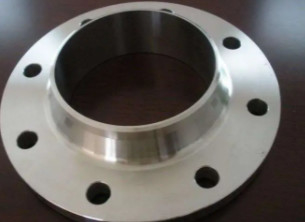

FLG-4-S40-600-F51 - FLANGE 4", WNRF, SCH 40S, CL 600, B 16.5 A 182 F 51
| Flange Type |
FLG-4-S40-600-F51 - FLANGE 4", WNRF, SCH 40S, CL 600, B 16.5 A 182 F 51 |
| Standard |
ASTM/UNS |
| Size |
1/2’’~60’’ |
| Pressure Rate |
150lb to 2500lb |
| Manufacturing process |
Push, Press, Forge, Cast, etc. |
| Material |
Alloy |
| Carbon steel |
ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51
ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8
|
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L
ASTM A182 F316/316H/316L
ASTM A182 F321/321H
ASTM A182 F347/347H
|
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard |
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10 |

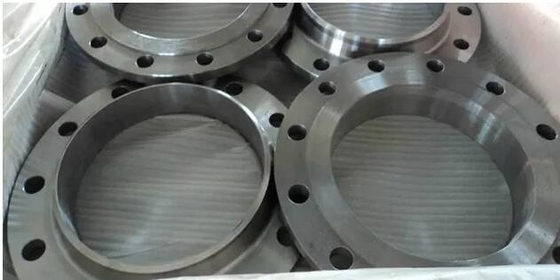

| Package |
Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ |
1pcs |
| Delivery time |
10-100 days depending on quantity |
| Payment terms |
T/T or Western Union or LC |
| Shipment |
FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application |
Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks |
Other materials and drawings are available. |
v
Introduction to WN Flange
The full name of the neck flat welding flange is the neck flat welding steel pipe flange. It is a flange that extends the steel pipe and pipe fittings into the flange and connects with the equipment or pipeline through fillet welds.
function
Like the plate type flat welding flange, the neck flat welding flange is also a flange that extends the steel pipe and pipe fittings into the flange and connects with the equipment or pipeline through fillet weld.
Sealing form
The sealing surface forms of flat welding flange with neck are:
Raised surface (RF), concave surface (FM), convex surface (m), tenon surface (T), groove surface (g), full plane (FF).
A182 F51 is a duplex stainless steel composed of 21% chromium, 2.5% molybdenum and 4.5% nickel nitrogen alloy. It has high strength, good impact toughness and good overall and local stress corrosion resistance. The yield strength of duplex stainless steel is twice that of austenitic stainless steel. This feature enables designers to reduce the weight when designing products, making this alloy more cost-effective than 316317l. This alloy is particularly suitable for the temperature range of - 50 ° f / + 600 ° F. For applications beyond this temperature range, this alloy can also be considered, but there are some limitations, especially for welded structures.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
