Product Details:
|
| Material: | UNS S31803 | Standard: | DIN,ANSI,BS,ASTM,BSP |
|---|---|---|---|
| Surface Treatment: | Galvanized | Packing: | Palletsor As The Customers Requirements |
| Type: | 45 Degree Butt Welding Elbow | Application: | Connect Pipes,gas,Oil,Water,Industry |
| High Light: | Alloy Pancake Blind Flange,Galvanized Blind Plate Flange,Monel 400 Blind Plate Flange |
||

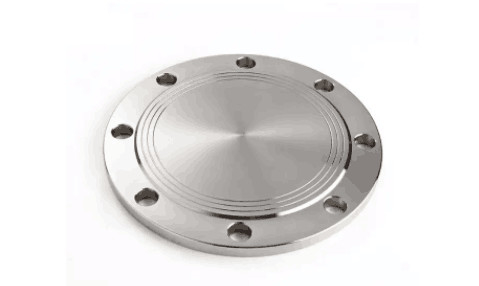

BLFLG-3/4-600-F51 - BLIND FLANGE 3/4", BLRF,CL 600, B 16.5, A 182 F 51
| Flange Type | BLFLG-3/4-600-F51 - BLIND FLANGE 3/4", BLRF,CL 600, B 16.5, A 182 F 51 |
| Standard | ASTM/UNS |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Alloy |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
v

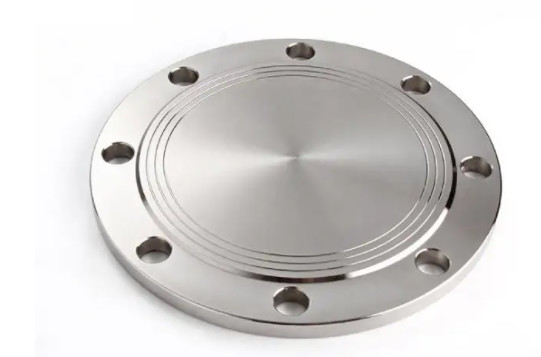

Introduction to BL Flange
Flange blind plate, also known as blind flange, its real name is blind plate. It is a connection form of flange. It's actually a flange without a hole in the middle.
One of its functions is to block the end of the pipeline, and the other is to facilitate the removal of sundries in the pipeline during maintenance. In terms of sealing effect, it has the same effect as head and pipe cap. However, there is no way to disassemble the head, and the flange blind plate is fixed with bolts, which is very convenient for disassembly. Flange blind plates are made of carbon steel, alloy steel, stainless steel, plastic and so on
International name:UNS S32205,UNS S32205,NAS 329J3L,F51,W.-Nr. 1.4462,00Cr22Ni5Mo3N
Executive standard:ASTM A240/ASME SA-240,ASTM A276,ASTM A182/ASME SA-182,ASTM A312/ASMES A312
Main components: carbon (c) ≤ 0.03, manganese (MN) ≤ 1.2, nickel (Ni) 6.0 ~ 8.0, silicon (SI) ≤ 0.8, chromium (CR) 24.0 ~ 26.0, copper (Cu) ≤ 0.5, molybdenum (MO) 3.0 ~ 5.0, nitrogen (n) 0.24 ~ 0.0
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
