Product Details:
|
Material: | ASTM/UNS N06600 | Head Code: | Round |
---|---|---|---|
Type: | Cap | Usage: | Oil Gas Water Industrial,oil |
Connection: | Welding | Package: | Box,plywood Case,pallet,etc,cartons |
Butt Welding Cap OD:8" SCH-20 Alloy 600 ASTM/UNS N06600
Butt Welding Cap OD:8" SCH-20 Alloy 600 ASTM/UNS N06600 | ||
MATERIAL | Carbon Steel : | |
ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn, | ||
DIN St37, St45.8, St52.4,St.35.8,St.35.8. | ||
Stainless Steel: | ||
1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti | ||
00Cr17Ni14Mo2 304 304L 316 316L | ||
Alloy Steel: | ||
16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1, | ||
A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70 | ||
STANDARD | ASTM / JIS / DIN / BS / GB/GOST | |
MODEL | 1.Tee(Straight ) | |
2.Tee(Reducing) | ||
TYPE | Seam Or Seamless | |
SURFACE | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize | |
WALL THICKNESS | SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60, | |
SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM | ||
SIZE | 1/2"-48"(Dn15-Dn1200) | |
CONNECTION | Welding | |
SHAPE | Equal, Reducing | |
CERTIFICATE | ISO9001 SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED | |
APPLICATION | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc | |
RELATED PRODUCTS | 1. Carbon steel nipples and sockets | 2. Flanges |
3. Malleable iron pipe fittings | 4. Pipes | |
5. High-pressure fittings | 6. Valves | |
7. P.T.F.E .thread seal tape | 8. Brass fittings | |
9. Ductile iron pipe fittings | 10. Copper fittings | |
11. Sanitary fittings, etc,. | 12. Grooved fittings | |
Customers’ drawings or designs are available. | ||
PACKAGE | 1> 1/2" - 2" in cartons. | |
2>Above 2" in wooden cases. | ||
Big size is workable by pallets. | ||
DELIVERY DETAILS | According to the quantities and specifications of each order. | |
Normal delivery time is from 15 to 30working days after receiving the deposit. |
Introduction

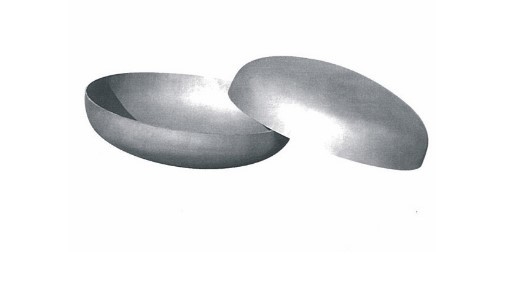

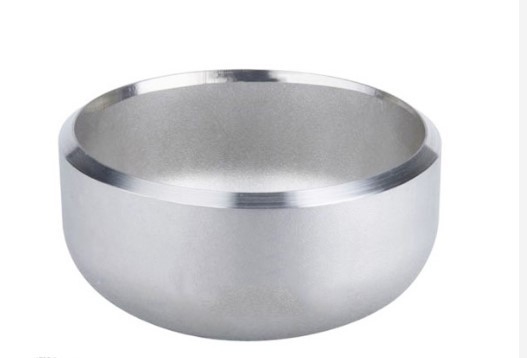

Butt welded pipe cap is a pipe fitting welded to the end of the steel pipe to cover and plug the pipe. It is used to close the pipeline, and its function is the same as that of pipe plug and plug. The appearance of butt welded pipe cap is various, mainly including convex, conical shell, reducing section, flat cover and tight mouth
Overview and features:Alloy K-600
UNS n06600 alloy has corrosion resistance to various corrosive media. The composition of chromium makes the alloy have better corrosion resistance than nickel 99.2 (alloy 200) and nickel 99.2 (alloy 201, low carbon) under oxidation conditions. At the same time, the high nickel content makes the alloy have good corrosion resistance under reducing conditions and alkaline solution, and can effectively prevent chloride iron stress corrosion cracking. Alloy 600 has good corrosion resistance in organic acids such as acetic acid, acetic acid, formic acid and stearic acid, and medium corrosion resistance in inorganic acids. High purity water used in primary and secondary recycling in nuclear reactors has excellent corrosion resistance. The outstanding performance of 600 is that it can resist the corrosion of dry chlorine and hydrogen chloride, and the application temperature is 650 ℃. At high temperature, the alloys as annealed and solution treated have good anti-oxidation spalling properties and high strength in air. The alloy can also resist ammonia, nitriding and carburizing atmosphere, but when the redox conditions change alternately, the alloy will be corroded by some oxidizing media
application area
1. Production of organic or inorganic chlorides and fluorides: resistance to chlorine and fluorine corrosion
2. Nuclear reactor
8. Curved neck bottles and parts in heat treatment furnace, especially in carbonization and nitriding atmosphere
4. Alloy 600 is recommended to be used in the application of catalytic regenerator in petrochemical production above 700 ℃ to obtain a long service life
