Product Details:
|
Material: | Alloy Steel | Connection: | Welding |
---|---|---|---|
Head Code: | Round | Type: | Elbow |
Application: | Connect Pipes | Usage: | Oil Gas Water Industrial,oil |

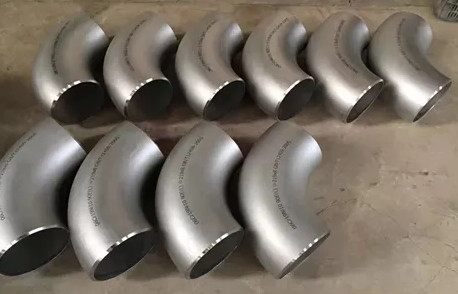

Seamless Butt Welding 90° Length Radius Elbow ASTM C70600 12” SCH10
Product Name | Seamless Butt Welding 90° Length Radius Elbow ASTM C70600 12”SCH10 | |
Certification | /BV/ABS/LR/TUV/DNV/BIS/API/PED | |
Material |
ASTM |
Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
||
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
DIN |
Carbon steel:St37.0,St35.8,St45.8 | |
Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
JIS |
Carbon steel:PG370,PT410 | |
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
|
Standard Specification | ASTM,JIS,BS,DIN,UNI etc. | |
Qualification | ISO9001, API,CE | |
Equipment | Pushing Machine,Beveling Machine,Sand Blasting Machine | |
Pressure | Sch5--Sch160,XXS | |
Standard | ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2 | |
Minimum Order Quantity | 1pcs | |
Supply Ability | 3,0000pcs per month | |
Price | Depending on quantity | |
Supply Ability | 3,0000pcs per month | |
Packing | PLY-wooden case or pallet or as for clients' requirements | |
Application | Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, | |
Advantages |
1. 32 + years of production experience at your service. 2. The fastest delivery 3. The lowest price 4. Most comprehensive standards and materials for your choice. 5. 100% export. 6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc. |
Introduction
Elbow is a commonly used connecting pipe fitting in plumbing installation. It is used for the connection at the bend of the pipeline and to change the direction of the pipeline.
Other names: 90 ° elbow, right angle bend, love bend, stamping elbow, pressing elbow, machine-made elbow, welding elbow, etc.
That is, all pipe fittings shall be subject to surface treatment, and the iron oxide scale on the internal and external surfaces shall be sprayed off by shot peening, and then coated with anti-corrosion paint. This is for export needs. Moreover, in China, it is also to facilitate transportation and prevent corrosion and oxidation.
Alloy is a kind of material with advancing characteristics formed by the fusion of metal elements and one or several other elements (metal or non-metal). The most basic and independent material that constitutes an alloy is called component, which is abbreviated as element. In most cases, components are the elements that make up the alloy. However, some use compounds as components, provided that the compounds do not decompose or undergo any chemical reaction within the scope of the study. According to the number of components, it can be divided into binary alloy, ternary alloy or multicomponent alloy. For example, simple brass is a binary alloy composed of copper and zinc; Duralumin is a ternary alloy composed of aluminum, copper and magnesium.
purpose
Among copper alloys, white copper is widely used as corrosion-resistant structural parts in shipbuilding, petroleum, chemical industry, construction, electric power, precision instruments, medical instruments, musical instruments and other departments because of its excellent corrosion resistance and easy molding, processing and welding. Some white copper also has special electrical properties, which can be used to make resistance elements, thermocouple materials and compensation wires. Non industrial white copper is mainly used to make decorative crafts.
